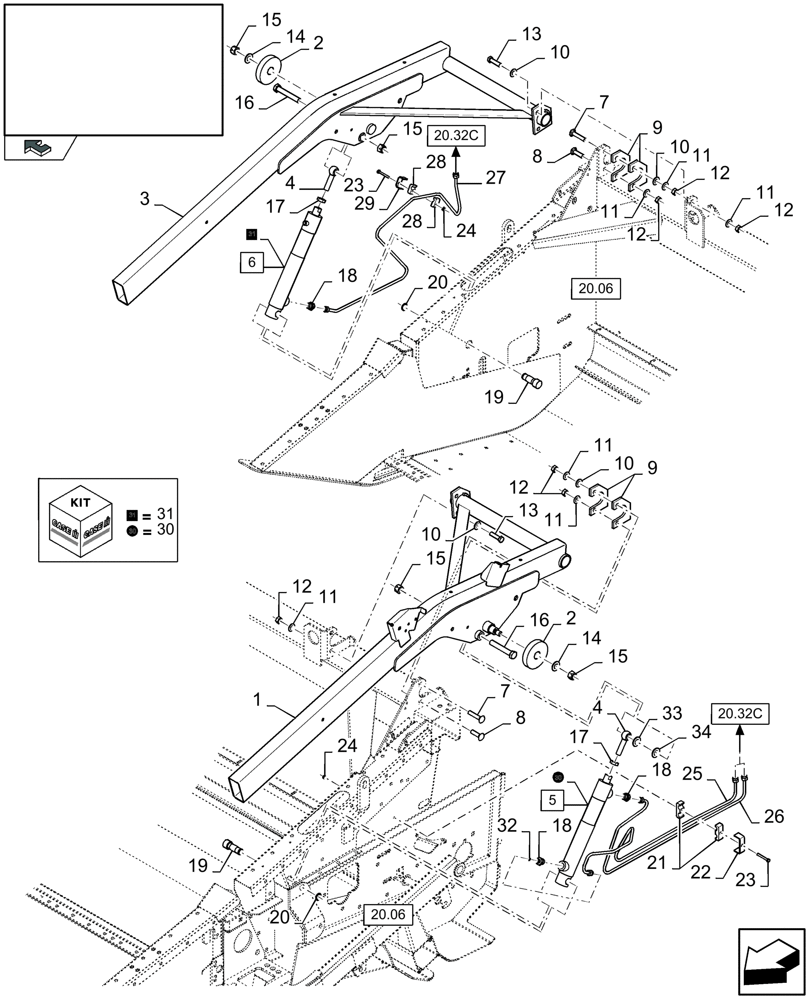

Запчасти Case IH 2050 (20.32B[01]) - REEL SUPPORTS AND HYDRAULIC VERTICAL ADJUSTMENT - D910 (20) - HEADER

1

87732002

ARM

1шт.

2

87610420

ROLLER

, Serial Range: -C917

2шт.

2

84164127

ROLLER,100mm OD x 20mm L

, Start Serial: D918

2шт.

3

87732001

ARM

1шт.

4

447598

EYEBOLT,M16

2шт.

5

84041996

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 275mm Stroke

(30) LH, REEL VERTICAL ADJUSTMENT

1шт.

6

84041997

HYDRAULIC CYLINDER,32mm Rod, 275mm Stroke

(31) RH, REEL VERTICAL ADJUSTMENT

1шт.

7

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

8

334966

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

2шт.

9

84435543

PLATE

4шт.

10

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

6шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

12

9706685

NUT,M12 x 1.75, Cl 8

8шт.

13

120080

BOLT,Hex, M12 x 45, 8.8

4шт.

14

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

15

86000441

NUT,M16 x 2.0, Cl 8

4шт.

16

120248

BOLT,Hex, M16 x 100, 8.8, Full Thd

, Serial Range: -C951

2шт.

16

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

, Start Serial: D952

2шт.

17

100095

THIN NUT,Thin, M16 x 2, Cl 04

2шт.

18

386215

HYD CONNECTOR

3шт.

19

87316106

PIN

2шт.

20

370024

CIRCLIP,M20, Ext

2шт.

21

430356

CLAMP

2шт.

22

84814948

SUPPORT

1шт.

23

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

, Serial Range: -C949

2шт.

23

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

, Start Serial: D950

2шт.

24

353308

NUT,M6 x 1.0, Cl 8

2шт.

25

84458375

HYD TUBE,8 mm DIA x 702 mm L

1шт.

26

87494557

HYD TUBE

1шт.

27

84458379

HYD TUBE,8 mm DIA x 602, 218 mm L

1шт.

28

433008

CLAMP

2шт.

29

433101

SUPPORT

1шт.

30

84023914

SEAL KIT

1шт.

31

84026009

SEAL KIT

1шт.

32

350657

RESTRICTOR VALVE

1шт.

FOR 17 TO 24 FT ONLY

1шт.

33

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

, Start Serial: D964

4шт.

34

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

, Start Serial: D964

4шт.
