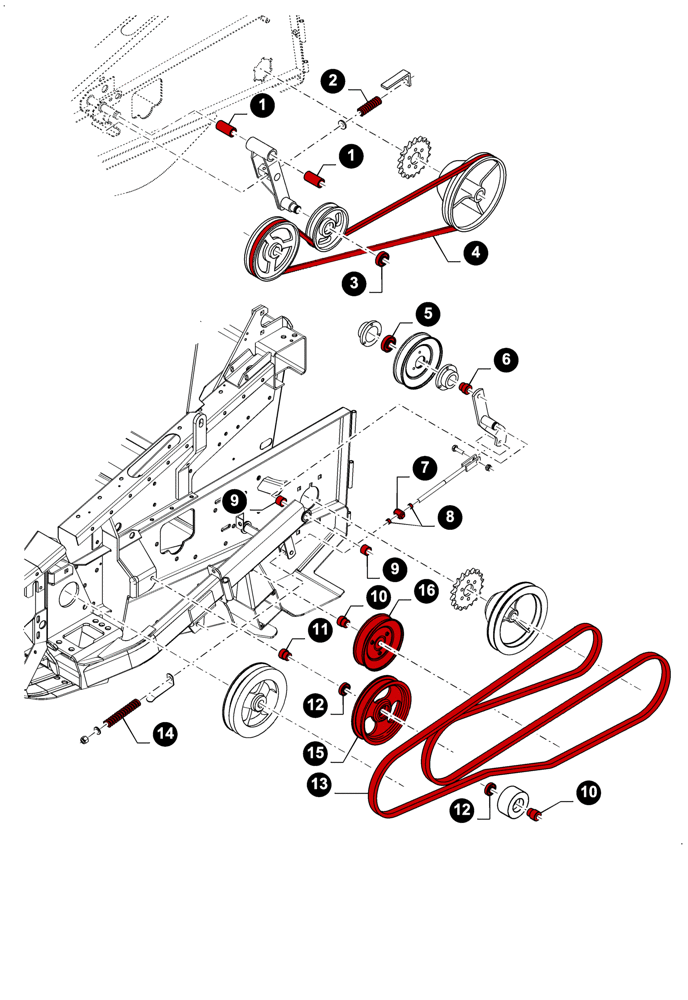

Запчасти Case IH 2040 (00.00GH025[01]) - MAINTENANCE PARTS, WOBBLE BOX DRIVE (00) - GENERAL

1

420760

BUSHING,25mm ID x 28mm OD x 25mm L

2шт.

FOR 2030 AND 2040 ONLY

1шт.

2

440651

SPRING

1шт.

FOR 2030 AND 2040 ONLY

1шт.

3

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

FOR 2030 AND 2040 ONLY

1шт.

4

84058255

V-BELT,2815.00 mm L

1шт.

FOR 2030 ONLY

1шт.

4

84448591

BELT, TRANSMISSION,22.00 mm W x 2874.00 mm L

1шт.

FOR 2040 ONLY

1шт.

5

NLS

NO LONGER SERVICED

1шт.

FOR 2050 ONLY

1шт.

6

84071951

BUSHING,13mm ID x 30mm OD x 29mm L

1шт.

FOR 2050 ONLY

1шт.

7

87324159

HINGE

(8), Serial Range: -C873

1шт.

FOR 2050 ONLY

1шт.

7

87716704

HINGE

(8), Start Serial: D874

1шт.

FOR 2050 ONLY

1шт.

8

919875

SLEEVE

2шт.

FOR 2050 ONLY

1шт.

9

84057311

BUSHING,25mm ID x 28mm OD x 20mm L

2шт.

FOR 2050 ONLY

1шт.

10

87329592

BUSHING

2шт.

FOR 2050 ONLY

1шт.

11

84456100

BUSHING

1шт.

FOR 2050 ONLY

1шт.

12

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

FOR 2050 ONLY

1шт.

13

84449765

BELT,22.00 mm W x 4570.00 mm L

, Serial Range: -C960

1шт.

FOR 2050 ONLY

1шт.

13

84291570

V-BELT,22.00 mm W x 4570.00 mm L

, Start Serial: D961

1шт.

FOR 2050 ONLY

1шт.

14

80337829

SPRING

1шт.

FOR 2050 ONLY

1шт.

15

84814258

PULLEY

1шт.

FOR 2050 ONLY

1шт.

16

84077479

PULLEY,174mm OD

1шт.

FOR 2050 ONLY

1шт.
