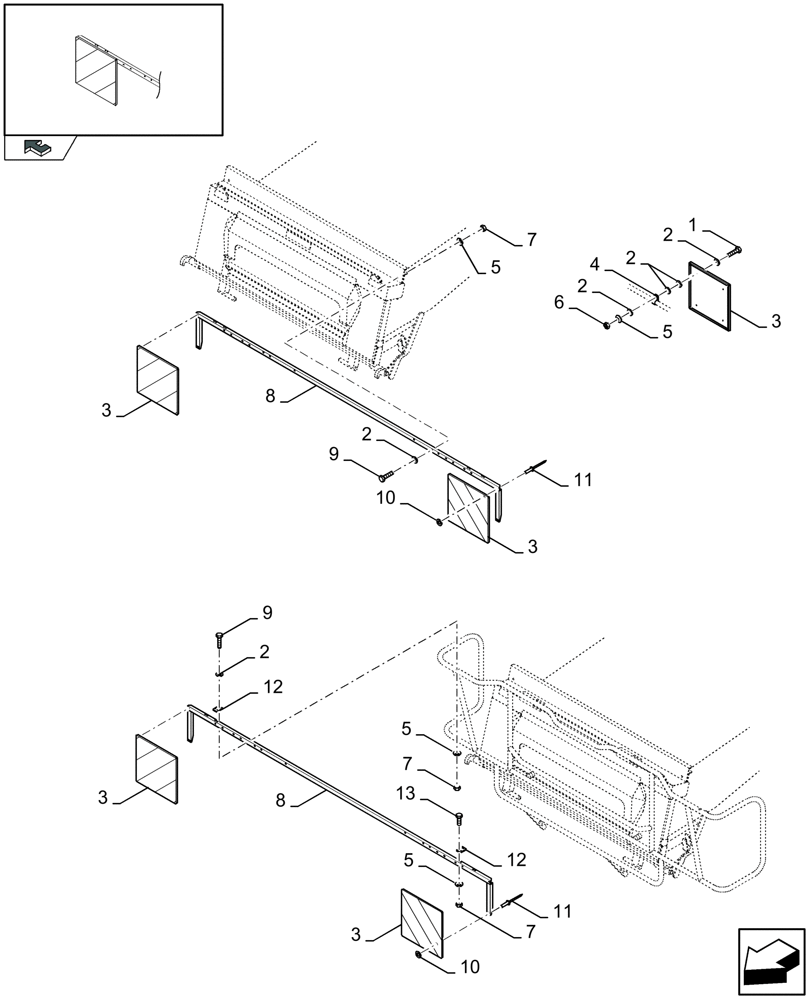

Запчасти Case IH 2040 (20.01A[01]) - SIGNAL PLATES (20) - HEADER

1

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

8шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

34шт.

3

84607381

PLATE

4шт.

4

84433319

CLAMP,28mm ID, 5.5mm Bolt Hole, P Type

8шт.

5

80322357

LOCK WASHER,Belleville, M6

14шт.

6

86508813

NUT,M5, Cl 8

8шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

8

89502877

SUPPORT

2шт.

9

80043118

SCREW

2шт.

10

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

11

80425523

RIVET

6шт.

12

84818296

SUPPORT

2шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.
