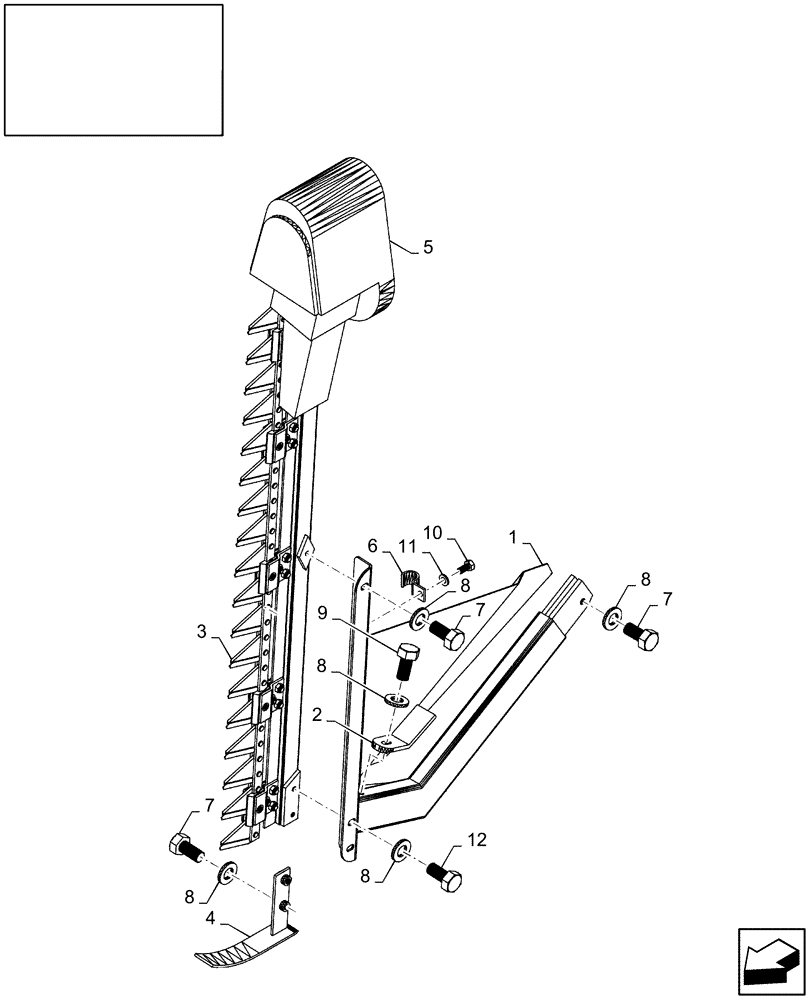

Запчасти Case IH 2040 (18.87393201[01]) - DIA : VERTICAL RAPESEED KNIFE KIT - LH (18) - ACCESSORIES

87393201

DIA KIT, HARVESTER

1шт.

1

87533773

SUPPORT

1шт.

2

87533774

SUPPORT

1шт.

3

87533771

KNIFE

1шт.

4

87533779

GUIDE

1шт.

5

87533780

WIRE HARNESS

1шт.

6

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

9

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

10

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

12

388113

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.
