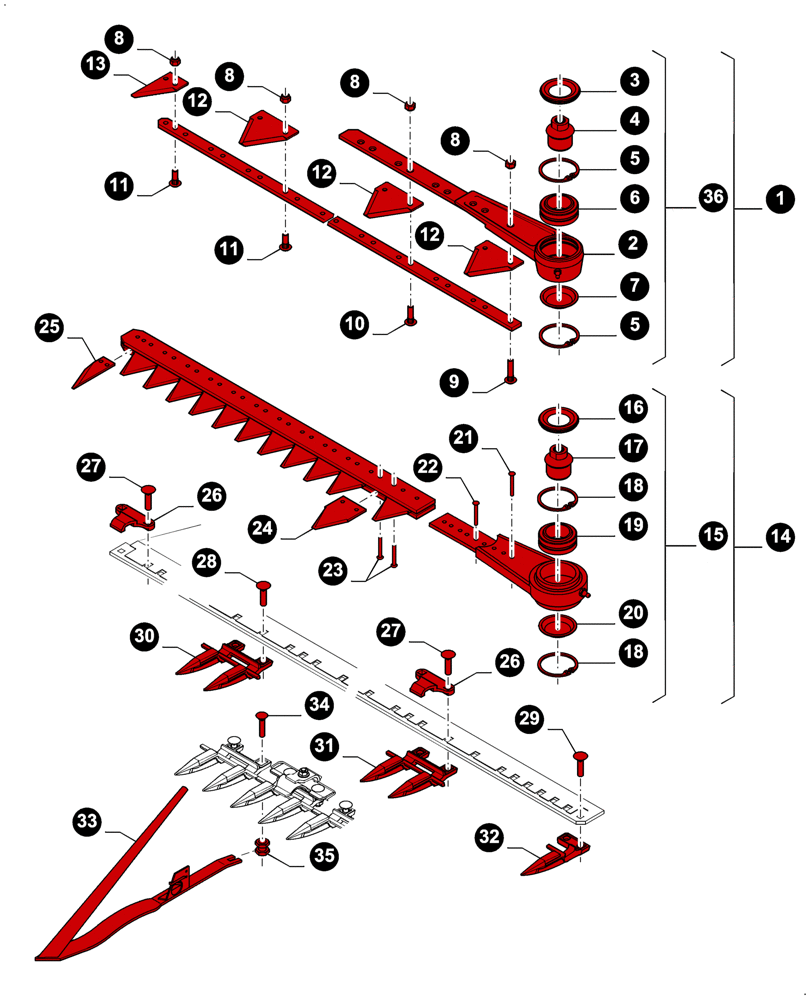

Запчасти Case IH 2040 (00.00GH023[01]) - MAINTENANCE PARTS, CUTTER BAR (00) - GENERAL

1

84435371

KNIFE

(2 to 13)

1шт.

STANDARD

1шт.

FOR 15 FT ONLY

1шт.

UPPER SERRATED

1шт.

1

84435372

KNIFE

(2 to 13)

1шт.

FOR 17 FT ONLY

1шт.

STANDARD

1шт.

UPPER SERRATED

1шт.

1

84433815

KNIFE

(2 to 13)

1шт.

STANDARD

1шт.

UPPER SERRATED

1шт.

FOR 20 FT ONLY

1шт.

1

84435373

KNIFE

(2 to 13)

1шт.

FOR 24 FT ONLY

1шт.

STANDARD

1шт.

UPPER SERRATED

1шт.

1

84435374

KNIFE

(2 to 13)

1шт.

FOR 30 FT ONLY

1шт.

STANDARD

1шт.

UPPER SERRATED

1шт.

1

84081705

KNIFE GREEN CONDITIO

(2 to 13)

1шт.

FOR 15 FT ONLY

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

1

84081706

KNIFE GREEN CONDITIO

(2 to 13)

1шт.

FOR 17 FT ONLY

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

1

84081707

KNIFE GREEN CONDITIO

(2 to 13)

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

FOR 20 FT ONLY

1шт.

1

84081708

KNIFE GREEN CONDITIO

(2 to 13)

1шт.

FOR 24 FT ONLY

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

1

84081709

KNIFE ASSY

(2 to 13)

1шт.

FOR 30 FT ONLY

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

2

84433779

KNIFE HEAD

1шт.

3

758561

SEAL

1шт.

4

80916806

SHAFT

1шт.

5

80758565

CIRCLIP

2шт.

6

9806311

SPHERICAL BEARING,35mm ID x 55mm OD x 25mm W

1шт.

7

758559

CAP

1шт.

8

84429102

LOCK NUT

1шт.

9

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

3шт.

10

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

6шт.

11

84429099

SCREW,M6 x 16mm

1шт.

12

84429103

KNIFE SECTION

1шт.

STANDARD

1шт.

UPPER SERRATED

1шт.

12

84435879

KNIFE SECTION

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

13

84433772

KNIFE SECTION

1шт.

STANDARD

1шт.

UPPER SERRATED

1шт.

13

84435824

KNIFE SECTION

1шт.

FOR GREEN CONDITIONS ONLY

1шт.

14

84003218

DIA KIT, HARVESTER

(15 to 25)

1шт.

FOR 15 FT ONLY

1шт.

UNDER SERRATED

1шт.

14

84003217

DIA KIT, HARVESTER

(15 to 25)

1шт.

FOR 17 FT ONLY

1шт.

UNDER SERRATED

1шт.

14

80918014

DIA KIT, HARVESTER

(15 to 25)

1шт.

UNDER SERRATED

1шт.

FOR 20 FT ONLY

1шт.

14

80918015

DIA KIT, HARVESTER

(15 to 25)

1шт.

FOR 24 FT ONLY

1шт.

UNDER SERRATED

1шт.

14

84040790

DIA KIT, HARVESTER

(15 to 25)

1шт.

FOR 30 FT ONLY

1шт.

UNDER SERRATED

1шт.

15

80753862

KNIFE HEAD

(16 to 20)

1шт.

16

758561

SEAL

1шт.

17

80916806

SHAFT

1шт.

18

80758565

CIRCLIP

2шт.

19

9806311

SPHERICAL BEARING,35mm ID x 55mm OD x 25mm W

1шт.

20

758559

CAP

1шт.

21

130436

RIVET,Button, 8.28mm OD x 30.2mm L

3шт.

22

65474

RIVET,Button, 8.28mm OD x 23.8mm L

6шт.

23

46436

RIVET,Button, 5.33mm OD x 15.75mm L

1шт.

24

365111

KNIFE SECTION

1шт.

25

365112

KNIFE SECTION

1шт.

26

84800496

KNIFE CLIP

1шт.

27

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

1шт.

28

89833222

BOLT

1шт.

29

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

FOR 2050 ONLY

1шт.

30

80379720

FINGER KNIFE

1шт.

31

80916328

FINGER KNIFE

3шт.

32

918222

FINGER KNIFE

1шт.

33

84134059

CROP LIFTER

1шт.

33

84332932

CROP LIFTER

NARROW, Start Serial: D963

1шт.

34

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

35

89514326

NUT

1шт.

36

84562654

KNIFE HEAD

(2 to 7)

1шт.
