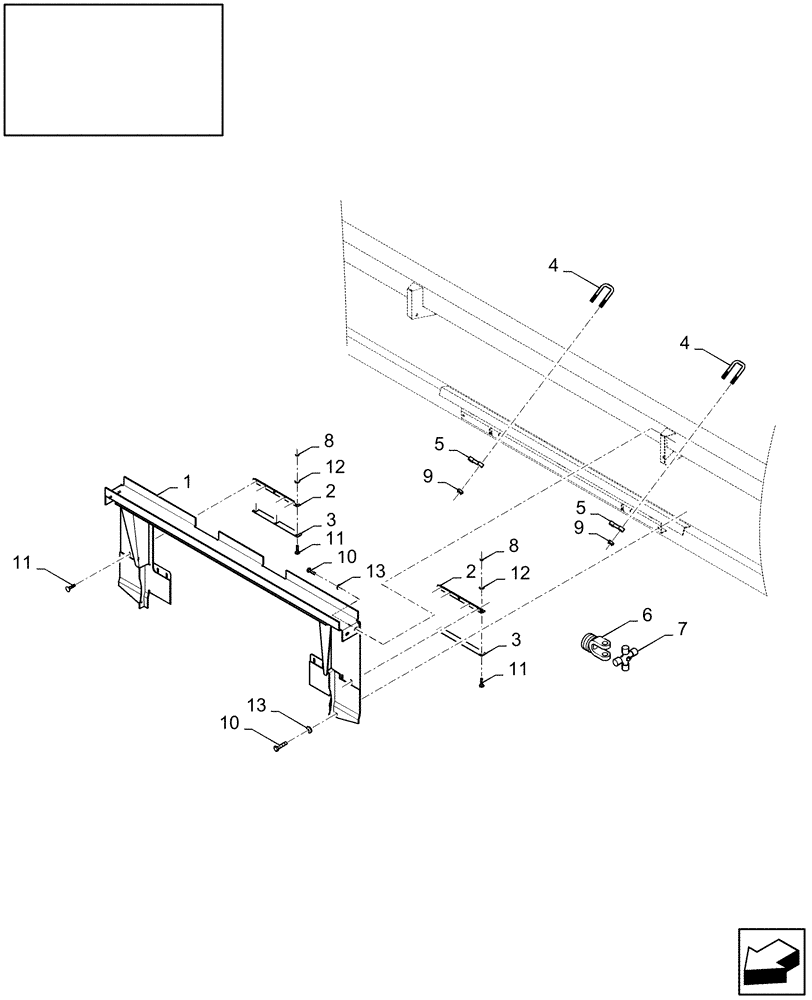

Запчасти Case IH 2040 (18.84111744[01]) - DIA : ADDITIONAL HEADER PARTS - AXIAL FLOW - C909 (18) - ACCESSORIES

84111744

DIA KIT, HARVESTER

1шт.

1

84459545

ADAPTER

ADAPTION, Serial Range: -C011

1шт.

1

87376080

ADAPTER

ADAPTION, Start Serial: D012

1шт.

2

84454948

ANGLE

2шт.

3

84454947

SHIM,34mm OD x 3mm Thk

2шт.

4

84455625

U-BOLT

BOLT "U"

2шт.

5

86619254

PLATE,100mm L

2шт.

6

84455638

YOKE

1шт.

7

80161742

SPIDER

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

14шт.

9

86000441

NUT,M16 x 2.0, Cl 8

4шт.

10

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

14шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.
