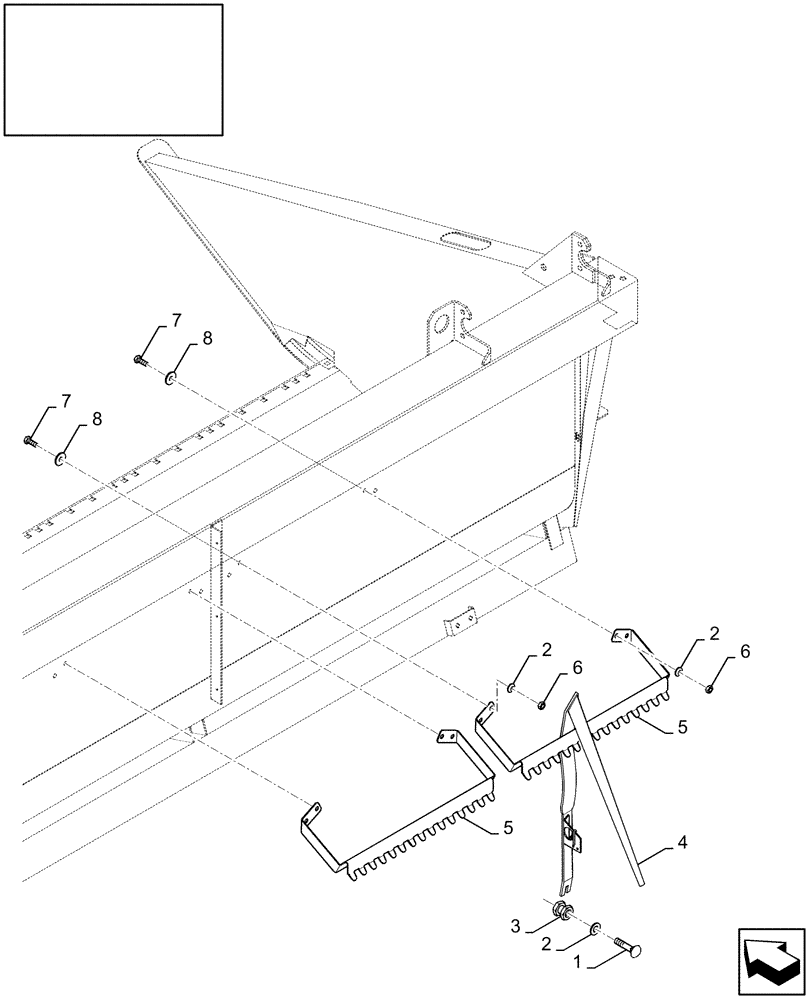

Запчасти Case IH 2040 (18.84110407[01]) - DIA : CROPLIFTER SET (18) - ACCESSORIES

84110407

DIA KIT, HARVESTER

1шт.

1

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

29шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

37шт.

3

9514326

NUT

29шт.

4

84814554

CROP LIFTER

29шт.

5

84441549

SUPPORT

2шт.

6

100016

NUT,M10 x 1.5, Cl 8

8шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

8

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

8шт.
