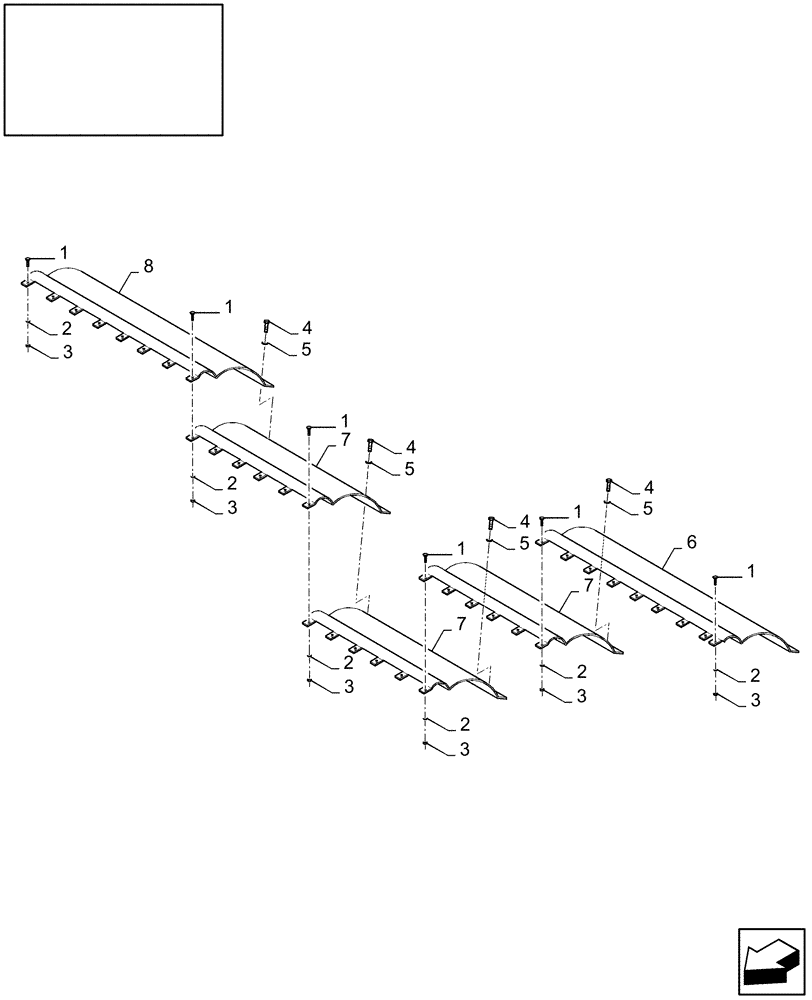

Запчасти Case IH 2040 (18.84110401[01]) - DIA : FEEDING PLATE (18) - ACCESSORIES

84110401

DIA KIT, HARVESTER

1шт.

1

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

31шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

31шт.

3

9706690

NUT,M8 x 1.25, Cl 8

31шт.

4

412684

SCREW,Phillips Drive, Round HD, M6.3 x 13mm

M6 x 13

32шт.

5

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

32шт.

6

84441120

PLATE

1шт.

7

84441142

PLATE

3шт.

8

84441125

PLATE

1шт.
