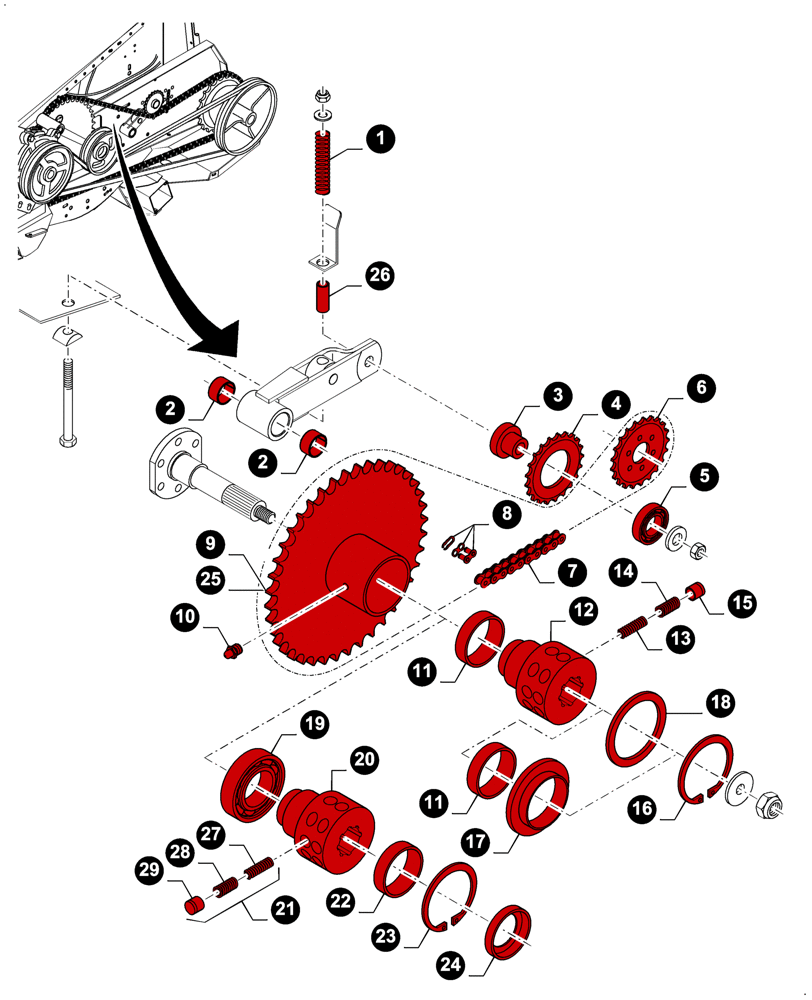

Справочник запчастей Case IH 2040 (00.00GH032[01]) - MAINTENANCE PARTS, FEED AUGER DRIVE (00) - GENERAL со схемами

1

9817602

SPRING

1шт.

2

382975

BUSHING,25mm ID x 28mm OD x 15mm L

2шт.

3

84334260

BUSHING

1шт.

4

87283101

SPROCKET,15T

(5), Serial Range: -C849

1шт.

4

84980926

SPROCKET

(5), Start Serial: D850

1шт.

5

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

6

9819912

DRIVING SPROCKET

1шт.

7

84058834

CHAIN,#60, 6 Links x 19.05mm = 114.3mm

(8)

1шт.

FOR LOW RPM ONLY

1шт.

7

84058833

CHAIN,#60, 104 Links x 19.05mm = 1981.2mm

(8)

1шт.

FOR 2030 AND 2050 ONLY

1шт.

7

84448828

CHAIN,Roller, 90 Links x 19.05mm = 1714.5mm

(8)

1шт.

FOR 2040 ONLY

1шт.

8

9811888

CONNECTING LINK

2шт.

9

84453595

CLUTCH

(10 to 17, 25), Serial Range: -C705

1шт.

FOR LOW RPM ONLY

1шт.

9

84453594

CLUTCH

(10 to 15, 19, 23 to 25), Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

9

84461197

DRIVEN SPROCKET

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2040 AND 2050 ONLY

1шт.

9

84453506

CLUTCH

(10 to 15, 19, 23 to 25), Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

9

84453557

CLUTCH

(10 to 15, 19, 23 to 25), Start Serial: D706

1шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

9

84453557

CLUTCH

(10 to 15, 19, 23 to 25), Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

9

84461190

DRIVEN SPROCKET

, Start Serial: D766

1шт.

FOR 2030 - 30 FT ONLY

1шт.

10

84447449

LUBE NIPPLE,M8.2 x 1

, Serial Range: -C705

1шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

, Start Serial: D706

1шт.

FOR 2030 - 20 & 24 FT ONLY

1шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

11

84068380

SEALING RING

SEALRING, Serial Range: -C705

2шт.

FOR LOW RPM ONLY

1шт.

11

84068380

SEALING RING

SEALRING, Serial Range: -C705

1шт.

FOR 17 FT ONLY

1шт.

11

84068380

SEALING RING

SEALRING, Serial Range: -C705

2шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

12

84429809

HUB

, Serial Range: -C705

1шт.

FOR LOW RPM ONLY

1шт.

12

84075521

HUB

, Serial Range: -C705

1шт.

FOR 17 FT ONLY

1шт.

12

84429809

HUB

, Serial Range: -C705

1шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

12

84429809

HUB

, Serial Range: -C705

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

13

84075523

SPRING

, Serial Range: -C705

18шт.

FOR LOW RPM ONLY

1шт.

13

84075523

SPRING

, Serial Range: -C705

24шт.

FOR 17 FT ONLY

1шт.

13

84075523

SPRING

, Serial Range: -C705

18шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

13

84075523

SPRING

, Serial Range: -C705

18шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

14

84075522

SPRING

, Serial Range: -C705

30шт.

FOR LOW RPM ONLY

1шт.

14

84075522

SPRING

, Serial Range: -C705

24шт.

FOR 17 FT ONLY

1шт.

14

84075522

SPRING

, Serial Range: -C705

36шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

14

84075522

SPRING

, Serial Range: -C705

36шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

15

84819985

CAM

, Serial Range: -C705

30шт.

FOR LOW RPM ONLY

1шт.

15

84819985

CAM

, Serial Range: -C705

24шт.

FOR 17 FT ONLY

1шт.

15

84819985

CAM

, Serial Range: -C705

36шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

15

84819985

CAM

, Serial Range: -C705

36шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

16

301652

SNAP RING,M110 x 4mm, Internal

1шт.

17

84429801

RING

, Serial Range: -C705

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 20, 24 & 30 FT ONLY

1шт.

18

84068382

RING

, Serial Range: -C705

1шт.

FOR 17 FT ONLY

1шт.

19

24905140

BALL BEARING,50 mm ID x 80 mm OD

BEARING ASSY, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

19

24905140

BALL BEARING,50 mm ID x 80 mm OD

BEARING ASSY, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

19

24905140

BALL BEARING,50 mm ID x 80 mm OD

BEARING ASSY, Start Serial: D706

1шт.

FOR 2030 - 20 & 24 FT ONLY

1шт.

19

24905140

BALL BEARING,50 mm ID x 80 mm OD

BEARING ASSY, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

20

84800125

HUB

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

20

84800125

HUB

, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

20

84800125

HUB

, Start Serial: D706

1шт.

FOR 2030 ONLY

1шт.

FOR 20 AND 24 FT ONLY

1шт.

20

84800125

HUB

, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

21

84455965

REPAIR KIT

(27 to 29), Start Serial: D706

1шт.

22

84800127

RUBBER SEAL

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

22

84800127

RUBBER SEAL

, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

22

84800127

RUBBER SEAL

, Start Serial: D706

1шт.

FOR 2030 - 20 & 24 FT ONLY

1шт.

22

84800127

RUBBER SEAL

, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

23

84800128

CIRCLIP

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

23

84800128

CIRCLIP

, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

23

84800128

CIRCLIP

, Start Serial: D706

1шт.

FOR 2030 - 20 & 24 FT ONLY

1шт.

23

84800128

CIRCLIP

, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

24

84800131

RING

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

24

84800131

RING

, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

24

84800131

RING

, Start Serial: D706

1шт.

FOR 2030 - 20 & 24 FT ONLY

1шт.

24

84800131

RING

, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

25

84453595

CLUTCH

, Start Serial: D706

1шт.

FOR LOW RPM ONLY

1шт.

FOR 2030 ONLY

1шт.

25

NSS

NOT SOLD SEPARAT

, Start Serial: D706

1шт.

FOR 17 FT ONLY

1шт.

ORDER COMPLETE CLUTCH 84453557 - CLUTCH ASSY 1450 Nm or 84453506 - CLUTCH ASSY 1000 Nm

1шт.

25

NSS

NOT SOLD SEPARAT

, Start Serial: D706

1шт.

FOR 2030 - 20 & 24 FT ONLY

1шт.

ORDER COMPLETE CLUTCH 84453557 - CLUTCH ASSY 1450 Nm or 84453506 - CLUTCH ASSY 1000 Nm

1шт.

25

NSS

NOT SOLD SEPARAT

, Serial Range: -F706765

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

ORDER COMPLETE CLUTCH 84453557 - CLUTCH ASSY 1450 Nm or 84453506 - CLUTCH ASSY 1000 Nm

1шт.

26

84069986

BUSHING,13mm ID x 20mm OD x 11mm L

1шт.

FOR 2040 AND 2050 ONLY

1шт.

FOR 2030 - 30 FT ONLY

1шт.

27

NSS

NOT SOLD SEPARAT

1шт.

28

NSS

NOT SOLD SEPARAT

1шт.

29

NSS

NOT SOLD SEPARAT

1шт.

Запчасти Case IH 2040 (00.00GH032[01]) - MAINTENANCE PARTS, FEED AUGER DRIVE (00) - GENERAL
