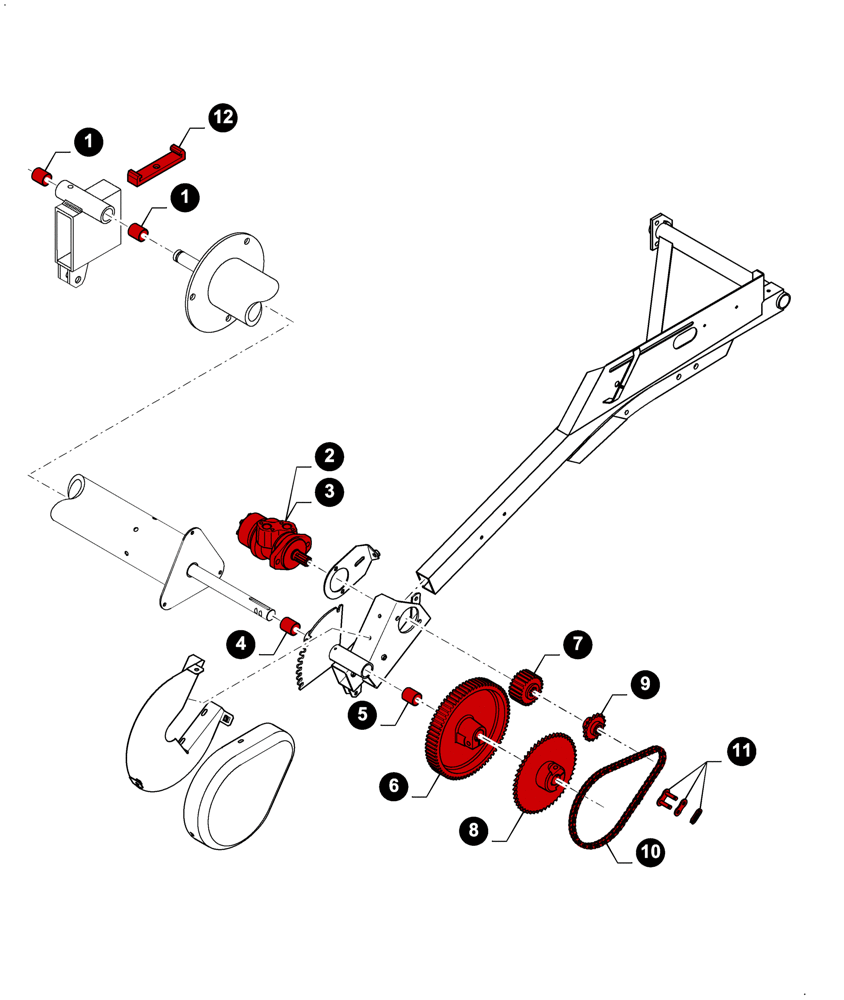

Запчасти Case IH 2040 (00.00GH030[01]) - MAINTENANCE PARTS, REEL, HYDRAULIC DRIVE (00) - GENERAL

1

9615969

SLEEVE,35mm ID x 39mm OD x 20mm L

, Start Serial: D650

2шт.

2

84443777

HYDRAULIC MOTOR,199.8CC

(3)

1шт.

3

84334111

SEAL KIT

1шт.

4

9615969

SLEEVE,35mm ID x 39mm OD x 20mm L

1шт.

5

412365

BUSHING,35mm ID x 39mm OD x 50mm L

1шт.

6

84446620

GEAR

, Serial Range: -C035

1шт.

7

84444202

GEAR

, Serial Range: -C035

1шт.

8

84459150

DRIVEN SPROCKET

, Start Serial: D036

1шт.

9

84459115

DRIVING SPROCKET

, Start Serial: D036

1шт.

10

87534186

CHAIN,50 HV, 64 Links x 15.88mm = 1016mm

(11), Start Serial: D036

1шт.

11

87537504

LINK,15.88mm Pitch

, Start Serial: D036

1шт.

12

89831376

PLATE

1шт.
