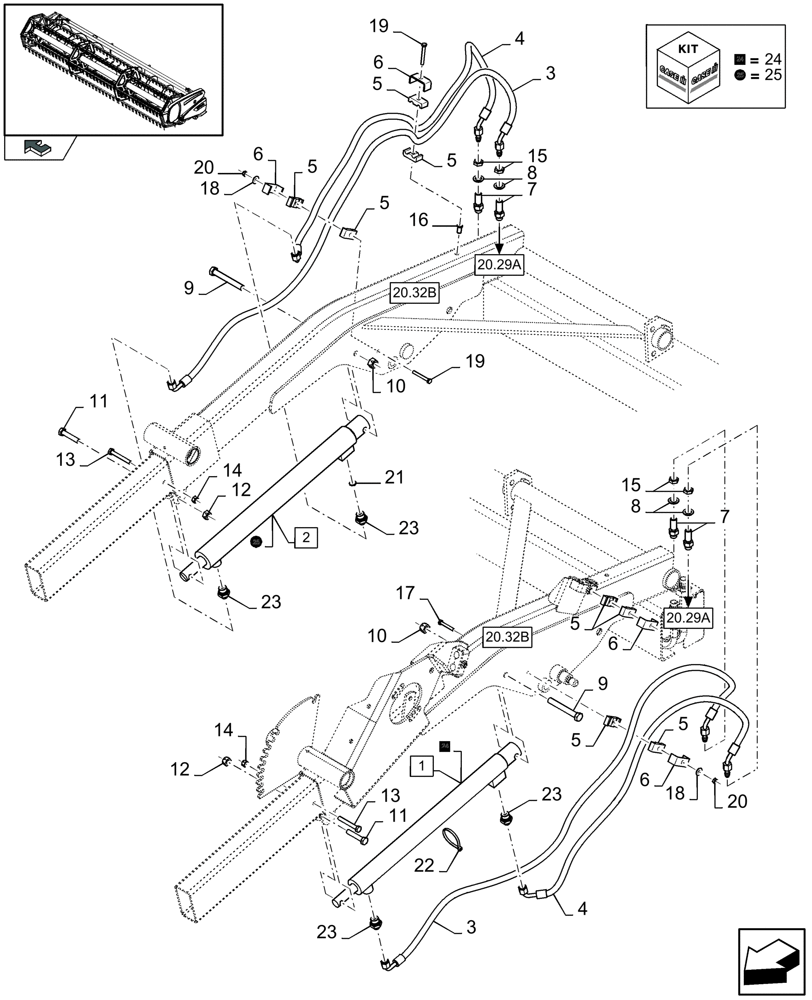

Запчасти Case IH 2040 (20.31A[01]) - HYDRAULIC HORIZONTAL REEL ADJUSTMENT (20) - HEADER

1

84448166

HYDRAULIC CYLINDER

(24) LH, HORIZONTAL REEL ADJUSTMENT

1шт.

2

84448168

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 400mm Stroke

(25) RH, HORIZONTAL REEL ADJUSTMENT

1шт.

3

87741650

FLEXIBLE HOSE

2шт.

4

87741651

FLEXIBLE HOSE

2шт.

5

430357

CLAMP

8шт.

6

431941

SUPPORT

4шт.

7

87479525

FITTING

4шт.

8

87493574

NUT

4шт.

9

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

2шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

13

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

15

140069

WASHER,M15 x 24 x 2 Thk

4шт.

16

9833239

THREADED INSERT

1шт.

17

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

18

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

20

353308

NUT,M6 x 1.0, Cl 8

2шт.

21

385686

ORIFICE

1шт.

22

86566989

CABLE TIE,208mm L

4шт.

23

386215

HYD CONNECTOR

4шт.

24

84026460

SEAL KIT

Wiper rod 20/20*5.7

1шт.

24

84154198

SEAL KIT

Wiper rod 20/30*4.6

1шт.

25

84023914

SEAL KIT

1шт.
