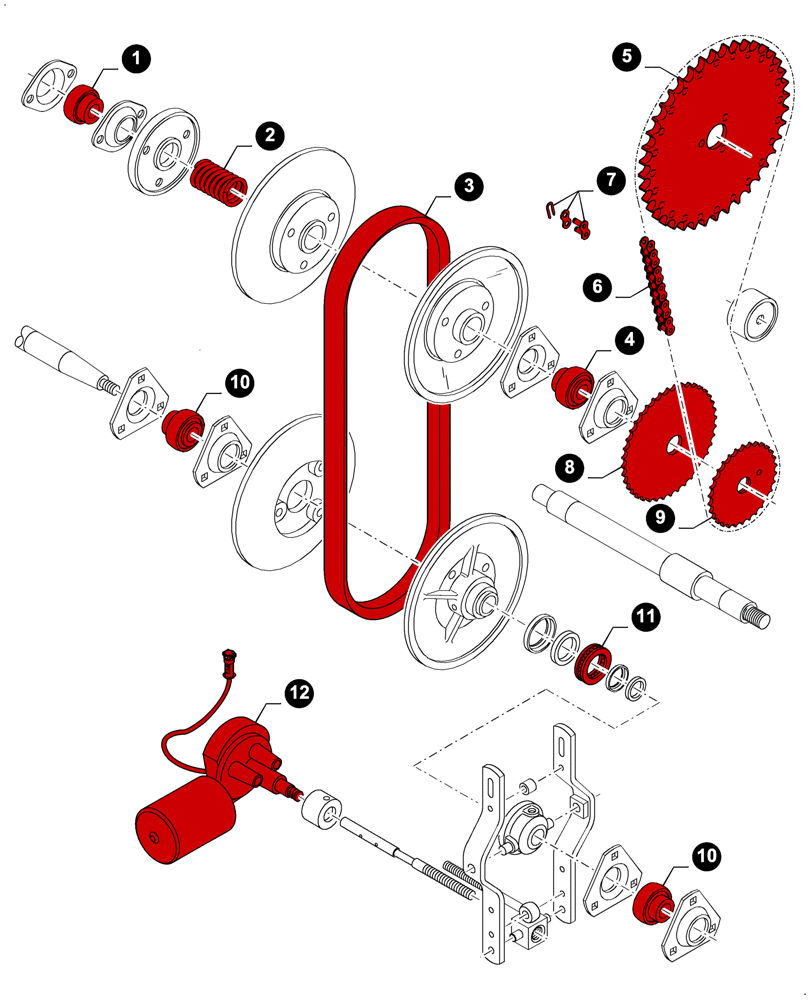

Запчасти Case IH 2030 (00.00GH028[01]) - MAINTENANCE PARTS, REEL VARIATOR DRIVE (00) - GENERAL

1

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

2

334054

SPRING

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

3

334065

V-BELT,31.75 mm W x 1211.00 mm L

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

4

325106

BALL BEARING,30mm ID x 62mm OD x 18mm W

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

5

84320790

DRIVEN SPROCKET

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

6

84058835

CHAIN,Roller, 132 Links x 15.88mm = 2095.5mm

(7)

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

7

86537460

CONNECTING LINK

3шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

8

9819938

DRIVEN SPROCKET

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

9

9819913

DRIVEN SPROCKET

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

10

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

11

210054

BALL BEARING,45mm ID x 65mm OD x 14mm W

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.

12

9507880

ELECTRIC MOTOR

1шт.

FOR CT ONLY

1шт.

FOR 2030 ONLY

1шт.
