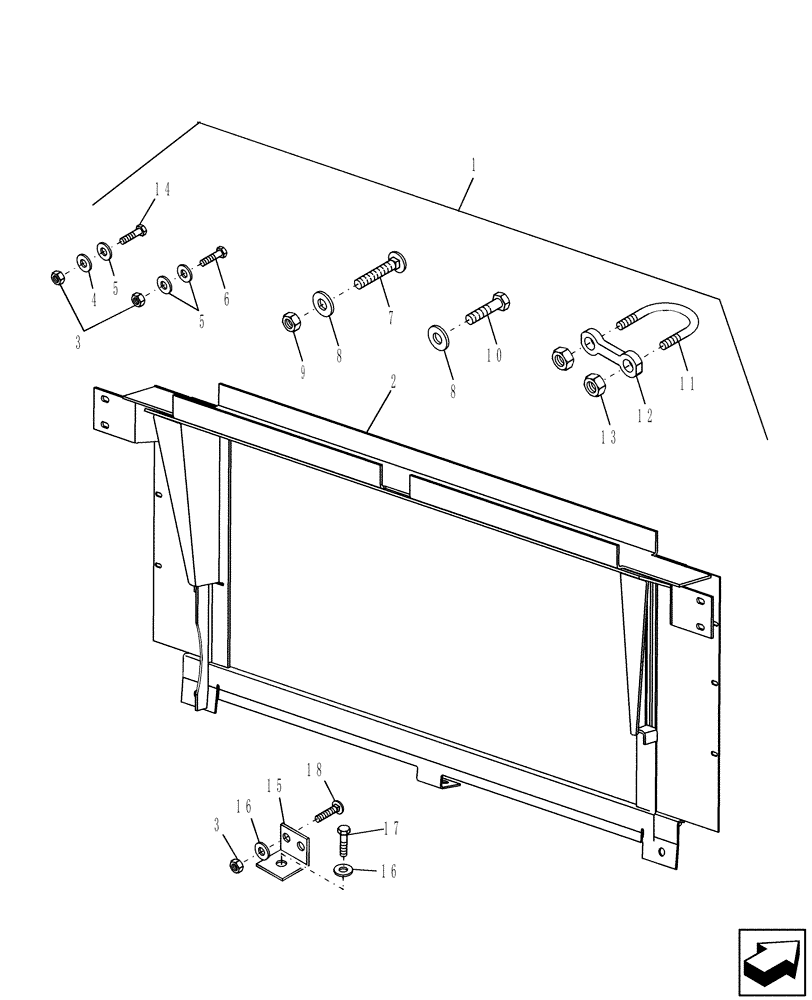

Запчасти Case IH 2020 (20.18.01[1]) - COMBINE MODEL 2000 SERIES ADAPTION, FIXED FRAME ADAPTER AND HARDWARE (58) - ATTACHMENTS/HEADERS

1

87448290

PACKAGE, REPAIR

Model 2010

1шт.

1

87448291

PACKAGE, REPAIR

Model 2020

1шт.

2

87447674

FRAME ASSY

Frame, 2010

1шт.

2

87032532

FRAME ASSY

Frame, 2020

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

9706690

NUT,M8 x 1.25, Cl 8

10шт.

4

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

4шт.

5

495-21038

WASHER,5/16"

16шт.

6

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

7

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

8

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

9

10020

NUT

M16 x 2

2шт.

10

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

11

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

12

86619254

PLATE,100mm L

Bar, Feeder

2шт.

13

231-14110

LOCK NUT,5/8"-11, GB

4шт.

14

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

15

87022313

BRACKET

Stripper Extension

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

18

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.
