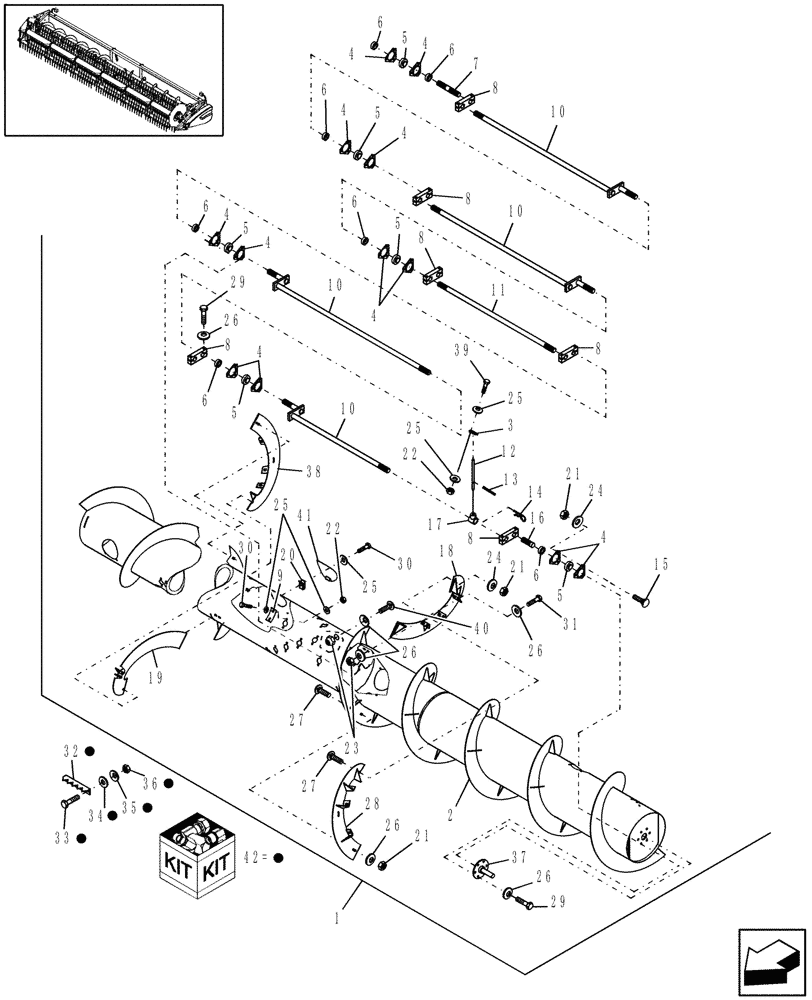

Запчасти Case IH 2020 (20.16.04) - AUGER, 35 FT (58) - ATTACHMENTS/HEADERS

1

87583040

AUGER

Assembly

1шт.

2

87589840

AUGER

Assembly

1шт.

3

87051323

GUIDE

AUGER FINGER

33шт.

4

36403

BEARING HOUSING

14шт.

5

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

7шт.

6

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

7шт.

7

87582375

SHAFT

RH

1шт.

8

86620720

CRANKED LINK

6шт.

9

87017812

COVER

4шт.

10

86599059

SHAFT

Crank

4шт.

11

86599057

SHAFT

Center

1шт.

12

87051301

FINGER

31шт.

12

87594366

FINGER

W/Ref 13 Included

31шт.

13

88422

LOCK PIN,1/8" x 1 3/4", Slotted

31шт.

14

740591

SPRING,M10 x 67

7/64" Dia.

31шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

9шт.

16

87051367

SHAFT

LH

1шт.

17

740844

COUPLING

Mounting

33шт.

18

87356829

AUGER FLIGHT

LH, Second Extension

1шт.

18

87017766

AUGER FLIGHT

LH, Second Extension, Light Crop

1шт.

19

87356755

AUGER FLIGHT

RH, Second Extension

1шт.

19

87017767

AUGER FLIGHT

RH, Second Extension, Light Crop

1шт.

20

86014250

SPRING NUT,M6 x 1.0

Special

32шт.

21

100016

NUT,M10 x 1.5, Cl 8

29шт.

22

127550

NUT,Tee, 1/4"-20

64шт.

23

412672

NUT,Hex, M12 x 1.75, Cl 10

20шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

29шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

98шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

49шт.

27

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

28

87356883

AUGER FLIGHT

LH, First Extension

1шт.

29

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

3шт.

30

120100

BOLT,M6 x 20mm, Cl 8.8

32шт.

31

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

14шт.

32

87019394

SWEEP

Optional

2шт.

33

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

34

87362

WASHER,5/16" SAE

6шт.

35

492-11031

LOCK WASHER,5/16"

6шт.

36

9635082

NUT,5/16" - 18, Gr 5

6шт.

37

86622892

SHAFT

Flange

1шт.

38

87356855

AUGER FLIGHT

RH, First Extension

1шт.

39

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

66шт.

40

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

6шт.

41

87017844

COVER

16шт.

42

87016167

DIA KIT, HARVESTER

Auger Sweep

1шт.
