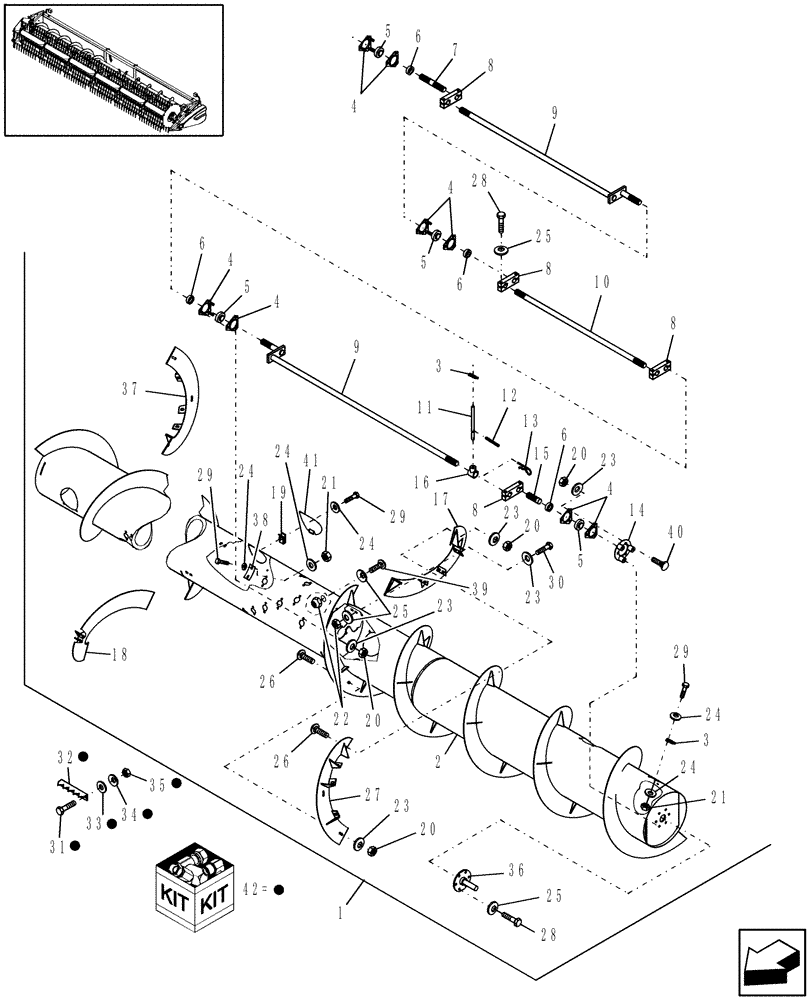

Запчасти Case IH 2020 (20.16.01) - AUGER, 20 FT (58) - ATTACHMENTS/HEADERS

1

87058081

AUGER

Assembly, Internal Finger Flanges, See Figure Note

1шт.

PIN CBJ020701 To CBJ041117

1шт.

1

87610200

AUGER

Assembly, Internal Finger Flanges, See Figure Note

1шт.

PIN CBJ041118 and after

1шт.

2

87016026

AUGER

External Finger Flanges [If no stock available, order Ref 1]

1шт.

BPIN CBJ020701

1шт.

2

87058017

AUGER

Cannot backfit prior to CBJ020701, Order Ref 1

1шт.

PIN CBJ020701 TO CBJ021300

1шт.

2

87610198

AUGER

Shorter cylinder & longer RH shafts but can backfit to CBJ020701, See Figure Note

1шт.

PIN CBJ041118 and after

1шт.

3

86632613

GUIDE

24шт.

BPIN CBJ020701

1шт.

3

87051323

GUIDE

28шт.

PIN CBJ020701 and after

1шт.

4

86620026

FLANGED BEARING

8шт.

5

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

4шт.

6

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

4шт.

7

86599055

SHAFT

RH, 224mm[8.8"] Long

1шт.

BPIN CBJ021301

1шт.

7

87610173

SHAFT

RH, 246mm[9.7"] Long

1шт.

PIN CBJ021301 and after

1шт.

8

86620720

CRANKED LINK

4шт.

9

86599059

SHAFT

Crank

2шт.

10

86599057

SHAFT

Center

1шт.

11

86603233

FINGER

24шт.

BPIN CBJ020701

1шт.

11

87051301

FINGER

26шт.

PIN CBJ020701 and after

1шт.

11

87594366

FINGER

W/Ref 12 Included

26шт.

PIN CBJ020701 and after

1шт.

12

130078

LOCK PIN,M4 x 30, Slotted

24шт.

BPIN CBJ020701

1шт.

12

38-1828

LOCK PIN,1/8" x 1 3/4", Slotted

Spring, 1/8" x 1-3/4"

26шт.

PIN CBJ020701 and after

1шт.

13

740591

SPRING,M10 x 67

24шт.

14

86603897

MOUNTING PLATE

1шт.

15

86599056

SHAFT

LH

1шт.

BPIN CBJ020701

1шт.

15

87051367

SHAFT

LH

1шт.

PIN CBJ020701 and after

1шт.

16

740844

COUPLING

28шт.

17

87016024

AUGER FLIGHT

LH, Second Extension

1шт.

17

87017766

AUGER FLIGHT

LH, Second Extension, Light Crop

1шт.

18

87016023

AUGER FLIGHT

RH, Second Extension

1шт.

18

87017767

AUGER FLIGHT

RH, Second Extension, Light Crop

1шт.

19

86014250

SPRING NUT,M6 x 1.0

Speed

20шт.

20

100016

NUT,M10 x 1.5, Cl 8

20шт.

21

353308

NUT,M6 x 1.0, Cl 8

56шт.

BPIN CBJ020701

1шт.

21

127550

NUT,Tee, 1/4"-20

Tee, 1/4"-20

56шт.

PIN CBJ020701 and after

1шт.

22

412672

NUT,Hex, M12 x 1.75, Cl 10

22шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

132шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

55шт.

26

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

11шт.

27

87016022

AUGER FLIGHT

LH, First Extension

1шт.

28

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

11шт.

29

120100

BOLT,M6 x 20mm, Cl 8.8

76шт.

BPIN CBJ020701

1шт.

29

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

56шт.

PIN CBJ020701 and after

1шт.

30

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

14шт.

31

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

32

87019394

SWEEP

Optional, 2010

2шт.

33

87362

WASHER,5/16" SAE

6шт.

34

492-11031

LOCK WASHER,5/16"

6шт.

35

9635082

NUT,5/16" - 18, Gr 5

6шт.

36

86622892

SHAFT

Flange

1шт.

37

87016021

AUGER FLIGHT

RH, First Extension

1шт.

38

87017812

COVER

4шт.

Cover provided in place of removed fingers when attached to narrow opening combines.

1шт.

39

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

Used to plug empty holes

8шт.

40

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

41

87017844

COVER

10шт.

42

87016167

DIA KIT, HARVESTER

Auger Sweep

1шт.
