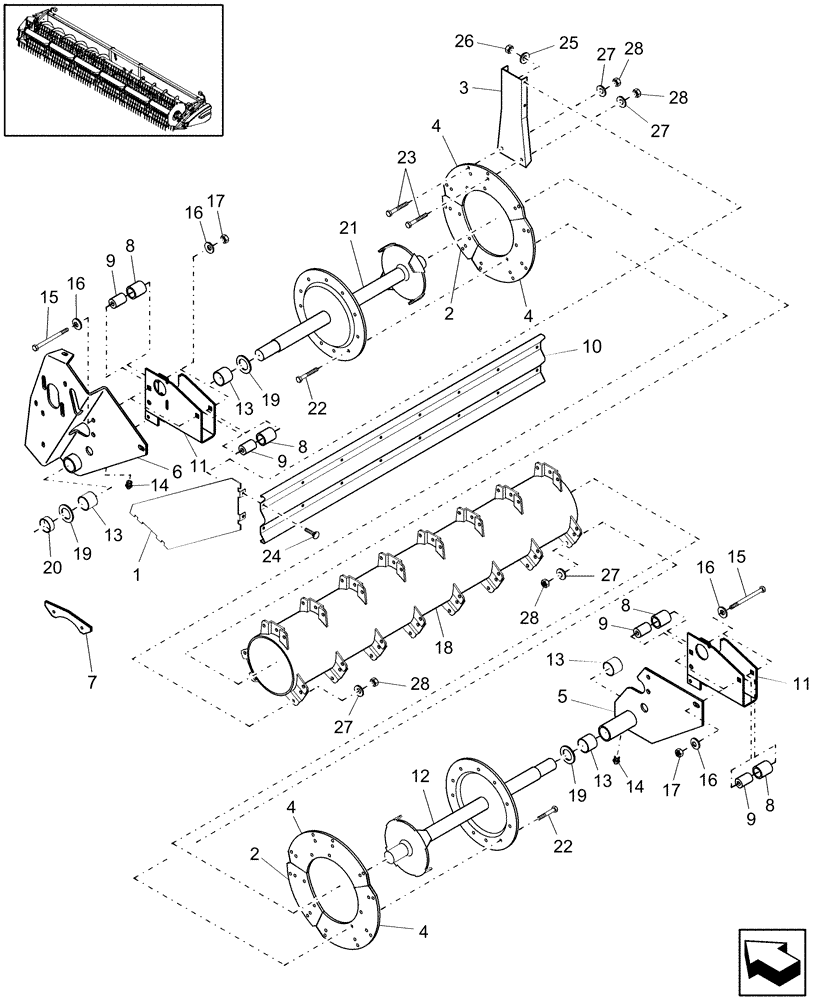

Запчасти Case IH 2020 (20.13.31[2]) - BAT REEL, HCC INC, PIN CBJ020205 AND AFTER (58) - ATTACHMENTS/HEADERS

1

86609420

SHIELD

End

10шт.

2

86609424

PLATE

20 Ft

5шт.

2

86609424

PLATE

25 Ft

6шт.

2

86609424

PLATE

30 Ft

7шт.

3

86609419

ARM

Reel, 20 Ft

25шт.

3

86609419

ARM

Reel, 25 Ft

30шт.

3

86609419

ARM

Reel, 30 Ft

35шт.

4

86609421

PLATE

20 Ft

10шт.

4

86609421

PLATE

25 Ft

12шт.

4

86609421

PLATE

30 Ft

14шт.

5

87048379

PLATE ASSY.

Bearing, RH

1шт.

6

87048378

PLATE ASSY.

Bearing, LH

1шт.

7

87039068

PLATE

Support for base of plastic chain cover

1шт.

8

675205

ROLLER,38.1mm OD x 50.8mm L

4шт.

9

646668

SPACER

4шт.

10

86609423

SLAT

Plain, 20 Ft

5шт.

10

86609422

REEL

Slat, Plain, 25 Ft

5шт.

10

86609418

REEL

Slat, Plain, 30 Ft

5шт.

11

87052952

SUPPORT ASSY.

2шт.

12

86609553

SHAFT

Driven, RH

1шт.

13

167940

BUSHING,39.76mm ID x 44.53mm OD x 38.1mm L

4шт.

14

87414

LUBE NIPPLE,1/4" - 28

2шт.

15

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

4шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

17

9706685

NUT,M12 x 1.75, Cl 8

4шт.

18

86609236

SHAFT

Center, 20 Ft

1шт.

18

86609240

SHAFT

Center, 25 Ft

1шт.

18

86609096

SHAFT

Center, 30 Ft

1шт.

19

167934

WASHER,1.62" ID x 2.25" OD x 0.139"

1-5/8" ID x 2-1/4" OD x 1/8" Nom. Thk.

4шт.

20

86518431

COLLAR

1шт.

21

86609388

SHAFT

Driving, LH

1шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

68шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

84шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

100шт.

24

62087

CARRIAGE BOLT

Truss Hd, M8 x 1.25 x 20

70шт.

24

62087

CARRIAGE BOLT

Truss Hd, M8 x 1.25 x 20

80шт.

24

62087

CARRIAGE BOLT

Truss Hd, M8 x 1.25 x 20

90шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

70шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

80шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

90шт.

26

9706690

NUT,M8 x 1.25, Cl 8

70шт.

26

9706690

NUT,M8 x 1.25, Cl 8

80шт.

26

9706690

NUT,M8 x 1.25, Cl 8

90шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

80шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

96шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

112шт.

28

100037

LOCK NUT,M10 x 1.5, Cl 8

80шт.

28

100037

LOCK NUT,M10 x 1.5, Cl 8

96шт.

28

100037

LOCK NUT,M10 x 1.5, Cl 8

112шт.
