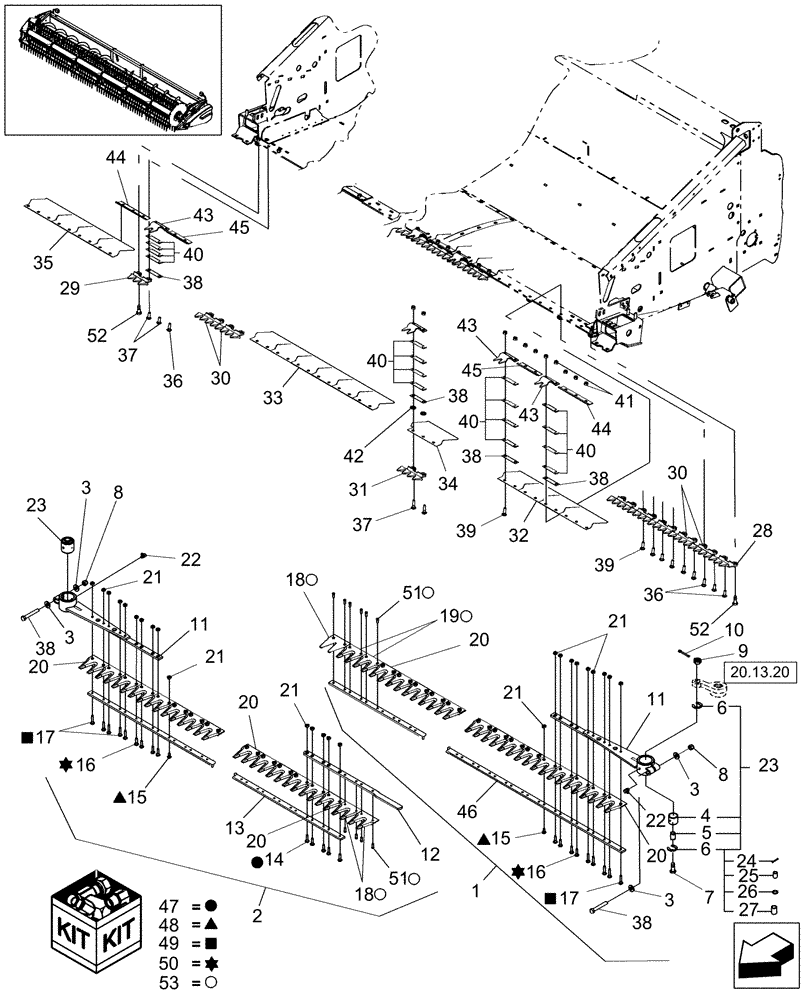

Запчасти Case IH 2020 (20.13.12[3]) - CUTTERBAR, 1-1/2" KNIVES, 30 & 35 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87515127

KNIFE ASSY

LH, 30 Ft

1шт.

1

87595600

KNIFE ASSY

LH, 35 Ft

1шт.

2

87515128

KNIFE ASSY

RH, 30 Ft

1шт.

2

87595601

KNIFE ASSY

RH, 35 Ft

1шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

4шт.

4

612408

HUB

2шт.

5

288749

SHAFT

2шт.

6

579497

CIRCLIP,M20

Ext., 1"

4шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

5/8"-18 x 3-1/2", Drilled

2шт.

8

9637692

NUT,3/8"-16, Gr B

2шт.

9

87446

SLOTTED NUT,5/8"-18

2шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

11

87366898

KNIFE HEAD

2шт.

12

848095

EXTENSION

1шт.

13

NSS

NOT SOLD SEPARAT

RH, 168-1/16" Long 30 Ft, 204-1/4" Long 35 Ft

1шт.

14

NSS

NOT SOLD SEPARAT

#12-24 x 7/8", See Ref 47

5шт.

15

NSS

NOT SOLD SEPARAT

#12-24 x 0.56" [9/16"], 30 Ft, Qty [105] LH, [98] RH, See Ref 48

1шт.

15

NSS

NOT SOLD SEPARAT

#12-24 x [5/8"], 35 Ft, Qty [125] LH, [122] RH, See Ref 48

1шт.

16

NSS

NOT SOLD SEPARAT

#12-24 x 3/4", See Ref 50

4шт.

17

NSS

NOT SOLD SEPARAT

#12-24 x 1-1/8", See Ref 49

10шт.

18

766757

KNIFE SECTION

30 Ft, Qty [1] LH, [2] RH

3шт.

18

766757

KNIFE SECTION

35 Ft, Qty [2] LH & RH

4шт.

19

766758

KNIFE SECTION

60° Countersunk Top, LH Only

2шт.

20

848093

KNIFE SECTION

30 Ft, 90° Countersunk Top, Qty [57] LH,[56] RH

1шт.

20

848093

KNIFE SECTION

35 Ft, 90° Countersunk Top, Qty [67] LH,[68] RH

1шт.

21

848083

LOCK NUT

30 Ft, #12-24, LH, See Ref, Serial Range: 47-49

114шт.

21

848083

LOCK NUT

30 Ft, #12-24, RH, See Ref, Serial Range: 47-49

112шт.

21

848083

LOCK NUT

35 Ft, #12-24, LH, See Ref, Serial Range: 47-49

134шт.

21

848083

LOCK NUT

35 Ft, #12-24, RH, See Ref, Serial Range: 47-49

136шт.

22

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

23

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

2шт.

24

86544799

LOCK PIN,3/32" x 1/4", Slotted

2шт.

25

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

2шт.

26

121189

OIL SEAL

2шт.

27

NSS

NOT SOLD SEPARAT

Hub

2шт.

28

87015706

GUARD

LH

1шт.

29

87015707

GUARD

RH

1шт.

30

87015708

GUARD

30 Ft

56шт.

30

87015708

GUARD

35 Ft

69шт.

31

87015709

GUARD

Triple, Center

1шт.

32

87390150

PANEL

30 Ft, LH, 4 Section, 9 Holes

1шт.

32

87390142

PANEL

35 Ft, LH, 3 Section, 7 Holes

1шт.

33

87390140

PANEL

30 Ft, 6 Section, 12 Holes

8шт.

33

87390140

PANEL

35 Ft, 6 Section, 12 Holes

10шт.

34

87390152

PANEL

Center, 1 Section, 3 Holes

1шт.

35

87390148

PANEL

RH, 4 Section, 9 Holes

1шт.

36

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

30 Ft

47шт.

36

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

35 Ft

57шт.

37

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

30 Ft, Through clamp on frame and Ref 43 stack

12шт.

37

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

35 Ft, Through clamp on frame and Ref 43 stack

12шт.

38

86512832

SHIM,28.57mm OD x 4.78mm Thk

0.188"

28шт.

39

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

30 Ft, Through clamp on frame

58шт.

39

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

35 Ft, Through clamp on frame

70шт.

40

86622662

SHIM

30 Ft, 0.036"

56шт.

40

86622663

SHIM,26.99mm OD x 0.25mm Thk

30 Ft, 0.010"

28шт.

40

86622662

SHIM

35 Ft, 0.036"

68шт.

40

86622663

SHIM,26.99mm OD x 0.25mm Thk

35 Ft, 0.010"

34шт.

41

87517

NUT,7/16"-14, GB

30 Ft

119шт.

41

87517

NUT,7/16"-14, GB

35 Ft

141шт.

42

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

2шт.

43

9826150

KNIFE CLIP

30 Ft

28шт.

43

9826150

KNIFE CLIP

35 Ft

34шт.

44

694945

WEAR STRIP

30 Ft

4шт.

44

694945

WEAR STRIP

35 Ft

2шт.

45

694293

WEAR STRIP

30 Ft

24шт.

45

694293

WEAR STRIP

35 Ft

32шт.

46

NSS

NOT SOLD SEPARAT

LH, 180-1/16" Long 30 Ft, 210-1/4" Long 35 Ft

1шт.

47

86507778

KIT

#12-24 x 7/8", Ref 14 & 19, Qty 25 Each

1шт.

48

87015068

BOLT AND NUT

#12-24 x 9/16", Ref 15 & 19, Qty 50 Each

1шт.

49

86507780

KIT

#12-24 x 1-1/8", Ref 17 & 19, Qty 25 Each

1шт.

50

86517390

BOLT AND NUT

#12-24 x 3/4", Ref 16 & 19, Qty 25 Each

1шт.

51

137636

RIVET,Countersunk Hd, #5 1/2, 7/32" x 5/8"

LH, Installed from top

6шт.

51

137636

RIVET,Countersunk Hd, #5 1/2, 7/32" x 5/8"

RH, Installed from bottom

4шт.

52

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

2шт.

53

86606200

KIT

Overlap, Qty [3] Ref 18, [2] Ref 19, [10] Ref 51

1шт.
