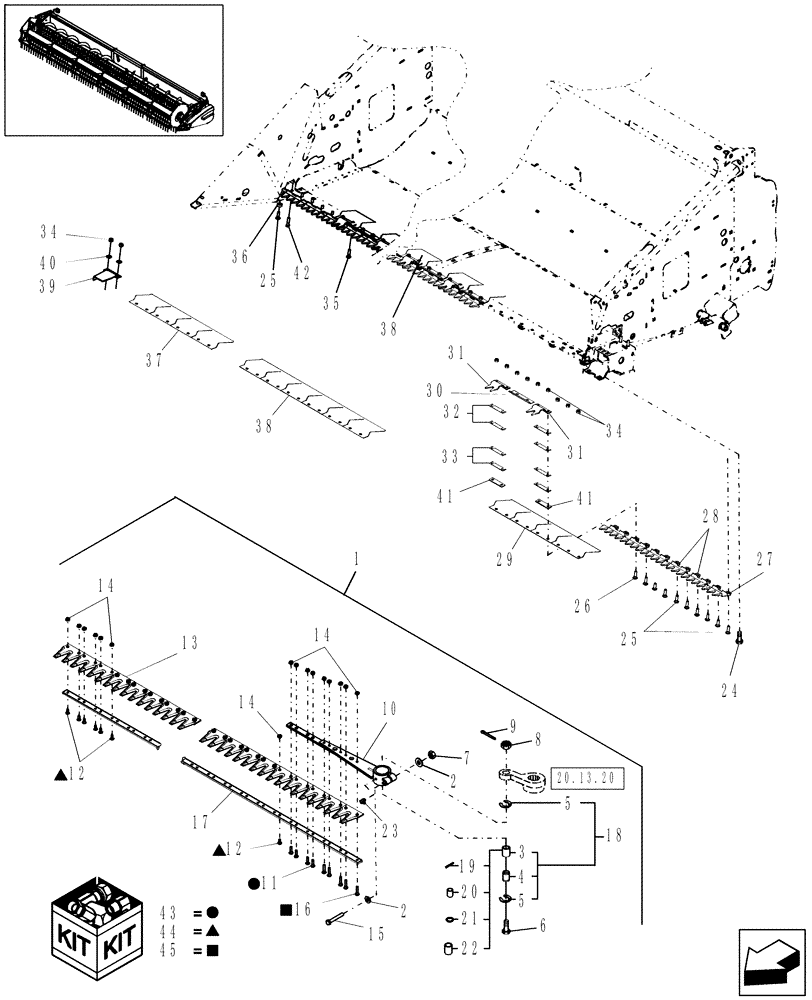

Запчасти Case IH 2020 (20.13.12[2]) - CUTTERBAR, 1-1/2" KNIVES, 20 & 25 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87568874

KNIFE ASSY

20 Ft

1шт.

1

87533666

KNIFE ASSY

25 Ft

1шт.

2

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

3

612408

HUB

1шт.

4

288749

SHAFT

1шт.

5

579497

CIRCLIP,M20

1шт.

6

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

1шт.

7

9637692

NUT,3/8"-16, Gr B

1шт.

8

87446

SLOTTED NUT,5/8"-18

1шт.

9

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

10

87366898

KNIFE HEAD

1шт.

11

NSS

NOT SOLD SEPARAT

#12-24 x 7/8", See Ref 42

4шт.

12

NSS

NOT SOLD SEPARAT

#12-24 x 5/8", See Ref 43, 20 Ft

147шт.

12

NSS

NOT SOLD SEPARAT

#12-24 x 5/8", See Ref 43, 25 Ft

187шт.

13

848092

CUTTING BLADE

90°, Countersunk Top, 20 Ft

78шт.

13

848092

CUTTING BLADE

90°, Countersunk Top, 25 Ft

98шт.

14

848083

LOCK NUT

#12-24, 20 Ft

156шт.

14

848083

LOCK NUT

#12-24, 25 Ft

196шт.

15

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

16

NSS

NOT SOLD SEPARAT

#12-24 x 1-1/8", See Ref 44

5шт.

17

NSS

NOT SOLD SEPARAT

20 Ft, 5945.1mm [234-1/4"]

1шт.

17

NSS

NOT SOLD SEPARAT

25 Ft, 7469.1mm [294-1/4"]

1шт.

18

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

1шт.

19

86544799

LOCK PIN,3/32" x 1/4", Slotted

1шт.

20

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

21

120089

BOLT,Hex, M16 x 40, 8.8

1шт.

22

NSS

NOT SOLD SEPARAT

Hub

1шт.

23

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

24

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

1шт.

25

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

20 Ft, Through Ref 30

31шт.

25

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

25 Ft, Through Ref 30

39шт.

26

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

20 Ft, Through clamp on frame & Ref 31 stack

7шт.

26

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

25 Ft, Through clamp on frame & Ref 31 stack

9шт.

27

87015709

GUARD

1шт.

28

87015708

GUARD

20 Ft

38шт.

29

87390150

PANEL

1шт.

30

694293

WEAR STRIP

20 Ft

18шт.

30

694293

WEAR STRIP

25 Ft

23шт.

31

9826150

KNIFE CLIP

20 Ft

19шт.

31

9826150

KNIFE CLIP

25 Ft

24шт.

32

86622663

SHIM,26.99mm OD x 0.25mm Thk

20 Ft

19шт.

32

86622663

SHIM,26.99mm OD x 0.25mm Thk

25 Ft

24шт.

33

86622662

SHIM

25 Ft

48шт.

34

87517

NUT,7/16"-14, GB

20 Ft

80шт.

34

87517

NUT,7/16"-14, GB

25 Ft

100шт.

35

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

20 Ft, Through clamp on frame & Ref 30

40шт.

35

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

25 Ft, Through clamp on frame & Ref 30

50шт.

36

86529376

SPACER

1шт.

37

87390144

PANEL

25 Ft, [two section, four hole ]

1шт.

37

87390146

PANEL

20 Ft, [four section, eight hole]

1шт.

38

87390140

PANEL

20 Ft

5шт.

38

87390140

PANEL

25 Ft

7шт.

39

87541451

PANEL

1шт.

40

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

25 Ft Only

2шт.

41

86512832

SHIM,28.57mm OD x 4.78mm Thk

24шт.

42

280747

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

1шт.

43

86507778

KIT

#12-24 x 7/8", Qty 25 Each Ref 11 & 14

1шт.

44

86507777

KIT

#12-24 x 5/8", Qty 50 Each Ref 12 & 14

1шт.

45

86507780

KIT

#12-24 x 1-1/8", Qty 25 Each Ref 16 & 14

1шт.
