Запчасти Case IH 2020 (20.13.12[1]) - CUTTERBAR, 1-1/2" KNIVES, 20, 25 & 30 FT, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

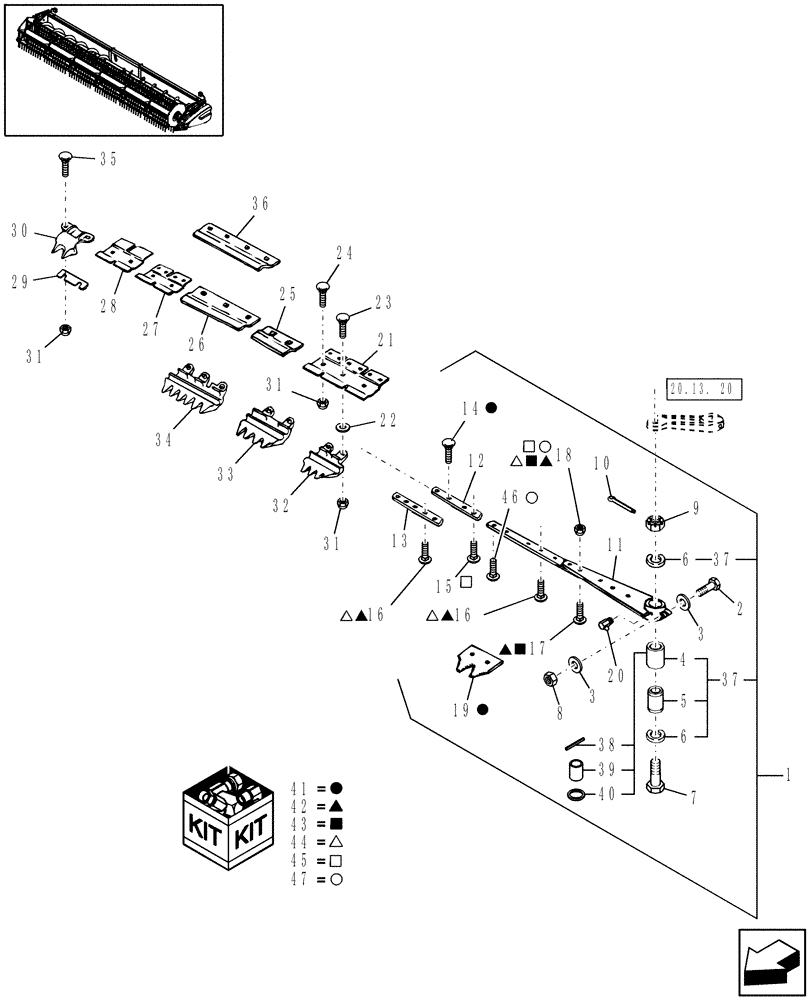

Схема запчастей Case IH 2020 - (20.13.12[1]) - CUTTERBAR, 1-1/2" KNIVES, 20, 25 & 30 FT, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS
6
40
37
16
5
39
44
35
41
11
19
20
22
29
36
6
7
4
25
27
8
43
13
9
26
12
20.13. 20
33
23
15
31
24
1
14
21
32
18
3
3
42
38
28
16
46
17
47
31
37
31
2
10
30
45
34

Артикул

Название

Примечание

Количество

1

851662

KNIFE

RH 20 Ft

1шт.

1

851663

KNIFE ASSY

LH 20 Ft

1шт.

1

9842537

KNIFE

LH 25 Ft

1шт.

1

9842536

KNIFE

RH 25 Ft

1шт.

1

9820456

KNIFE

LH 30 Ft

1шт.

1

9820457

KNIFE

RH 30 Ft

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

4шт.

4

612408

HUB

Bushing

3шт.

5

288749

SHAFT

2шт.

6

579497

CIRCLIP,M20

Ext, 1.0"

4шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

HH, G5, 5/8"-18 x 3-1/2" UNF

2шт.

8

88902

NUT,3/8"-16

2шт.

9

87446

SLOTTED NUT,5/8"-18

2шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

11

848094

KNIFE HEAD

2шт.

12

NSS

NOT SOLD SEPARAT

Back, LH&RH, Part of Ref 1

1шт.

13

848095

EXTENSION

RH Only

1шт.

14

137636

RIVET,Countersunk Hd, #5 1/2, 7/32" x 5/8"

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 9/16"

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 7/8"

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1-1/8"

1шт.

18

848083

LOCK NUT

G2, #12-24

1шт.

19

766758

KNIFE SECTION

LH, Holes Bevelled Top

2шт.

19

766757

KNIFE SECTION

End, Holes Bevelled Bottom, Qty 1LH, 2RH

1шт.

19

848093

KNIFE SECTION

Holes Countersunk Top

1шт.

Quantity: 20 Ft [37LH, 36RH], 25 Ft [47LH, 46RH], 30 Ft [57LH, 56RH]

1шт.

20

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

21

694295

WEAR PLATE

Wear

3шт.

22

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

21/32" ID x 1-1/8" OD x 0.135"

2шт.

23

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

93шт.

23

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

13шт.

Required when also passing through a clamp.

1шт.

24

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

6шт.

25

694293

WEAR STRIP

Qty 13[20 Ft], 14[25 Ft], 17[30 Ft], 1[25 Ft Rice]

1шт.

26

694945

WEAR STRIP

Qty 2[20 Ft], 4[25 Ft & 30 Ft], 1[25 Ft]

1шт.

27

694294

WEAR PLATE

Wear, Qty 12[20 Ft], 16[25 Ft], 20[30 Ft]

1шт.

28

695233

WEAR PLATE

Qty 6[20 Ft], 8[25 Ft], 10[30 Ft]

1шт.

29

86622663

SHIM,26.99mm OD x 0.25mm Thk

0.010", Qty 35[20 Ft], 45[25 Ft], 55[30 Ft]

1шт.

29

86622662

SHIM

0.036", Qty 35[20 Ft], 45[25 Ft], 55[30 Ft]

1шт.

30

9826150

KNIFE CLIP

1шт.

31

280717

NUT,7/16"-14, G5

1шт.

32

87015706

GUARD

Stub, LH

1шт.

32

87015707

GUARD

Stub, RH

1шт.

33

87015708

GUARD

Stub, Qty 36[20 Ft], 46[25 Ft], 56[30 Ft]

1шт.

34

87015709

GUARD

Stub, Triple

1шт.

35

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

36

694946

WEAR STRIP

25 Ft Rice Only

23шт.

37

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

& Hub Assembly, Includes Ref 4, 5 & 6

1шт.

38

88106

LOCK PIN,3/32" x 1/4", Slotted

1шт.

39

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

40

121189

OIL SEAL

Grease

1шт.

41

86606200

KIT

Overlap, Ref 19 Bevelled Top[Qty 3], Ref 19 Bevelled Bottom[Qty 3], Ref 14[Qty 10]

1шт.

42

86562960

KIT

Kit, Ref 16[Qty 9], Ref 17[Qty 5], Ref 18[Qty 25]

1шт.

43

86507780

KIT

Kit, Ref 17[Qty 25], Ref 18[Qty 25], 1-1/8"

1шт.

44

86507778

KIT

Ref 16[Qty 25], Ref 18[Qty 25], 7/8"

1шт.

45

87015068

BOLT AND NUT

Ref15[Qty 50], Ref18[Qty 50], 9/16"

1шт.

46

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 3/4"

1шт.

47

86517390

BOLT AND NUT

Kit, Ref 46[Qty 25] & Ref 18[Qty 25]

1шт.

Выбрано товаров: 59
