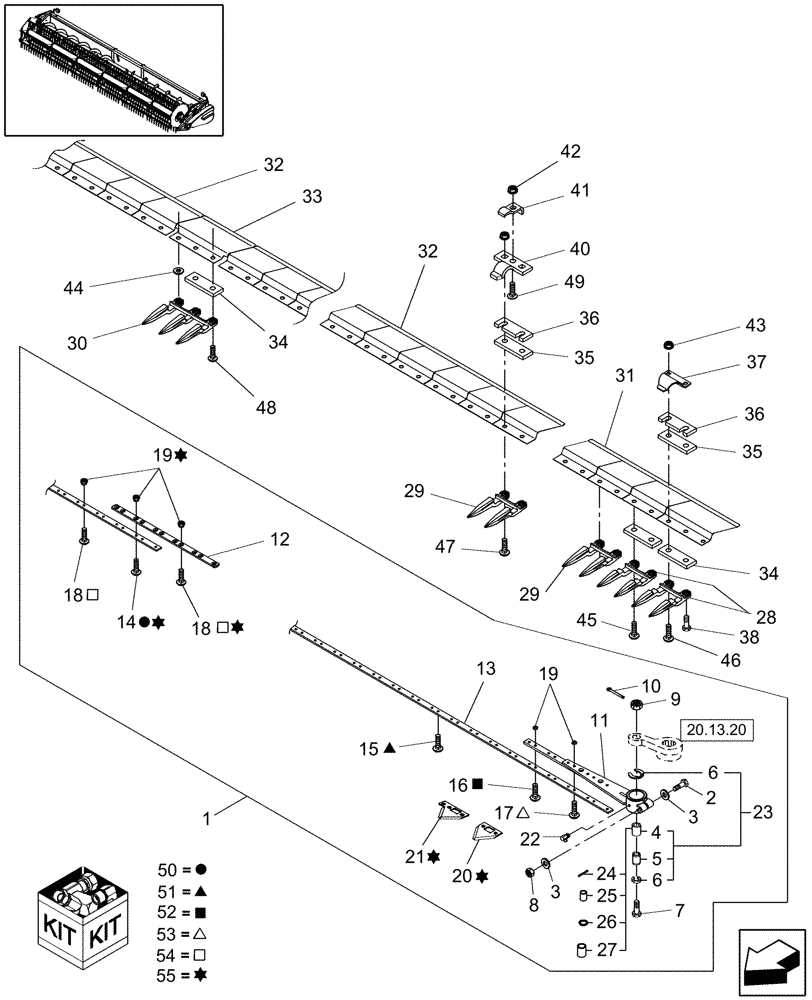

Запчасти Case IH 2020 (20.13.11[3]) - CUTTERBAR, 3" KNIVES, 2020, DOUBLE DRIVE, 30 FT & 35 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87515125

KNIFE ASSY

LH, 30 Ft

1шт.

1

87515126

KNIFE ASSY

RH, 30 Ft

1шт.

1

87630191

KNIFE ASSY

LH, 35 Ft

1шт.

1

87630192

KNIFE ASSY

RH, 35 Ft

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

4шт.

4

612408

HUB

Bushing

2шт.

5

288749

SHAFT

2шт.

6

579497

CIRCLIP,M20

Ext., 1"

4шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

HH, G5, 5/8"-18 x 3-1/2", Drilled

2шт.

8

88902

NUT,3/8"-16

2шт.

9

87446

SLOTTED NUT,5/8"-18

2шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

11

87366898

KNIFE HEAD

2шт.

12

86517388

EXTENSION

RH Only

1шт.

13

86587785

KNIFE

Back, 30 Ft, LH

1шт.

13

86587786

KNIFE

Back, 30 Ft, RH

1шт.

13

87630189

CUTTERBAR

Back, 35 Ft, LH

1шт.

13

87630190

CUTTERBAR

Back, 35 Ft, RH

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 5/8", 30 Ft, Qty 5, See Ref 50

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 5/8", 35 Ft, LH Qty 127, RH Qty 5, See Ref 50

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 9/16"[0.56"], 30 Ft LH Qty 107, RH Qty 98, See Ref 51

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 9/16"[0.56"], 35 Ft RH Only Qty 122, See Ref 51

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 3/4", Qty 4, See Ref 52

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1-1/8", Qty 5, See Ref 53

1шт.

18

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1/2", LH Qty 5, RH Qty 6, See Ref 54

1шт.

19

NSS

NOT SOLD SEPARAT

Nut Lock, #12-24, Supplied W/Ref 50 To 54

1шт.

20

86616691

KNIFE SECTION

30 Ft, LH

58шт.

20

86616691

KNIFE SECTION

30 Ft, RH

56шт.

20

86616691

KNIFE SECTION

35 Ft, LH & RH

68шт.

20

86616694

KNIFE SECTION

Countersunk Top, 30 & 35 Ft, LH

1шт.

20

86616695

KNIFE SECTION

Countersunk Bottom, 30 & 35 Ft, RH

3шт.

21

86615985

KNIFE SECTION

End, RH & LH

2шт.

22

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

23

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

2шт.

24

86544799

LOCK PIN,3/32" x 1/4", Slotted

2шт.

25

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

2шт.

26

121189

OIL SEAL

2шт.

27

NSS

NOT SOLD SEPARAT

Hub

2шт.

28

87442329

GUARD

Double, End

4шт.

29

87442324

GUARD

Double, Qty 54 [30 Ft], 65 [35 Ft]

1шт.

30

87045432

GUARD

Triple, Center

1шт.

31

87390150

PANEL

LH, 30 Ft

1шт.

31

87390142

PANEL

LH, 35 Ft

1шт.

31

87390148

PANEL

RH, 30 & 35 Ft

1шт.

32

87390140

PANEL

Qty 8 [30 Ft], 10 [35 Ft]

8шт.

33

87390152

PANEL

Center

1шт.

34

86512826

SHIM

0.060", Qty 59 [30 Ft], 70 [35 Ft]

1шт.

35

86512832

SHIM,28.57mm OD x 4.78mm Thk

0.120", Qty 28 [30 Ft], 34 [35 Ft]

1шт.

36

86622663

SHIM,26.99mm OD x 0.25mm Thk

0.010", Qty 28 [30 Ft], 34 [35 Ft]

1шт.

37

87517382

BRACKET

High Rise

2шт.

38

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

Extreme end location

2шт.

39

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

Qty 28 [30 Ft], 32 [35 Ft]

1шт.

40

86630786

KNIFE CLIP,Heat Treated

Qty 28 [30 Ft], 32 [35 Ft]

1шт.

41

86630787

KNIFE CLIP

Qty 28 [30 Ft], 32 [35 Ft]

1шт.

42

593045

FLANGE NUT

Lock, 3/8"-16, Qty 28 [30 Ft], 32 [35 Ft]

1шт.

43

280980

NUT,7/16"-14, GC

Qty 119 [30 Ft], 141 [35 Ft]

1шт.

44

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

1шт.

45

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

Qty 12[30 Ft], 15 [35 Ft], Through existing frame clamp

1шт.

46

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

Qty 12[30 Ft], 13 [35 Ft], Through knife clip & existing frame clamp

1шт.

47

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

Qty 44 [30 Ft], 55 [35 Ft], Through knife clip

1шт.

48

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

1шт.

49

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

1шт.

50

86507777

KIT

5/8" Long, Ref 14 & 19, Qty 50 Each

1шт.

51

87015068

BOLT AND NUT

9/16"[0.56"] Long, Ref 15 & 19, Qty 50 Each

1шт.

52

86517390

BOLT AND NUT

3/4" Long, Ref 16 & 19, Qty 25 Each

1шт.

53

86507780

KIT

1-7/8" Long, Ref 17 & 19, Qty 50 Each

1шт.

54

86512289

KIT

1/2" Long, Ref 18 & 19, Qty 25 Each

1шт.

55

87013358

SERVICE KIT

Overlap, 14 Serr./Inch, Ref 18 [6], Ref 14 [5], Ref 19 [11], Ref 20 RH CSB END [3], CST LH [1], Ref 21 [1]

1шт.

55

87013359

SERVICE KIT

Overlap, 10 Serr./Inch, Ref 18 [6], Ref 14 [5], Ref 19 [11], Ref 20 RH CSB END [3], CST LH [1], Ref 21 [1], Standard

1шт.
