Запчасти Case IH 2020 (20.13.11[1]) - CUTTERBAR, 3" KNIVES, 2010/2020, DOUBLE DRIVE, 20 FT, 25 FT & 30 FT BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

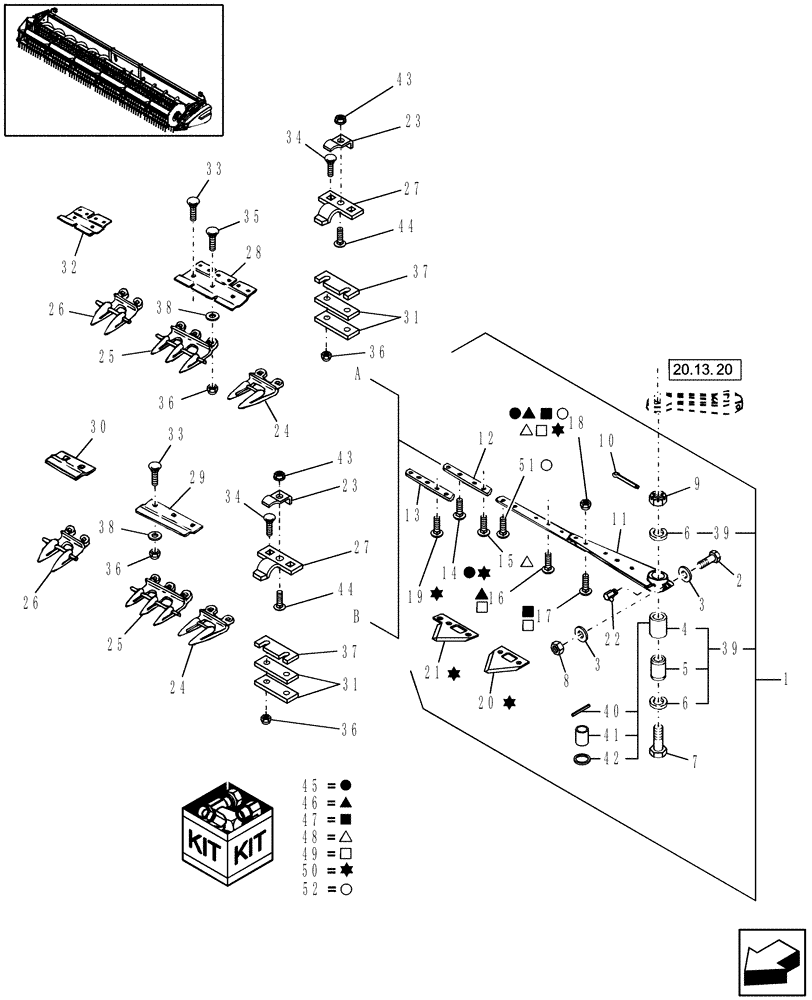

Схема запчастей Case IH 2020 - (20.13.11[1]) - CUTTERBAR, 3" KNIVES, 2010/2020, DOUBLE DRIVE, 20 FT, 25 FT & 30 FT BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS
28
27
36
37
15
33
12
21
23
31
50
38
13
24
24
4
22
6
43
9
36
29
10
38
36
33
18
32
8
51
25
39
23
44
2
b
17
35
41
49
3
42
40
5
1
16
45
14
34
31
34
44
52
47
37
30
a
20
11
26
48
27
46
39
36
6
7
43
25
19
3
26

Артикул

Название

Примечание

Количество

1

86900832

KNIFE ASSY

Standard, LH, 20 FT, View A, 2020

1шт.

1

86900833

KNIFE ASSY

Standard, RH, 20 FT, View A, 2020

1шт.

1

86900834

KNIFE ASSY

Standard, LH, 25 FT, View A, 2020

1шт.

1

86900835

KNIFE ASSY

Standard, RH, 25 FT, View A, 2020

1шт.

1

86633150

KNIFE ASSY

Standard, LH, 25 FT, View B, 2010

1шт.

1

86633151

KNIFE ASSY

Standard, RH, 25 FT, View B, 2010

1шт.

1

86977981

KNIFE ASSY

Standard, LH, 30 FT, View A, 2020

1шт.

1

86977982

KNIFE ASSY

Standard, RH, 30 FT, View A, 2020

1шт.

1

86633148

KNIFE ASSY

Standard, LH, 30 FT, View B, 2010

1шт.

1

86633149

KNIFE ASSY

Standard, RH, 30 FT, View B, 2010

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

4шт.

4

612408

HUB

Bushing

2шт.

5

288749

SHAFT

2шт.

6

579497

CIRCLIP,M20

Ext., 1.0"

4шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

HH, G5, 5/8"-18 x 3-1/2" UNF

2шт.

8

88902

NUT,3/8"-16

2шт.

9

87446

SLOTTED NUT,5/8"-18

2шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

11

848094

KNIFE HEAD

Assembly

2шт.

12

86604529

KNIFE

Back, 20 FT, LH

1шт.

12

86604530

KNIFE

Back, 20 FT, RH

1шт.

12

86589951

KNIFE

Back, 25 FT, LH

1шт.

12

86589952

KNIFE

Back, 25 FT, RH

1шт.

12

86587785

KNIFE

Back, 30 FT, LH

1шт.

12

86587786

KNIFE

Back, 30 FT, RH

1шт.

13

86517388

EXTENSION

RH Only

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 5/8", RH Only, See Ref 45

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 9/16", See Ref 48

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 7/8", See Ref 46

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1-1/8", See Ref 47

1шт.

18

848083

LOCK NUT

G2, #12-24

1шт.

19

86512289

KIT

#12-24 x 1/2" Knife Bolt/Nuts, Qty 25, See Ref 50

1шт.

20

86615987

KNIFE SECTION

CSB, 14 Ser/Inch, 2010, RH, Adjacent Inner End

3шт.

20

86616529

KNIFE SECTION

CSB, 14 Ser/Inch, 2010, RH, Adjacent Inner End, Chrome

3шт.

20

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

OSR, Not CS, 14 Ser/Inch, 2010, RH, Qty 46[25 FT], 56[30 FT]

1шт.

20

86616527

KNIFE SECTION

OSR, Not CS, 14 Ser/Inch, 2010, RH, Chrome, Qty 46[25 FT], 56[30 FT]

1шт.

20

86615986

KNIFE SECTION

CST, 14 Ser/Inch, 2010, LH, Adjacent Inner End

1шт.

20

86616528

KNIFE SECTION

CST, 14 Ser/Inch, 2010, LH, Adjacent Inner End, Chrome

1шт.

20

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

OSR, Not CS, 14 Ser/Inch, 2010, LH, Qty 48[25 FT], 58[30 FT]

1шт.

20

86616527

KNIFE SECTION

OSR, Not CS, 14 Ser/Inch, 2010, LH, Chrome Qty 48[25 FT], 58[30 FT]

1шт.

20

86616695

KNIFE SECTION

CSB, 10 Ser/Inch, 2020, RH, Inner End Position

3шт.

20

86616693

KNIFE SECTION

CSB, 10 Ser/Inch, 2020, RH, Inner End Position, Chrome

3шт.

20

86616691

KNIFE SECTION

Not CS, 10 Ser/Inch, 2020, RH, Qty 36[20 FT], 46[25 FT], 56[30 FT]

1шт.

20

86616689

KNIFE SECTION

Not CS, 10 Ser/Inch, 2020, RH, Chrome, Qty 36[20 FT], 46[25 FT], 56[30 FT]

1шт.

20

86616694

KNIFE SECTION

CST, 10 Ser/Inch, 2020, LH, Adjacent Inner End

1шт.

20

86616692

KNIFE SECTION

CST, 10 Ser/Inch, 2020, LH, Adjacent Inner End, Chrome

1шт.

20

86616691

KNIFE SECTION

Not CS, 10 Ser/Inch, 2020, LH, Qty 38[20 FT], 48[25 FT], 58[30 FT]

1шт.

20

86616689

KNIFE SECTION

Not CS, 10 Ser/Inch, 2020, LH, Chrome, Qty 38[20 FT], 48[25 FT], 58[30 FT]

1шт.

21

86615985

KNIFE SECTION

CSB, 14 Ser/Inch, 2010/2020, LH, Inner End Position

1шт.

21

324070A1

KNIFE SECTION

SECTION, KNIFE 13 Ser/Inch

1шт.

22

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

23

86630787

KNIFE CLIP

Qty 18[20 FT], 22[25 FT], 28[30 FT]

1шт.

24

86615984

GUARD

End, W/trash bar

4шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

24

87442329

GUARD

End, W/O trash bar

4шт.

PIN CBJ020001 and later

1шт.

25

86587787

GUARD

Triple, W/trash bar

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

25

87045432

GUARD

Triple, W/O trash bar

1шт.

PIN CBJ020001 and later

1шт.

26

86615982

GUARD

Double, W/trash bar, Qty 34[20 FT], 44[25 FT], 54[30 FT]

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

26

87442324

GUARD

Double, W/O trash bar, Qty 34[20 FT], 44[25 FT], 54[30 FT]

1шт.

PIN CBJ020001 and later

1шт.

27

86630786

KNIFE CLIP,Heat Treated

2010, Qty 18[20 FT], 22[25 FT], 28[30 FT]

1шт.

28

694295

WEAR PLATE

Wear, 2020

3шт.

29

694945

WEAR STRIP

25 & 30 FT, 2010

3шт.

30

694293

WEAR STRIP

Qty 22[25 FT], 26[30 FT], 2010

1шт.

31

86512826

SHIM

0.060, Qty 18[20 FT], 22[25 FT], 28[30 FT], Used with guard W/trash shield

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

31

86512826

SHIM

0.060, Qty 59[20 FT], 71[25 FT], 86[30 FT], Used with guard W/O trash shield

1шт.

PIN CBJ020001 and later

1шт.

31

634780

SHIM,.120" Thk

Qty 18 [20 FT], 22 [25 FT], 28 [30 FT]

1шт.

32

694294

WEAR PLATE

Wear, 2020, Qty 16[20 FT], 22[25 FT], 26[30 FT]

1шт.

33

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

1шт.

34

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

1шт.

35

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

36

280717

NUT,7/16"-14, G5

1шт.

37

86622663

SHIM,26.99mm OD x 0.25mm Thk

0.010"

1шт.

37

86622662

SHIM

0.036"

1шт.

38

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

Used next to two hole shim at triple guard

1шт.

39

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

& Hub

1шт.

40

88106

LOCK PIN,3/32" x 1/4", Slotted

1шт.

41

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

42

121189

OIL SEAL

Grease

2шт.

43

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

44

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

1шт.

45

86507777

KIT

5/8", Ref 14 & 18, Qty 50 Each

1шт.

46

86507778

KIT

7/8", Ref 16 & 18, Qty 25 Each

1шт.

47

86507780

KIT

1-1/8", Ref 17 & 18, Qty 25 Each

1шт.

48

87015068

BOLT AND NUT

9/16", Ref 15 & 18, Qty 50 Each

1шт.

49

86562960

KIT

Kit, Knife Head, Ref 16[Qty 9], Ref 17[Qty 5], Ref 18[Qty 25]

1шт.

50

87013358

SERVICE KIT

Overlap, 14 Ser/Inch, Qty [5] Sections, Qty [11] 1/2" & Qty [5] 5/8" Bolt/Nuts

1шт.

50

87013359

SERVICE KIT

Overlap, 10 Ser/Inch, Qty [5] Sections, Qty [11] 1/2" & Qty [5] 5/8" Bolt/Nuts

1шт.

51

86517390

BOLT AND NUT

Bolt, Knife, #12-24 x 3/4", Qty 25

1шт.

52

86517390

BOLT AND NUT

Kit, Ref 51[Qty 25] & Ref 18[Qty 25]

1шт.

Выбрано товаров: 97
