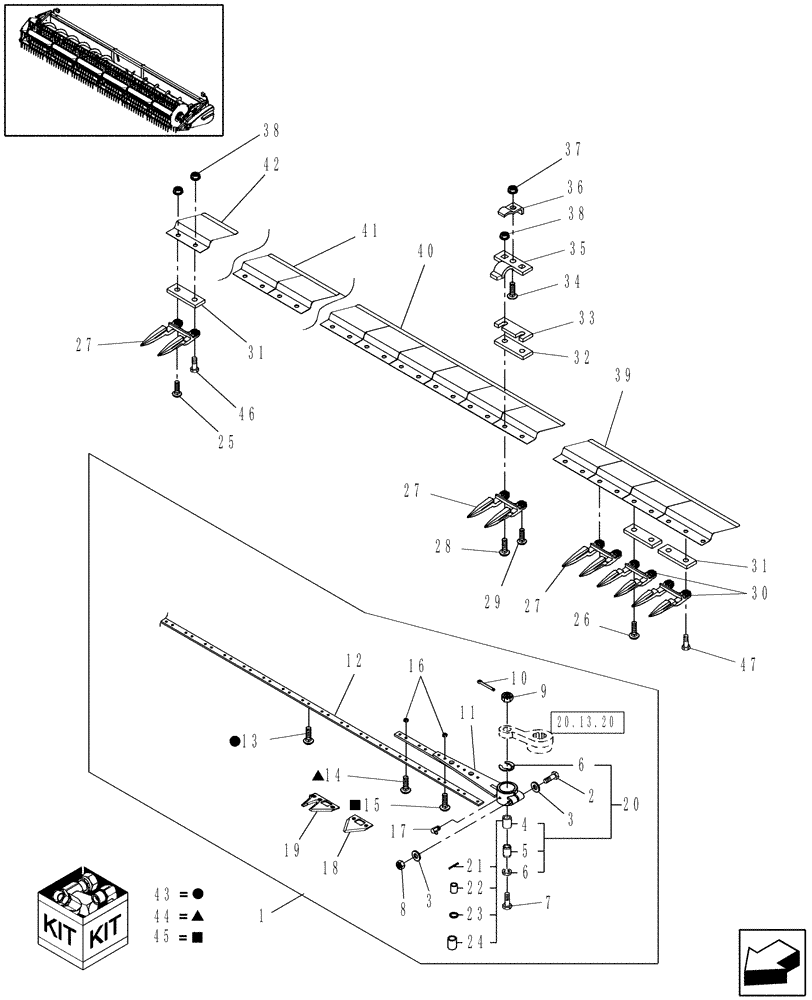

Запчасти Case IH 2020 (20.13.10[3]) - CUTTERBAR, 3" KNIVES, 2020, 20 & 25 FT, SINGLE DRIVE (58) - ATTACHMENTS/HEADERS

1

87566692

KNIFE ASSY

20 Ft

1шт.

1

87046381

KNIFE ASSY

25 Ft

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

4

612408

HUB

1шт.

5

288749

SHAFT

1шт.

6

579497

CIRCLIP,M20

Ext., 1"

2шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

HH, G5, 5/8"-18 x 3-1/2", Drilled

1шт.

8

9637692

NUT,3/8"-16, Gr B

1шт.

9

87446

SLOTTED NUT,5/8"-18

1шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

11

87366898

KNIFE HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 5/8", Qty 20/25 Ft is 148/188, See Ref 43

25шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 7/8", See Ref 44

4шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1-1/8", See Ref 45

5шт.

16

NSS

NOT SOLD SEPARAT

Nut, Lock, #12-24, Qty 20/25 Ft is 157/197, Supplied W/Ref 42 To 44

1шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

18

86616691

KNIFE SECTION

Course, 10 Serrations/Inch, Qty 20/25 Ft is 77/97

1шт.

19

86617760

KNIFE SECTION

Course, 10 Serrations/Inch

1шт.

20

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

1шт.

21

86544799

LOCK PIN,3/32" x 1/4", Slotted

1шт.

22

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

23

121189

OIL SEAL

2шт.

24

NSS

NOT SOLD SEPARAT

1шт.

25

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

Qty 20/25 Ft is 10/12, See Figure Note

1шт.

26

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

Qty 20/25 Ft is 30/38

1шт.

27

87442324

GUARD

3", Double, Qty 20/25 Ft is 38/48

1шт.

28

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

Qty 20/25 Ft is 7/9, See Figure Note

1шт.

29

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

Qty 20/25 Ft is 31/39

1шт.

30

87442329

GUARD

3", End

2шт.

31

86512826

SHIM

0.060", Qty 20/25 Ft is 40/50

1шт.

32

86512832

SHIM,28.57mm OD x 4.78mm Thk

4-1/4" x 1-1/8" x 3/16", Qty 20/25 Ft is 19/24

1шт.

33

86622663

SHIM,26.99mm OD x 0.25mm Thk

0.010", Qty 20/25 Ft is 19/24

1шт.

34

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

Qty 20/25 Ft is 19/24

1шт.

35

86630786

KNIFE CLIP,Heat Treated

Qty 20/25 Ft is 19/24

1шт.

36

86630787

KNIFE CLIP

Qty 20/25 Ft is 19/24

1шт.

37

593045

FLANGE NUT

Lock, 3/8"-16, Qty 20/25 Ft is 19/24

1шт.

38

280717

NUT,7/16"-14, G5

Qty 20/25 Ft is 80/100

1шт.

39

87390150

PANEL

4 Section, 9 Holes

1шт.

40

87390140

PANEL

6 Section, 12 Holes, Qty 20/25 Ft is 5/7

1шт.

41

87390146

PANEL

4 Section, 8 Holes, 20 Ft

1шт.

41

87390144

PANEL

2 Section, 4 Holes, 25 Ft

1шт.

42

87540675

OUTER SHIELD

1 Section, 2 Holes, End Piece

1шт.

43

86507777

KIT

5/8" Long, Ref 13 & 16, Qty 50 Each

1шт.

44

86507778

KIT

7/8" Long, Ref 14 & 16, Qty 25 Each

1шт.

45

86507780

KIT

1-1/8" Long, Ref 15 & 16, Qty 25 Each

1шт.

46

280747

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

1шт.

47

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

1шт.
