Запчасти Case IH 2020 (20.13.10[1]) - CUTTERBAR, 3" KNIVES, 2010, 20 FT, SINGLE DRIVE, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

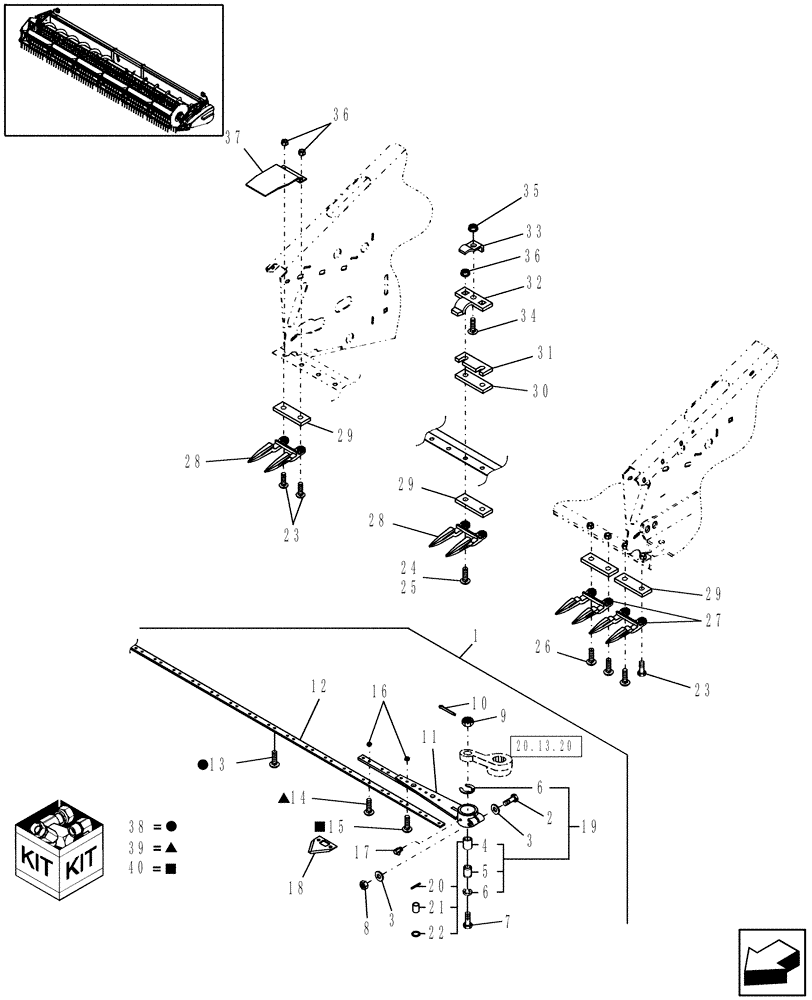

Схема запчастей Case IH 2020 - (20.13.10[1]) - CUTTERBAR, 3" KNIVES, 2010, 20 FT, SINGLE DRIVE, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS
35
22
25
29
17
36
40
12
27
3
13
19
37
2
33
11
6
30
28
28
7
31
15
16
23
14
20.13.20
5
6
9
8
10
4
1
20
38
32
29
36
26
24
21
23
39
29
3
34
18

Артикул

Название

Примечание

Количество

1

87641088

KNIFE ASSY

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

4

612408

HUB

Bushing

1шт.

5

288749

SHAFT

1шт.

6

579497

CIRCLIP,M20

1"

2шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

Drilled

1шт.

8

88902

NUT,3/8"-16

1шт.

9

87446

SLOTTED NUT,5/8"-18

UNF

1шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

11

848094

KNIFE HEAD

1шт.

12

87641087

1шт.

13

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 5/8"

149шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 7/8"

4шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1-1/8"

5шт.

16

848083

LOCK NUT

#12-24

158шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

18

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

79шт.

19

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

1шт.

20

88106

LOCK PIN,3/32" x 1/4", Slotted

1шт.

21

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

22

121189

OIL SEAL

1шт.

23

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

37шт.

24

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

35шт.

25

280804

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

When also passing through an existing clamp on frame

3шт.

26

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

When also passing through an existing clamp on frame

5шт.

27

87442329

GUARD

End position

2шт.

28

87442324

GUARD

38шт.

29

86512826

SHIM

0.060"

40шт.

30

86512832

SHIM,28.57mm OD x 4.78mm Thk

0.188"

19шт.

31

86622662

SHIM

0.036"

38шт.

32

86630786

KNIFE CLIP,Heat Treated

19шт.

33

86630787

KNIFE CLIP

19шт.

34

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

19шт.

35

593045

FLANGE NUT

19шт.

36

87517

NUT,7/16"-14, GB

80шт.

37

87540675

OUTER SHIELD

1шт.

38

86507777

KIT

Ref13 & 16, Qty 50 Each

1шт.

39

86507778

KIT

Ref14 & 16, Qty 25 Each

1шт.

40

86507780

KIT

Ref 15 & 16, Qty 25 Each

1шт.

Выбрано товаров: 40
