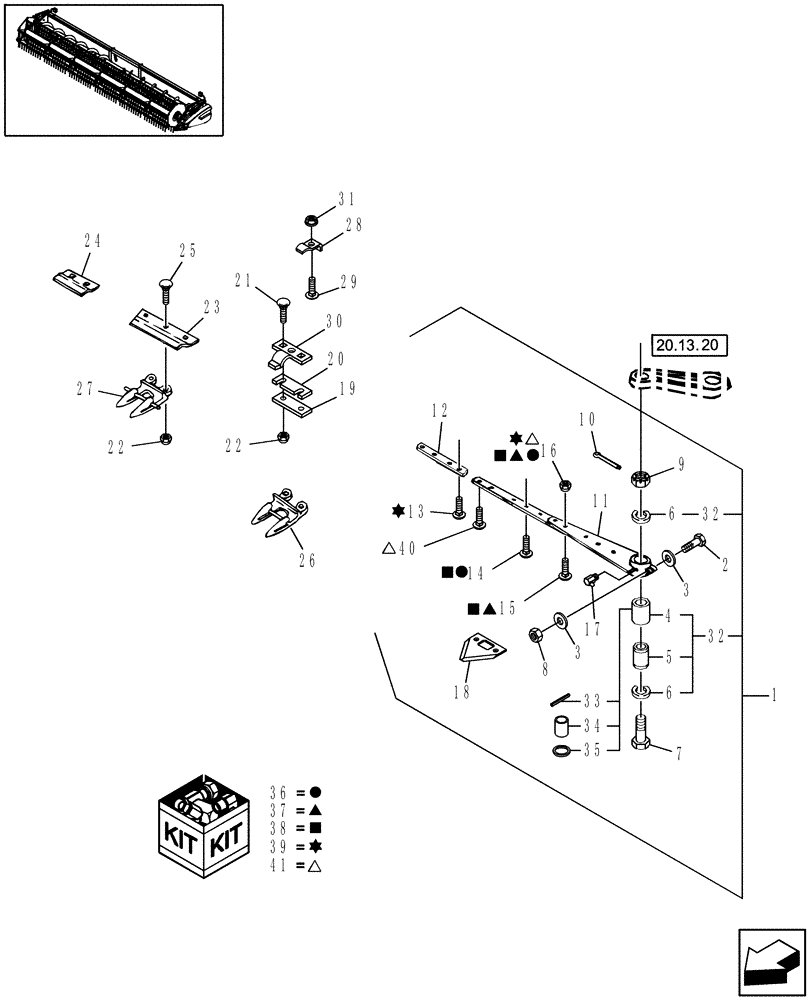

Запчасти Case IH 2020 (20.13.10[1]) - CUTTERBAR, 3" KNIVES, 2010, 20 FT, SINGLE DRIVE, BPIN CBJ021301 (58) - ATTACHMENTS/HEADERS

1

86900830

KNIFE ASSY

Standard

1шт.

2

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

2шт.

4

612408

HUB

Bushing

1шт.

5

288749

SHAFT

1шт.

6

579497

CIRCLIP,M20

Ext., 1.0"

2шт.

7

762691

BOLT,Spcl, 5/8" - 18 x 3 1/2", Gr 5, Drilled

HH, G5, 5/8"-18 x 3-1/2" UNF

1шт.

8

88902

NUT,3/8"-16

1шт.

9

87446

SLOTTED NUT,5/8"-18

1шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

11

848094

KNIFE HEAD

1шт.

12

86604791

KNIFE BACK

Back

1шт.

13

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 9/16"

1шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 7/8"

1шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 1-1/8"

1шт.

16

848083

LOCK NUT

G2, #12-24

158шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

18

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

OSR, Not CS, 14 Ser/Inch

79шт.

18

86616527

KNIFE SECTION

OSR, Not CS, 14 Ser/Inch, Chrome

79шт.

19

86512826

SHIM

0.060"

19шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

19

86512826

SHIM

0.060"

59шт.

PIN CBJ020001 and later

1шт.

19

634780

SHIM,.120" Thk

19шт.

20

86622662

SHIM

0.036"

19шт.

20

86622663

SHIM,26.99mm OD x 0.25mm Thk

0.010"

38шт.

21

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

38шт.

22

280717

NUT,7/16"-14, G5

79шт.

23

694945

WEAR STRIP

1шт.

24

694293

WEAR STRIP

19шт.

25

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

43шт.

26

86615984

GUARD

End, W/ trash guard

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

26

87442329

GUARD

End, W/O trash guard

2шт.

PIN CBJ020001 and later

1шт.

27

86615982

GUARD

Double, W/ trash guard

38шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

27

87442324

GUARD

Double, W/O trash guard

38шт.

PIN CBJ020001 and later

1шт.

28

86630787

KNIFE CLIP

19шт.

29

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

19шт.

30

86630786

KNIFE CLIP,Heat Treated

Hold Down

19шт.

31

86521609

FLANGE NUT,Flg, 3/8"-16

19шт.

32

701401

BUSHING,Knife Head, .865" ID x .999" OD x 1.94" L

And Hub

1шт.

33

88106

LOCK PIN,3/32" x 1/4", Slotted

1шт.

34

612407

BUSHING,25.41mm ID x 28.7mm OD x 25.4mm L

1шт.

35

121189

OIL SEAL

Grease

1шт.

36

86507778

KIT

Ref 14 [7/8" Long] and 16, Qty 25 Each

1шт.

37

86507780

KIT

Ref 15 [1-1/8" Long] and 16, Qty 25 Each

1шт.

38

86562960

KIT

Ref 14[Qty 9], Ref15[Qty 6], Ref 16[Qty 25]

1шт.

39

87015068

BOLT AND NUT

Ref 13 [9/16" Long] and Ref 16, Qty 50 Each

1шт.

40

NSS

NOT SOLD SEPARAT

Bolt, Knife, #12-24 x 3/4"

1шт.

41

86517390

BOLT AND NUT

Kit, Ref 40[Qty 25] & Ref16[Qty 25]

1шт.
