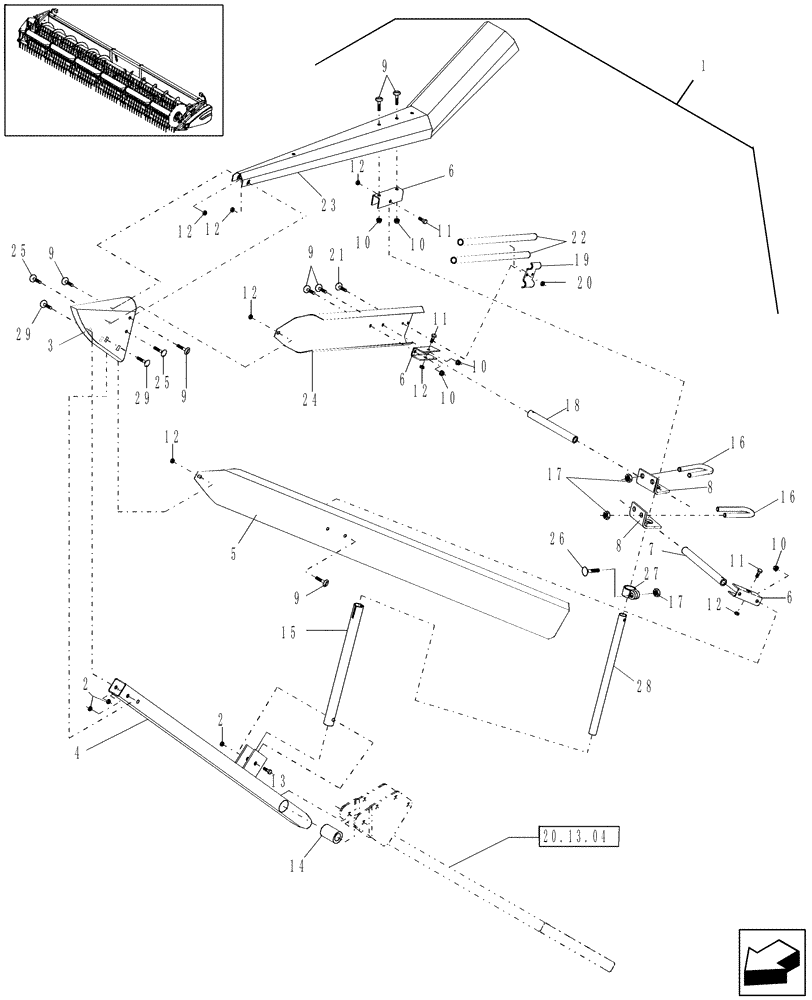

Запчасти Case IH 2020 (20.13.06) - LONG DIVIDER (58) - ATTACHMENTS/HEADERS

1

87548556

PACKAGE,SERVICE

20/25 Ft, Also Includes 20.13.05

1шт.

1

87053604

DIA KIT, HARVESTER

30/35 Ft, Also Includes 20.13.05

1шт.

2

88902

NUT,3/8"-16

6шт.

3

86997152

DIVIDER POINT

Wing Tube

2шт.

4

87017754

TUBE

Wing Box, Support

2шт.

5

87017760

SUPPORT

Wing Outer

2шт.

6

86627644

SUPPORT

6шт.

7

87017856

TUBE,21.34 mm OD x 190 mm L

Outer, Wing Support

2шт.

8

86627642

ANGLE

4шт.

9

280696

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

16шт.

10

9823743

FLANGE NUT,Flg, 5/16"-18

12шт.

11

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

6шт.

12

231-4145

NUT,5/16"-18, GB

14шт.

13

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

14

515308

BUSHING,25.48mm ID x 28.68mm OD x 25.4mm L

2шт.

15

87017756

TUBE,23.03 mm ID x 28.57 mm OD x 390 mm L

Outer, Vertical, Wing Support

2шт.

16

86997191

U-BOLT

1/2"-13, 1-21/32" x 3-5/64"

4шт.

17

88871

NUT,1/2"-13, GC

10шт.

18

87017753

TUBE,21.34 mm OD x 225 mm L

Inner Wing Support

2шт.

19

86997188

CLAMP

2шт.

20

20356

NUT,1/4"-20, GB

4шт.

21

87252

SCREW,Slotted Truss Hd, 1/4" - 20 x 1"

4шт.

22

86997190

TUBE,15.24 mm ID x 19.05 mm OD x 450 mm L

Tine

4шт.

23

87017761

SUPPORT

Wing, Upper

2шт.

24

87017757

SUPPORT ASSY.

Wing Inner

2шт.

25

619978

SCREW

Truss Hd, USR, 5/16" x 1"

4шт.

26

280624

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

27

86627643

CLAMP

1-1/8"

2шт.

28

87017755

TUBE,22.22 mm OD x 390 mm L

Vertical, Inner

2шт.

29

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

4шт.
