Запчасти Case IH 2020 (20.13.05) - LONG DIVIDER MOUNT (58) - ATTACHMENTS/HEADERS

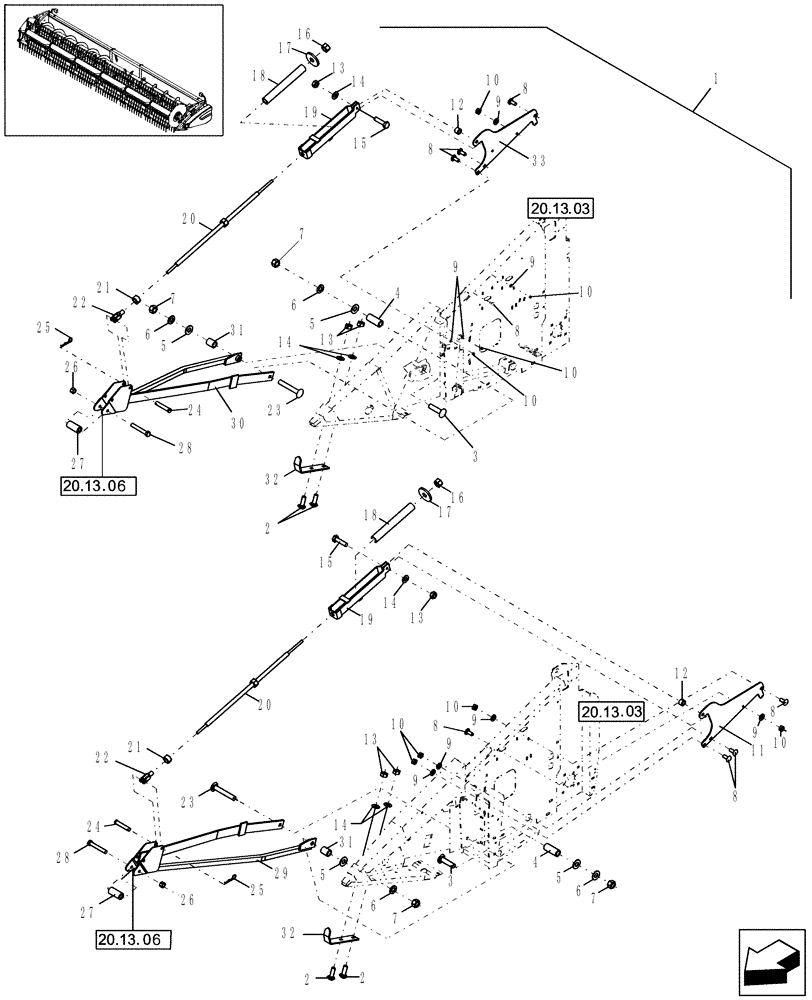

Схема запчастей Case IH 2020 - (20.13.05) - LONG DIVIDER MOUNT (58) - ATTACHMENTS/HEADERS
19
7
6
31
24
28
8
8
12
11
22
20
13
2
16
2
33
13
26
30
13
17
27
31
26
21
14
32
6
10
14
9
9
23
9
10
24
3
15
8
8
5
5
17
10
2
4
12
5
6
25
7
18
5
9
9
23
16
20
25
4
6
10
1
8
10
15
19
9
21
29
18
14
10
8
22
27
32
13
7
9
7
14
28
10
3

Артикул

Название

Примечание

Количество

1

87042132

DIVIDER

Assembly [Ref 11 BPIN used for LH & RH], Double Knife Drive

1шт.

BPIN CBJ020205 [Includes all HAJ PIN's]

1шт.

1

87548556

PACKAGE,SERVICE

20/25 Ft, For MY2007 And Later, Also Includes 20.13.06, Single Knife Drive, See Figure Note

1шт.

PIN CBJ020205 and later

1шт.

1

87053604

DIA KIT, HARVESTER

30/35 Ft, For MY2006 And Earlier, Also Includes 20.13.06, Double Knife Drive

1шт.

PIN CBJ020205 and later

1шт.

1

87544034

PACKAGE,SERVICE

20/25 Ft, For MY2007 And Later, Also Includes 20.13.06, Single Knife Drive

1шт.

2

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

3

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

2шт.

4

86546424

SPACER

1.84" Long

2шт.

5

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

7

9706685

NUT,M12 x 1.75, Cl 8

4шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

9706690

NUT,M8 x 1.25, Cl 8

4шт.

11

87017752

BRACKET

LH & RH

2шт.

BPIN CBJ020205 [Includes all HAJ PIN's]

1шт.

11

87039744

BRACKET

LH [Can be used on earlier machines]

1шт.

PIN CBJ020205 and later

1шт.

12

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

2шт.

13

100016

NUT,M10 x 1.5, Cl 8

6шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

15

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

16

280431

NUT,1/2"-13, G5

2шт.

17

86520929

WASHER

17/32" ID x 1-5/8" OD x 1/4"

2шт.

18

80621023

SPRING

Compression

2шт.

19

87017742

STRAP

Red

2шт.

19

87592143

STRAP

Black

2шт.

20

87592141

CONNECTING LINK

Black

2шт.

21

87309

JAM NUT,Jam, 1/2"-20, G2

2шт.

22

86627455

CLEVIS,1/2" - 20

2шт.

23

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

24

9801244

PIN,12.6mm OD x 71.53mm L

Pin

2шт.

25

86628570

COTTER PIN

M4 x 62

2шт.

26

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

27

86627294

SPACER

2шт.

28

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

29

87041521

FRAME ASSY

LH

1шт.

BPIN CBJ020205 [Includes all HAJ PIN's]

1шт.

29

87701798

FRAME ASSY

LH

1шт.

PIN CBJ020205 and later

1шт.

30

87041518

FRAME ASSY

RH, 265mm Yoke Opening, Double Knife Drive

1шт.

BPIN CBJ020205 [Includes all HAJ PIN's]

1шт.

30

87369549

FRAME ASSY

RH, 20/25 Ft, 134mm Yoke Opening, Single Knife Drive, See Figure Note

1шт.

PIN CBJ020205 and later

1шт.

30

87701937

FRAME ASSY

RH, 30/35 Ft, 265mm Yoke Opening, Double Knife Drive

1шт.

PIN CBJ020205 and later

1шт.

31

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

0.94" Long

2шт.

32

87017725

ANGLE

2шт.

33

87579293

BRACKET

RH [Can be used on earlier machines]

1шт.

PIN CBJ020205 and later

1шт.

Выбрано товаров: 52
