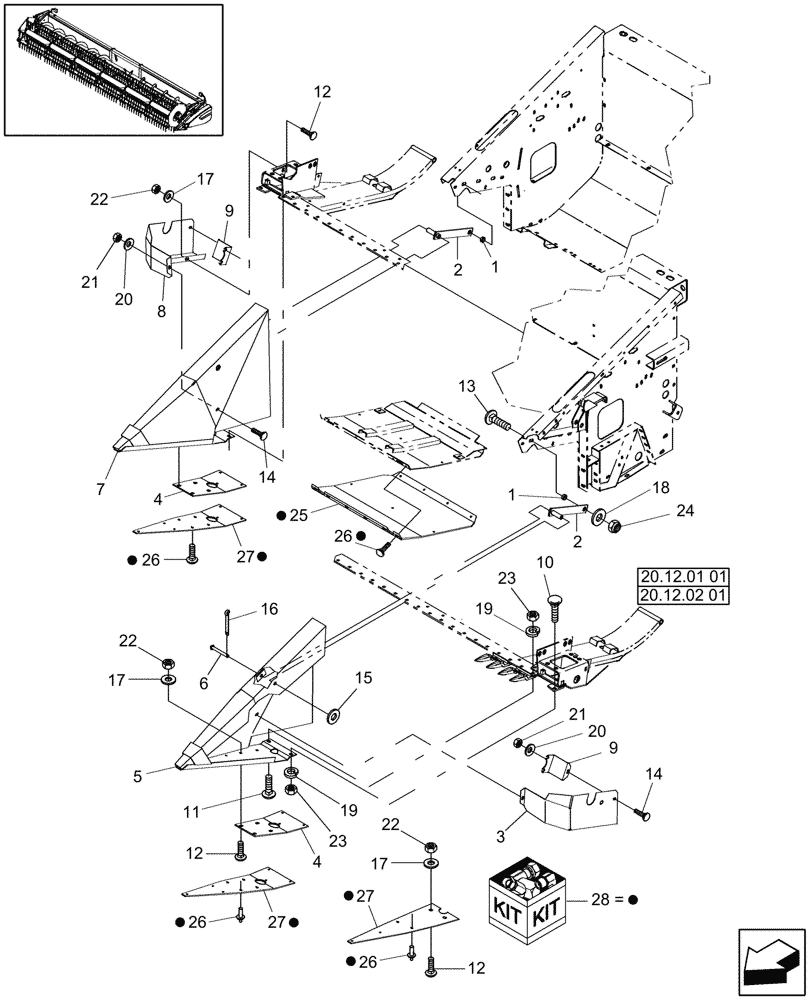

Запчасти Case IH 2020 (20.13.03[1]) - DIVIDER POINT & SKID SHOES, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

131522

SPACER

Split

2шт.

2

610946

ARM

2шт.

3

86603425

SHIELD

LH

1шт.

4

86552779

BRACKET

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

4

87041473

BRACKET

Not Used On MY06 [CBJ020701] units and after

2шт.

PIN CBJ020001 to CBJ020700

1шт.

5

87017566

POINT

LH

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

5

87040655

DIVIDER

LH

1шт.

PIN CBJ020001 to CBJ020700

1шт.

5

87369869

DIVIDER ASSY.

LH

1шт.

PIN CBJ020701 TO CBJ021300

1шт.

6

38734

CLEVIS PIN

1/2" x 4"

2шт.

7

87017567

POINT

RH

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

7

87040657

DIVIDER

RH

1шт.

PIN CBJ020001 to CBJ020700

1шт.

7

87369877

DIVIDER ASSY.

RH

1шт.

PIN CBJ020701 TO CBJ021300

1шт.

8

86603426

SHIELD

RH

1шт.

9

86604958

BRACKET

2шт.

10

86508776

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1", Gr 5, Full Thd

2шт.

11

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

2шт.

12

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

13

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

16

87019

COTTER PIN,3/16" x 3/4"

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

19

81547

LOCK WASHER,7/16"

4шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

21

9706690

NUT,M8 x 1.25, Cl 8

4шт.

22

100016

NUT,M10 x 1.5, Cl 8

10шт.

23

280717

NUT,7/16"-14, G5

4шт.

24

100038

NUT,M12 x 1.75, Cl 8

2шт.

25

86541350

SKID PLATE

Poly, End

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

25

87041364

SKID PLATE

Poly, End

2шт.

PIN CBJ020001 to CBJ020700

1шт.

25

87056684

SKID/SHOE

Poly, End

2шт.

PIN CBJ020701 TO CBJ021300

1шт.

25

86541351

SKID PLATE

Poly, Center, Qty 6, 20 Ft; Qty 8, 25 Ft; Qty 10, 30 Ft

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

25

87041363

SKID PLATE

Poly, Center, Qty 6, 20 Ft; Qty 8, 25 Ft; Qty 10, 30 Ft

1шт.

PIN CBJ020001 to CBJ020700

1шт.

25

87056685

SKID/SHOE

Poly, Center, Qty 7, 20 Ft; Qty 9, 25 Ft; Qty 11, 30 Ft

1шт.

PIN CBJ020701 TO CBJ021300

1шт.

26

86548631

RIVET,Pop, 6.3mm OD x 11.9mm L

0.25 x 0.47 Alum, 20 Ft

142шт.

26

86548631

RIVET,Pop, 6.3mm OD x 11.9mm L

0.25 x 0.47 Alum, 25 Ft

172шт.

26

86548631

RIVET,Pop, 6.3mm OD x 11.9mm L

0.25 x 0.47 Alum, 30 Ft

202шт.

27

86548295

SKID PLATE

Poly, Hole In Center, Dual Drive

2шт.

BPIN CBJ020701

1шт.

27

87368493

SKID/SHOE

Poly, No Hole In Center, Dual Drive

2шт.

PIN CBJ020701 TO CBJ021300

1шт.

28

86556627

DIA KIT, HARVESTER

Poly Skid Shoes, 20 Ft

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

28

87049703

KIT

Poly Skid Shoes, 20 Ft

1шт.

PIN CBJ020001 to CBJ020700

1шт.

28

87387733

SHOE

Poly Skid Shoes, 20 Ft

1шт.

PIN CBJ020701 TO CBJ021300

1шт.

28

86556628

DIA KIT, HARVESTER

Poly Skid Shoes, 25 Ft

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

28

87049705

KIT

Poly Skid Shoes, 25 Ft

1шт.

PIN CBJ020001 to CBJ020700

1шт.

28

87387732

SHOE

Poly Skid Shoes, 25 Ft

1шт.

PIN CBJ020701 TO CBJ021300

1шт.

28

86556629

DIA KIT, HARVESTER

Poly Skid Shoes, 30 Ft

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

28

87049707

KIT

Poly Skid Shoes, 30 Ft

1шт.

PIN CBJ020001 to CBJ020700

1шт.

28

87387731

SHOE

Poly Skid Shoes, 30 Ft

1шт.

PIN CBJ020701 TO CBJ021300

1шт.
