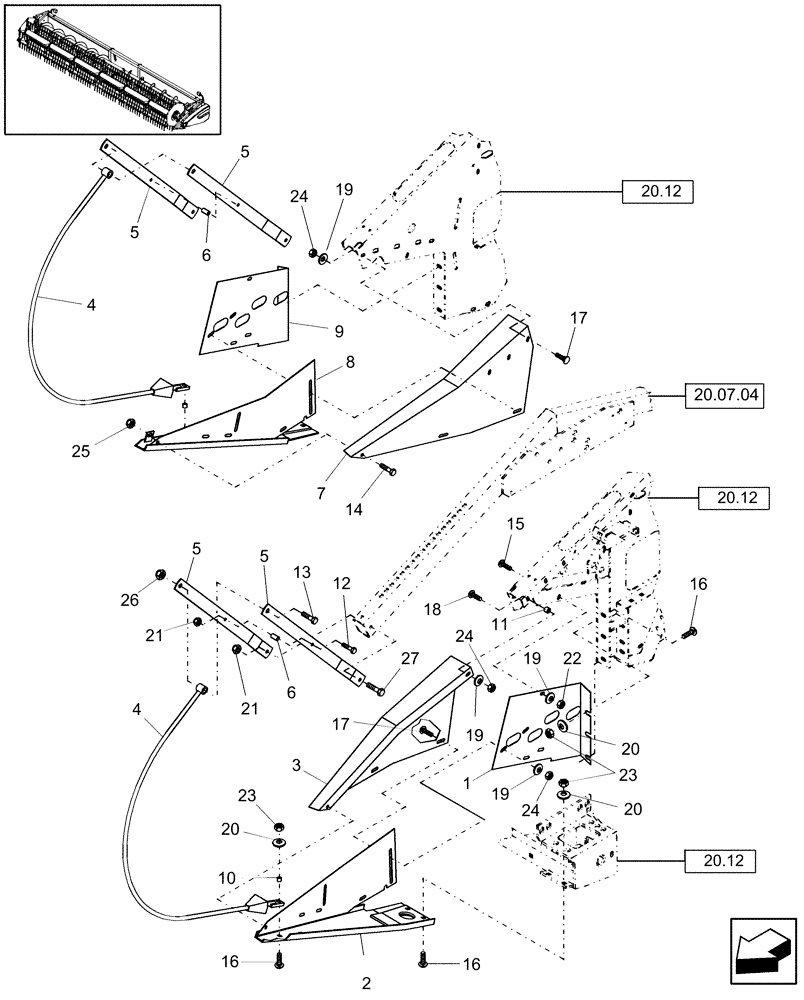

Запчасти Case IH 2020 (20.13.02[1]) - DIVIDER, LOOP, 25 FT & [30 FT BPIN CBJ021301] [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

87017634

PLATE

LH

1шт.

2

87017628

DIVIDER

LH

1шт.

3

87017629

SHIELD

LH

1шт.

4

694747

DIVIDER

2шт.

5

626667

DIVIDER

Arm

4шт.

6

856964

BUSHING

2шт.

7

87017630

SHIELD

RH

1шт.

8

87017635

DIVIDER

RH

1шт.

9

87017636

PLATE

RH

1шт.

10

86633335

SPACER

2шт.

11

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

12

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

13

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

14

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

16

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

10шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

18

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

2шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

21

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

100016

NUT,M10 x 1.5, Cl 8

10шт.

24

9706690

NUT,M8 x 1.25, Cl 8

8шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

26

100038

NUT,M12 x 1.75, Cl 8

2шт.

27

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.
