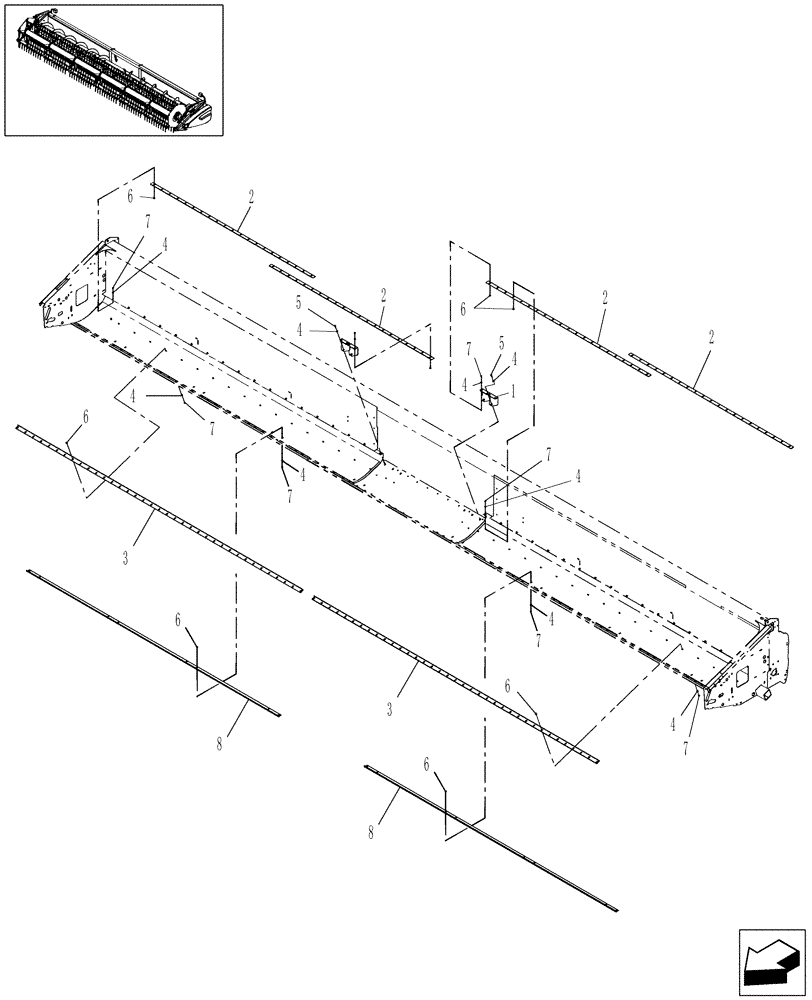

Запчасти Case IH 2020 (20.12.06[2]) - AUGER STRIPPERS, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87516035

BRACKET

4шт.

2

87538091

STRIPPER

20 Ft

4шт.

2

87538089

STRIP

25 Ft

4шт.

2

87516037

STRIP

30 Ft

4шт.

2

87516269

STRIP

35 Ft

4шт.

3

87022192

ANGLE

20 Ft

2шт.

3

87022099

ANGLE

25 Ft

2шт.

3

87022153

ANGLE

30 Ft

2шт.

3

87052032

ANGLE

35 Ft

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20 Ft

52шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

25 Ft

82шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

30 Ft

94шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

35 Ft

110шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

20 Ft

46шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

25 Ft

76шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

30 Ft

88шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

35 Ft

104шт.

7

9706690

NUT,M8 x 1.25, Cl 8

20 Ft

46шт.

7

9706690

NUT,M8 x 1.25, Cl 8

25 Ft

76шт.

7

9706690

NUT,M8 x 1.25, Cl 8

30 Ft

88шт.

7

9706690

NUT,M8 x 1.25, Cl 8

35 Ft

104шт.

8

84160444

SHEET METAL

25 Ft, Extra Stripper Added MY 2010

2шт.

PIN Y9ZL52001 and after

1шт.

8

84160442

SHEET METAL

30 Ft, Extra Stripper Added MY 2010

2шт.

PIN Y9ZL52001 and after

1шт.

8

84160440

SHEET METAL

35 Ft, Extra Stripper Added MY 2010

2шт.

PIN Y9ZL52001 and after

1шт.
