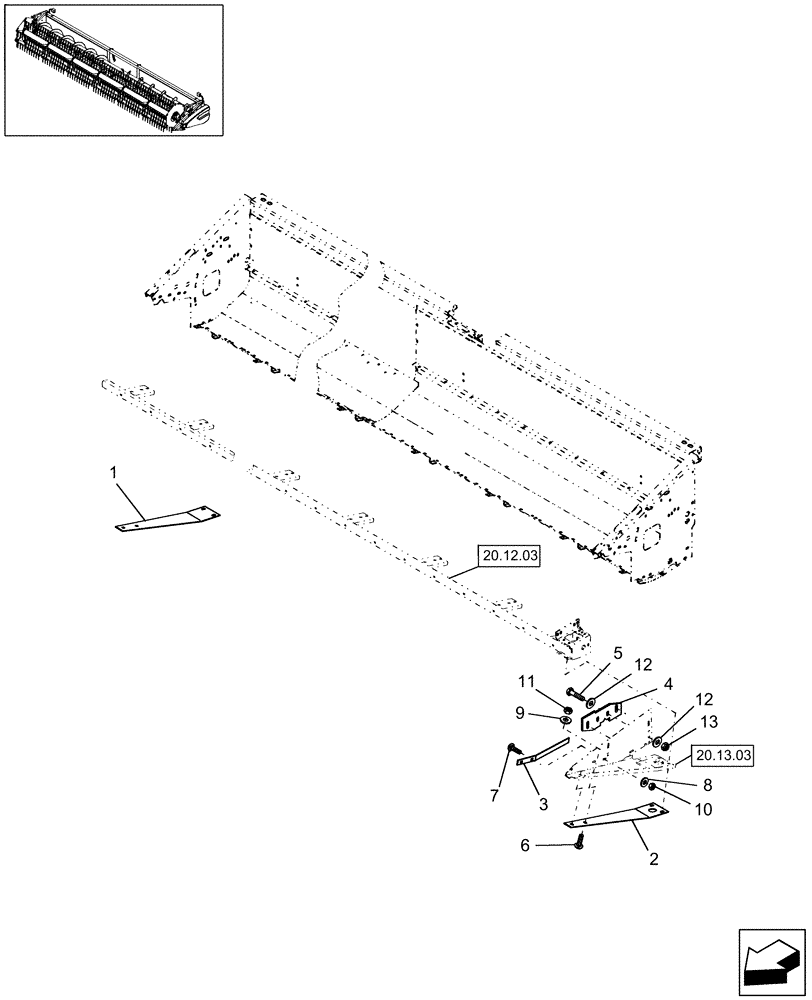

Запчасти Case IH 2020 (20.12.04) - MAIN FRAME ADDITIONS, 2010, RICE, 20 FT AND 25 FT (58) - ATTACHMENTS/HEADERS

1

610813

SHOE

Wear, RH, 20 Ft Only

1шт.

2

610811

SHOE

Wear, LH & RH 25 Ft, Qty [1] 20 Ft LH

2шт.

3

798812

GUIDE

Crop

2шт.

4

798813

KNIFE

Stripper

2шт.

5

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

495-21038

WASHER,5/16"

6шт.

13

9628098

NUT,M8 x 1.25, Cl 10

6шт.
