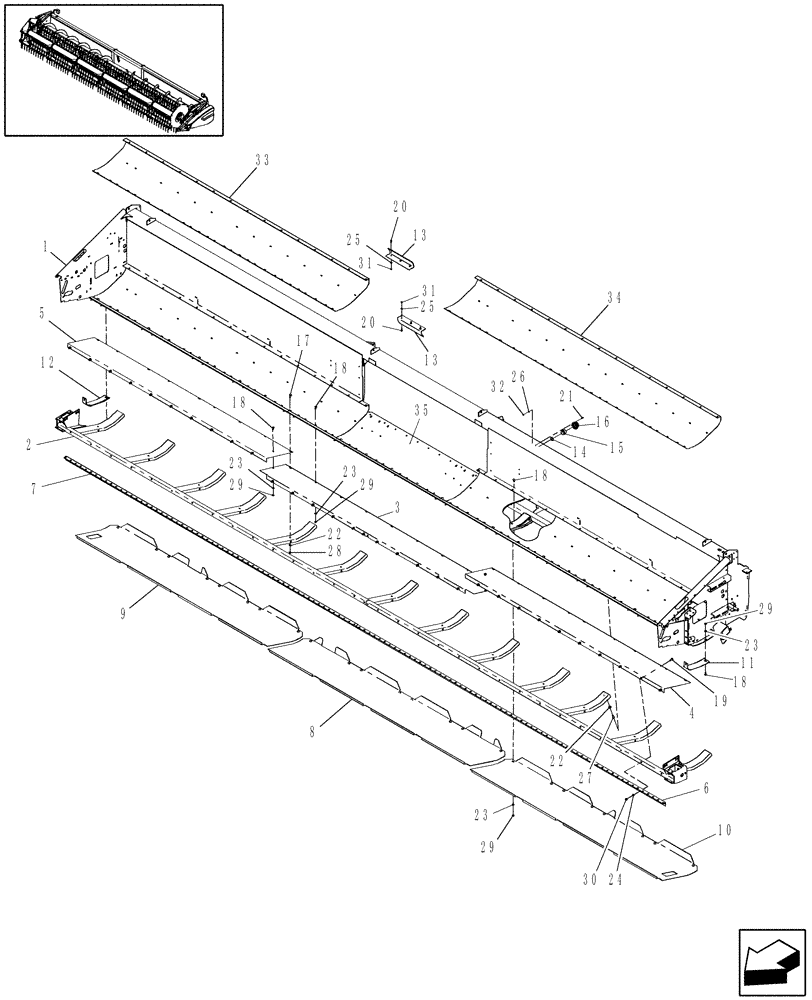

Запчасти Case IH 2020 (20.12.03[2]) - MAIN FRAME & FLOORS, 2010, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

87356121

FRAME ASSY

20 Ft

1шт.

1

87045492

FRAME ASSY

25 Ft

1шт.

BPIN Y9ZL52001

1шт.

1

84162591

FRAME

25 Ft

1шт.

PIN Y9ZL52001 and after

1шт.

1

87045416

FRAME ASSY

30 Ft

1шт.

BPIN Y9ZL52001

1шт.

1

84162589

FRAME

30 Ft

1шт.

PIN Y9ZL52001 and after

1шт.

2

84176702

CUTTERBAR

20 Ft

1шт.

2

87602265

CUTTERBAR

25 Ft

1шт.

2

87517410

CUTTERBAR

30 Ft

1шт.

3

87604645

FLOOR

1шт.

4

87638429

FLOOR

20 Ft, LH

1шт.

4

87604584

FLOOR

25 Ft, LH

1шт.

4

87520497

FLOOR

30 Ft, LH

1шт.

5

87638430

FLOOR

20 Ft, RH

1шт.

5

87604585

FLOOR

25 Ft, RH

1шт.

5

87520498

FLOOR

30 Ft, RH

1шт.

6

87015636

ANGLE

20 Ft, LH & RH, No Ref 7 Req'd

1шт.

6

87015634

ANGLE

25 Ft, LH, Black

1шт.

6

87015619

ANGLE

30 Ft, LH

1шт.

7

87045905

25 Ft, RH, Red

1шт.

7

87015617

ANGLE

30 Ft, RH

1шт.

8

87658078

PLATE ASSY.

Center, Right Half, See Figure Note

1шт.

8

87658076

PLATE ASSY.

Center, Left Half, See Figure Note

1шт.

9

87638433

PLATE ASSY.

20 Ft, RH

1шт.

9

87055128

PLATE ASSY.

25 Ft, RH

1шт.

9

87658079

PLATE ASSY.

30 Ft, RH, Left Half, See Figure Note

1шт.

9

87658080

PLATE ASSY.

30 Ft, RH, Right Half, See Figure Note

1шт.

10

87638431

PLATE ASSY.

20 Ft, LH

1шт.

10

87055127

PLATE ASSY.

25 Ft, LH

1шт.

10

87658081

PLATE ASSY.

30 Ft, LH, Right Half, See Figure Note

1шт.

10

87658082

PLATE ASSY.

30 Ft, LH, Left Half, See Figure Note

1шт.

11

87060761

PLATE ASSY.

LH

1шт.

12

87060762

PLATE ASSY.

RH

1шт.

13

87019394

SWEEP

Auger Attachment

2шт.

14

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

15

Header, See Fig 20.06.05

1шт.

16

86606228

COVER

1шт.

17

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

Qty 9, 11 & 13

1шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

Qty 28, 34 & 42

1шт.

19

86508777

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

Qty 20, 26 & 31

1шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

21

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Qty 9, 11 & 13

1шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

Qty 28, 34 & 42

1шт.

24

Not Required [associated nuts revised to lock nuts]

1шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

26

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

Qty 9, 11 & 13

1шт.

28

100038

NUT,M12 x 1.75, Cl 8

Qty 9, 11 & 13

1шт.

29

100016

NUT,M10 x 1.5, Cl 8

Qty 28, 34 & 42

1шт.

30

87517

NUT,7/16"-14, GB

Qty 20, 26 & 31

1шт.

31

9706690

NUT,M8 x 1.25, Cl 8

6шт.

32

86508813

NUT,M5, Cl 8

4шт.

33

87356147

FLOOR

20 Ft, RH

1шт.

33

87045288

FLOOR

25 Ft, RH

1шт.

BPIN Y9ZL52001

1шт.

33

84162608

FLOOR

25 Ft, RH

1шт.

PIN Y9ZL52001 and after

1шт.

33

87399425

FLOOR

30 Ft, RH

1шт.

BPIN Y9ZL52001

1шт.

33

84162602

FLOOR

30 Ft, RH

1шт.

PIN Y9ZL52001 and after

1шт.

34

87356150

FLOOR

20 Ft, LH

1шт.

34

87045285

FLOOR

25 Ft, LH

1шт.

BPIN Y9ZL52001

1шт.

34

84162611

FLOOR

25 Ft LH

1шт.

PIN Y9ZL52001 and after

1шт.

34

87399426

FLOOR

30 Ft, LH

1шт.

BPIN Y9ZL52001

1шт.

34

84162605

FLOOR

30 Ft, LH

1шт.

PIN Y9ZL52001 and after

1шт.

35

87516032

FLOOR

Center, Welded

1шт.

BPIN Y9ZL52001

1шт.

35

84162575

FLOOR

Center, Welded

1шт.

PIN Y9ZL52001 and after

1шт.
