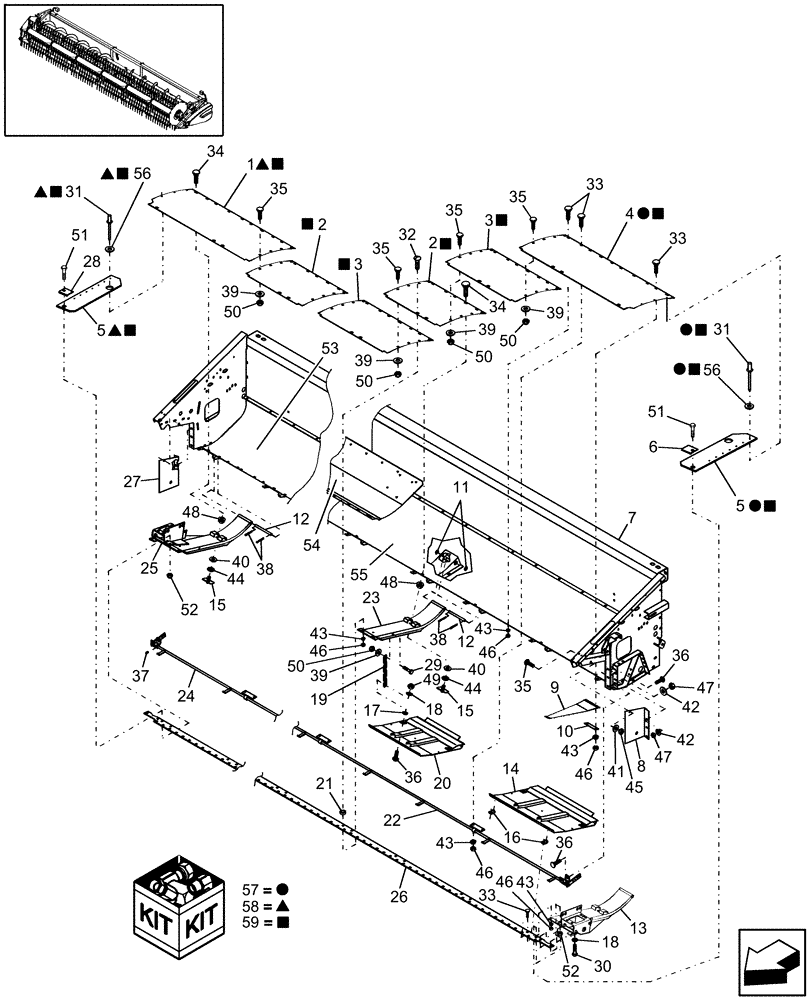

Запчасти Case IH 2020 (20.12.02[1]) - MAIN FRAME & FLOORS, 2020, 30 FT, BPIN CBJ020701 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

87041145

FLOOR

RH, 1187.4mm [46.8"] Wide, Bent Offset Rear Edge, See Figure Note

1шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

1

87055869

FLOOR

RH, 1187.4mm [46.8"] Wide, Flat Rear Edge, See Figure Note

1шт.

PIN CBJ020287 and After

1шт.

2

87041147

FLOOR

Mid, LH, 647.7mm [25.52"] Wide, Bent Offset Rear Edge, See Figure Note

2шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

2

87055872

FLOOR

Mid, LH, 647.7mm [25.52"] Wide, Flat Rear Edge, See Figure Note

2шт.

PIN CBJ020287 and After

1шт.

3

87041149

FLOOR

Mid, 800.1mm [31.52"] Wide, Bent Offset Rear Edge, See Figure Note

7шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

3

87055871

FLOOR

Mid, 800.1mm [31.52"] Wide, Flat Rear Edge, See Figure Note

7шт.

PIN CBJ020287 and After

1шт.

4

87041143

FLOOR

LH, 1263.6mm [49.8"] Wide, Bent Offset Rear Edge, See Figure Note

1шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

4

87055870

FLOOR

LH, 1263.6mm [49.8"] Wide, Flat Rear Edge, See Figure Note

1шт.

PIN CBJ020287 and After

1шт.

5

86979436

RUBBER PAD

2шт.

6

86979434

ANGLE

LH

1шт.

7

87041275

FRAME ASSY

[Also requires Ref 10 Fig 20.12.06]

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

7

87041275

FRAME ASSY

New Rear Floor

1шт.

PIN CBJ020001 to CBJ020204

1шт.

7

87047067

FRAME ASSY

New Reel

1шт.

PIN CBJ020205 and later

1шт.

8

87020190

PLATE

LH

1шт.

9

606896

SPRING

25шт.

10

145176

REINFORCEMENT

14шт.

11

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

5/8", 1/16" Thick

26шт.

12

518771

CLEVIS PIN,15.88mm OD x 184.15mm L

1/16" x 7-1/4"

13шт.

13

850555

SUPPORT

1шт.

14

86552871

PROTECTION PLATE

Protective, See Fig 20.13.03[1] for plastic covers

10шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

14

87040525

SUPPORT

Protective, See Fig 20.13.03[1] for plastic covers

10шт.

PIN CBJ020001 and later

1шт.

15

767186

NUT

13шт.

16

605838

CLAMP,15.88mm ID, 11.91mm Bolt Hole, J Type

24шт.

17

29711

SPACER

24шт.

18

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

28шт.

19

66272

CHAIN

24шт.

20

86552870

PROTECTION PLATE

Protective, See Fig 20.13.03[1] for plastic covers

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

20

87040632

PLATE

Protective, See Fig 20.13.03[1] for plastic covers

2шт.

PIN CBJ020001 and later

1шт.

21

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

24шт.

22

87015647

ROD

SENSOR LH

1шт.

23

766675

SUPPORT

11шт.

24

87015649

ROD

SENSOR RH

1шт.

25

850556

SUPPORT

RH

1шт.

26

87015615

CUTTERBAR

1шт.

27

87020192

PLATE

RH

1шт.

28

86979433

ANGLE

RH

1шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

24шт.

30

280655

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

4шт.

31

445394

RIVET,Pop, 3/16" x 1/2" OAL

3/16" x 1/2"

14шт.

32

87260

SCREW,Truss HD, 3/8 x 1-1/4"

24шт.

33

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

94шт.

34

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

13шт.

35

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

32шт.

36

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

37

80975

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

4шт.

38

80755

COTTER PIN,1/8" OD x 1" L

26шт.

39

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

24шт.

40

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

13шт.

41

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

42

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

43

80680

LOCK WASHER,3/8 0.381 CST ZND

94шт.

44

87010

LOCK WASHER,Int Tooth, 7/8"

13шт.

45

9635082

NUT,5/16" - 18, Gr 5

2шт.

46

9628503

NUT,3/8"-16, G5

94шт.

47

100016

NUT,M10 x 1.5, Cl 8

6шт.

48

86512371

SERRATED NUT,Flg, USR, 1/2"-13

13шт.

49

280129

NUT,1/4"-20

6шт.

50

231-4145

NUT,5/16"-18, GB

54шт.

51

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

52

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

53

Floor, Rear, RH

1шт.

See Figure 20.12.05

1шт.

54

Floor, Rear, Center

1шт.

See Figure 20.12.05

1шт.

55

Floor, Rear, LH

1шт.

See Figure 20.12.05

1шт.

56

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

1шт.

57

87518256

FLOOR

Kit, 30 Ft, LH, Flat Rear Edge

1шт.

58

87518257

FLOOR

Kit, 30 Ft, RH, Flat Rear Edge

1шт.

59

87518596

FLOOR

Kit, 30 Ft, Flat Rear Edge, See Figure Note

1шт.
