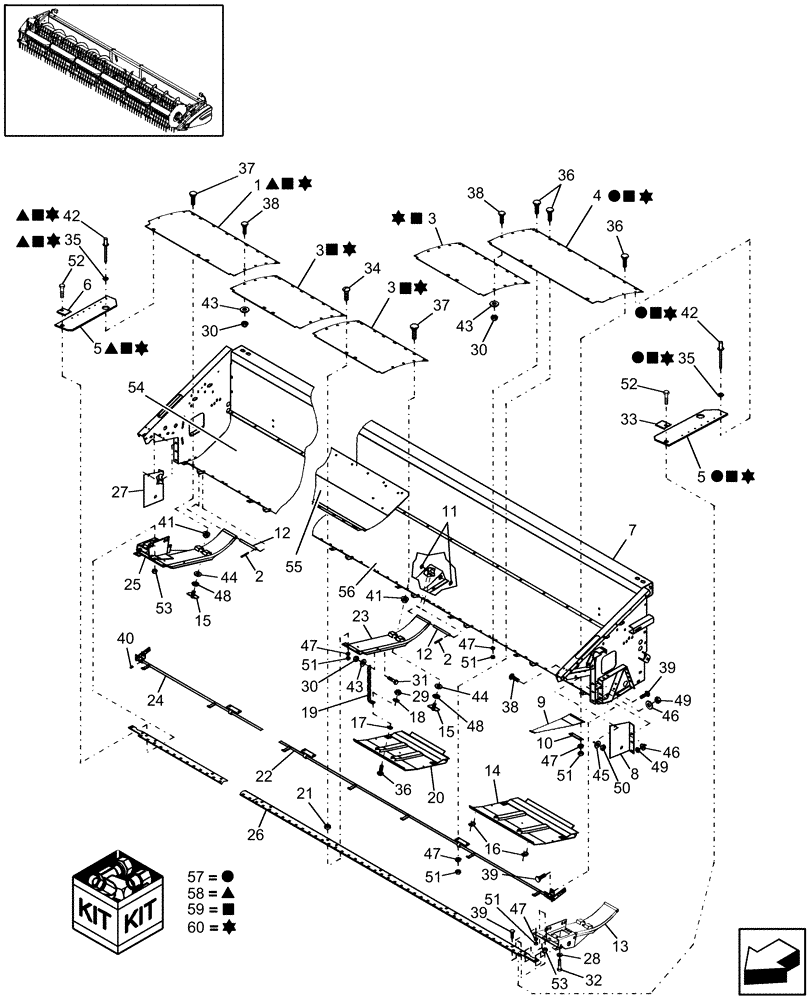

Запчасти Case IH 2020 (20.12.01[1]) - MAIN FRAME & FLOORS, 2020, 20 FT& 25 FT, BPIN CBJ020701 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

87041151

FLOOR

RH, 1035.1mm [40.8"] Wide, Bent Offset Rear Edge, See Figure Note

1шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

1

87055873

FLOOR

RH, 1035.1mm [40.8"] Wide, Flat Rear Edge, See Figure Note

1шт.

PIN CBJ020287 and After

1шт.

2

80755

COTTER PIN,1/8" OD x 1" L

1шт.

3

87041149

FLOOR

Mid, 20 Ft, 800.1mm [31.5"] Wide, Bent Offset Rear Edge, See Figure Note

5шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

3

87055871

FLOOR

Mid, 20 Ft, 800.1mm [31.5"] Wide, Flat Rear Edge, See Figure Note

5шт.

PIN CBJ020287 and After

1шт.

3

87041149

FLOOR

Mid, 25 Ft, 800.1mm [31.5"] Wide, Bent Offset Rear Edge, See Figure Note

7шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

3

87055871

FLOOR

Mid, 25 Ft, 800.1mm [31.5"] Wide, Flat Rear Edge, See Figure Note

7шт.

PIN CBJ020287 and After

1шт.

4

87041153

FLOOR

LH, 1111.2mm [43.8"] Wide, Bent Offset Rear Edge, See Figure Note

1шт.

BPIN CBJ020287 [Includes all HAJ PIN's]

1шт.

4

87055874

FLOOR

LH, 1111.2mm [43.8"] Wide, Flat Rear Edge, See Figure Note

1шт.

PIN CBJ020287 and After

1шт.

5

86979436

RUBBER PAD

2шт.

6

86979433

ANGLE

RH

1шт.

7

87041269

FRAME ASSY

20 Ft, [Also requires Ref 2 & 5 channel shape Fig 20.12.06]

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

7

87041269

FRAME ASSY

20 Ft, New Rear Floor

1шт.

PIN CBJ020001 to CBJ020204

1шт.

7

87047073

FRAME ASSY

20 Ft, New Reel

1шт.

PIN CBJ020205 and later

1шт.

7

87041272

FRAME ASSY

25 Ft, [Also requires Ref 10 Fig 20.12 .06]

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

7

87041272

FRAME ASSY

25 Ft, New Rear Floor

1шт.

PIN CBJ020001 to CBJ020204

1шт.

7

87047070

FRAME ASSY

25 Ft, New Reel

1шт.

PIN CBJ020205 and later

1шт.

8

87020190

PLATE

LH

1шт.

9

606896

SPRING

12шт.

10

145176

REINFORCEMENT

8шт.

11

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

5/8", 1/16" Thick

18шт.

12

518771

CLEVIS PIN,15.88mm OD x 184.15mm L

1/16" x 7-1/4"

9шт.

13

850555

SUPPORT

LH

1шт.

14

86552871

PROTECTION PLATE

Center, Steel, 20 Ft, [Qty 8, 25 Ft], See Fig 20.13.03 For Poly Liner

6шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

14

87040525

SUPPORT

Center, Steel, 20 Ft, [Qty 8, 25 Ft], See Fig 20.13.03 For Poly Liner

6шт.

PIN CBJ020001 and later

1шт.

15

767186

NUT

Rib

9шт.

16

605838

CLAMP,15.88mm ID, 11.91mm Bolt Hole, J Type

16шт.

17

29711

SPACER

16шт.

18

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

16шт.

19

66272

CHAIN

16шт.

20

86552870

PROTECTION PLATE

End, Steel, See Fig 20.13.03 For Poly Liner

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

20

87040632

PLATE

End, Steel, See Fig 20.13.03 For Poly Liner

2шт.

PIN CBJ020001 and later

1шт.

21

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

16шт.

22

87015642

ROD

SENSOR LH, 20 Ft

1шт.

22

87015638

ROD

SENSOR LH, 25 Ft

1шт.

23

766675

SUPPORT

7шт.

24

87015645

ROD

SENSOR RH, 20 Ft

1шт.

24

87015640

ROD

SENSOR RH, 25 Ft

1шт.

25

850556

SUPPORT

RH

1шт.

26

87015613

CUTTERBAR

20 Ft

1шт.

26

87015611

CUTTERBAR

25 Ft

1шт.

27

87020192

PLATE

RH

1шт.

28

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

4шт.

29

88902

NUT,3/8"-16

16шт.

30

231-4145

NUT,5/16"-18, GB

34шт.

31

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

16шт.

32

280655

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

4шт.

33

86979434

ANGLE

LH

1шт.

34

87260

SCREW,Truss HD, 3/8 x 1-1/4"

16шт.

35

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

14шт.

36

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

58шт.

37

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

9шт.

38

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

20шт.

39

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

40

80975

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

4шт.

41

86512371

SERRATED NUT,Flg, USR, 1/2"-13

9шт.

42

445394

RIVET,Pop, 3/16" x 1/2" OAL

3/16" x 1/2"

14шт.

43

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

34шт.

44

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

9шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

46

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

58шт.

48

87010

LOCK WASHER,Int Tooth, 7/8"

9шт.

49

100016

NUT,M10 x 1.5, Cl 8

6шт.

50

9635082

NUT,5/16" - 18, Gr 5

2шт.

51

9628503

NUT,3/8"-16, G5

58шт.

52

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

53

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

54

Floor, Rear, RH

1шт.

See Figure 20.12.05

1шт.

55

Floor, Rear, Center

1шт.

See Figure 20.12.05

1шт.

56

Floor, Rear, LH

1шт.

See Figure 20.12.05

1шт.

57

87518258

FLOOR

Kit, 20/25 Ft, LH, Flat Rear Edge

1шт.

58

87518259

FLOOR

Kit, 20/25 Ft, RH, Flat Rear Edge

1шт.

59

87518598

FLOOR

Kit, 20 Ft, Flat Rear Edge, See Figure Note

1шт.

60

87518597

FLOOR

Kit, 25 Ft, Flat Rear Edge, See Figure Note

1шт.
