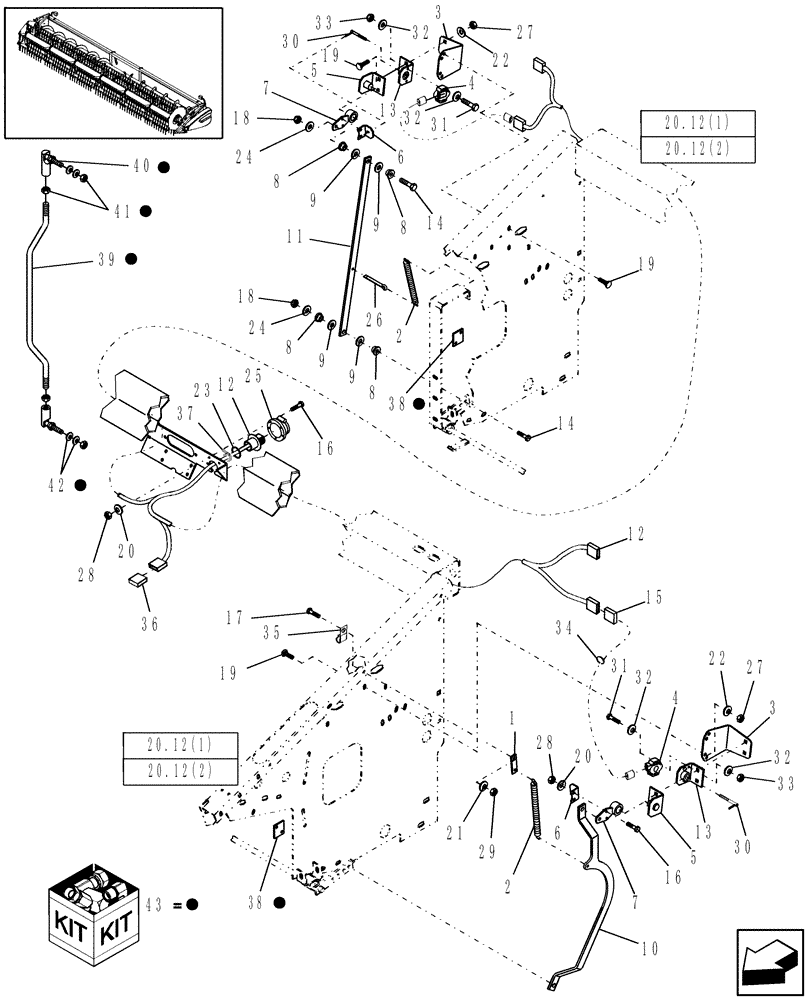

Запчасти Case IH 2020 (20.06.01[1]) - HEIGHT CONTROL, 2020, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

86603439

BAR

Flat, Control Assembly

1шт.

2

87047744

SPRING

2шт.

3

86607216

ANGLE

2шт.

4

86616339

SENSOR,CCW

Rotary position

2шт.

5

86642491

ANGLE

2шт.

6

86607215

ANGLE

2шт.

7

86607195

LEVER

2шт.

8

133246

BUSHING,8mm ID x 17.53mm OD x 7.26mm L

8шт.

9

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1/2"ID x 7/8"OD x 0.049"

8шт.

10

86621869

ARM

LH, See Ref, Serial Range: 38-43

1шт.

11

86618736

ARM

RH, See Ref, Serial Range: 38-43

1шт.

12

Header Harness, See Fig 20.06.05

1шт.

13

86642490

ANGLE

2шт.

14

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

15

87010600

WIRE HARNESS

2шт.

16

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

12шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

18

86629544

NUT,5/16” – 18, GR B

4шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

20

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

12шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

23

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

(40mm OD)

1шт.

24

87362

WASHER,5/16" SAE

4шт.

25

86606228

COVER

Dust Cap

1шт.

26

87019

COTTER PIN,3/16" x 3/4"

1шт.

27

9706690

NUT,M8 x 1.25, Cl 8

8шт.

28

86508813

NUT,M5, Cl 8

12шт.

29

9706755

NUT,M6, Cl 8

1шт.

30

86642493

SHAFT

W/Pin

2шт.

31

86025725

BOLT,Hex, M5 x 40mm, Cl 8.8

4шт.

32

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

33

86508813

NUT,M5, Cl 8

4шт.

34

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP

2шт.

35

134579

WIRE CLAMP,J

0.218 Wire

2шт.

36

86837775

RESISTOR

Module

1шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

38

87043316

SPACER

Spring, Ref 2, Attachment Point

2шт.

39

87043318

THREADED ROD

Replacement For Ref 10 & 11

2шт.

40

86548493

BALL,5/16" -24 x 1-2/5"

Joint

4шт.

41

87307

JAM NUT,Jam, 5/16"-24, G2

8шт.

42

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

43

87522065

SERVICE KIT

Sensor Linkage Replacement, Ref 38 To 42

1шт.
