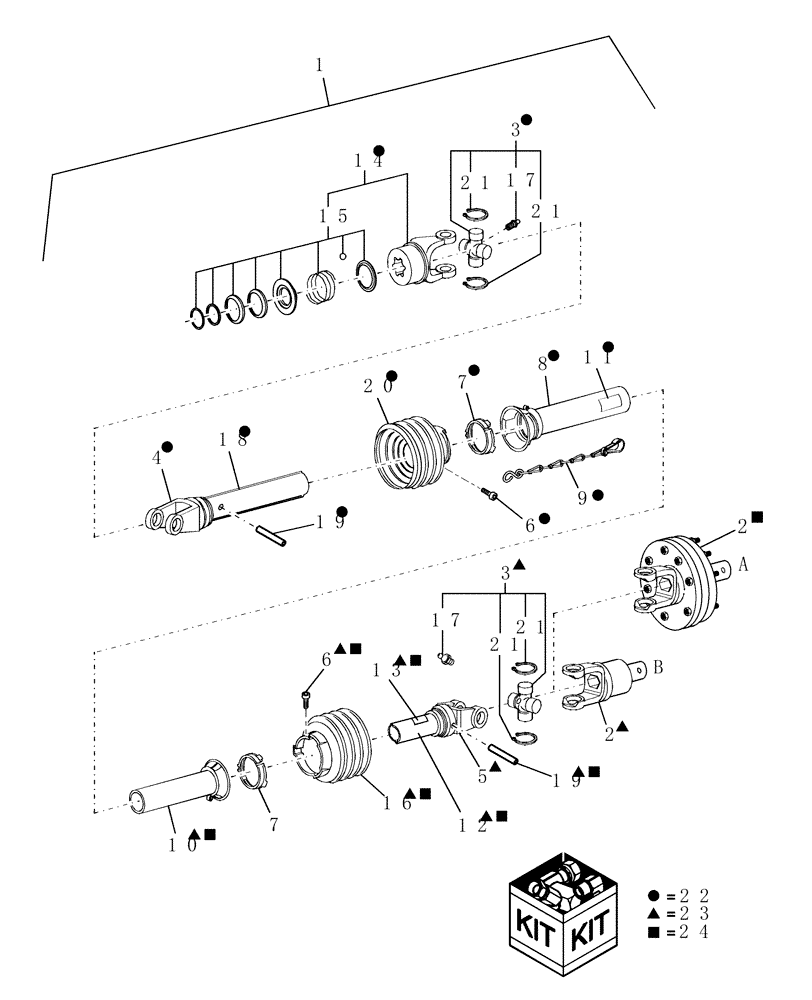

Запчасти Case IH 2020 (20.03A) - DRIVE SHAFT [PTO] SUBASSEMBLY (58) - ATTACHMENTS/HEADERS

1

86978544

DRIVE SHAFT

Friction Yoke, View A

1шт.

1

86978545

PTO

Free Motion Yoke, View B

1шт.

2

Friction, View A, See Fig 20.03C

1шт.

2

Free Motion, View B, See Fig 20.03B

1шт.

3

86900575

UNIVERSAL JOINT

2шт.

4

PA556924

YOKE

1шт.

5

1326493C1

YOKE

1шт.

6

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

2шт.

7

728164

RING

Sleeve Bearing

2шт.

8

86900580

OUTER SHIELD

1шт.

9

379650

CHAIN

Anchor

1шт.

10

86900581

INNER SHIELD

1шт.

11

849471

DANGER DECAL

Rotating Driveline

1шт.

12

86900577

PTO SHAFT

Outer

1шт.

13

849472

DANGER DECAL

Shield Missing

1шт.

14

86533997

YOKE

1шт.

15

86525265

KIT

Slide Collar

1шт.

16

86900579

SHIELD

1шт.

17

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

18

86900576

PTO SHAFT

Inner

1шт.

19

412690

PIN,10mm OD x 65mm L, Slotted

2шт.

20

87024157

OUTER SHIELD

1шт.

21

456770

CIRCLIP

Snap Ring

2шт.

22

86900583

FRONT PTO ASSY

Feeder

1шт.

23

86900584

REAR PTO ASSY

Header, View B

1шт.

24

86900585

REAR PTO ASSY

Header, View A

1шт.
