Запчасти Case IH 2020 (20.03.13) - DRIVE, BELT, 2020, SINGLE DRIVE, 20 & 25 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

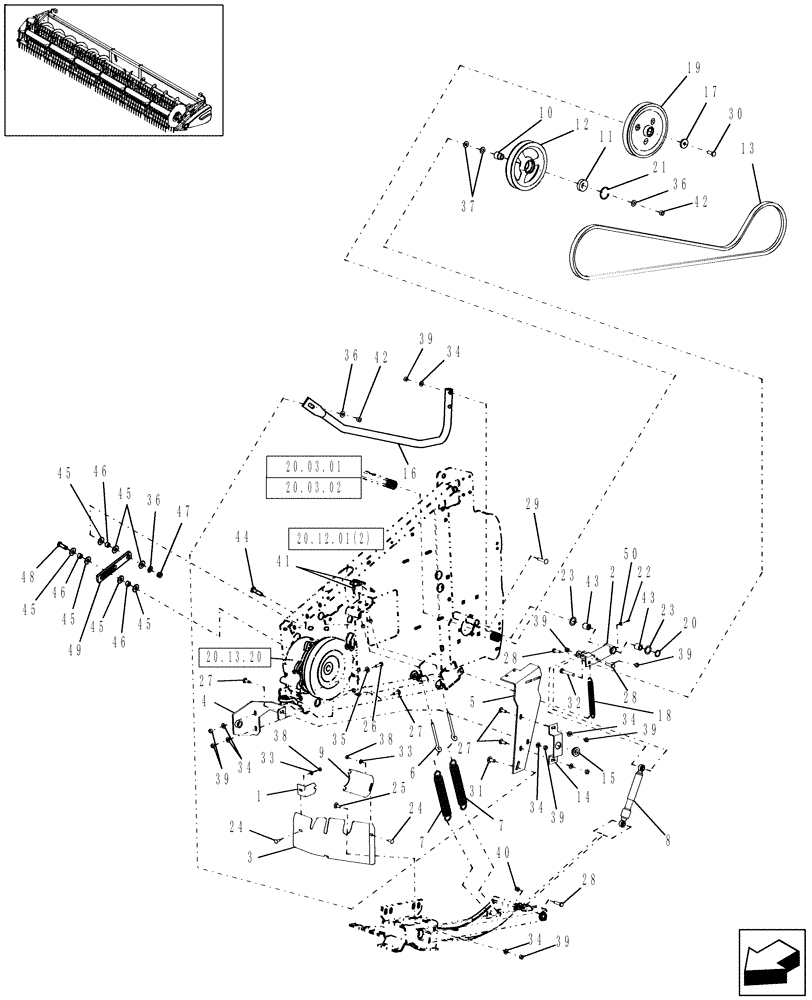

Схема запчастей Case IH 2020 - (20.03.13) - DRIVE, BELT, 2020, SINGLE DRIVE, 20 & 25 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS
29
20.13.20
15
27
33
39
39
7
38
10
2
3
19
16
20.03.01
46
49
36
48
11
43
42
1
28
27
34
23
43
4
31
27
46
45
47
39
39
34
6
32
24
14
28
37
36
20.12.01(2)
36
42
34
38
39
20
24
40
35
33
26
23
44
25
9
18
45
12
5
41
45
8
39
30
22
7
50
39
34
45
45
21
17
46
45
13
28
20.03.02
34

Артикул

Название

Примечание

Количество

1

87380064

BRACKET

1шт.

2

87026615

LIFT LINK

1шт.

3

87380055

SHIELD

LH

1шт.

4

87387737

BRACKET

LH

1шт.

5

87059926

BRACKET

LH

1шт.

6

631201

EYEBOLT

2шт.

7

56686

SPRING

2шт.

8

755834

SHOCK ABSORBER

1шт.

9

86604958

BRACKET

1шт.

10

465213

SPACER,13mm ID x 30mm OD x 37mm L

1шт.

11

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

12

84980958

PULLEY,222mm OD

1шт.

13

87041732

V-BELT,22.33 mm W x 2981.96 mm L

1шт.

14

87519386

BRACKET

1шт.

15

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

1шт.

16

87058870

TUBE,31.75 mm DIA

LH

1шт.

17

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

1шт.

18

12

SPRING

1шт.

19

86979102

PULLEY

1шт.

20

370002

CIRCLIP,M25, External

1шт.

21

370011

CIRCLIP,M52 x 2mm Thk, Internal

1шт.

22

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

23

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

3шт.

24

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

27

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

28

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

3шт.

29

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

2шт.

30

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

31

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

32

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

35

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

36

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

37

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

38

9706690

NUT,M8 x 1.25, Cl 8

2шт.

39

100016

NUT,M10 x 1.5, Cl 8

10шт.

40

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

41

9628503

NUT,3/8"-16, G5

4шт.

42

9706685

NUT,M12 x 1.75, Cl 8

2шт.

43

382975

BUSHING,25mm ID x 28mm OD x 15mm L

2шт.

44

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

45

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

5шт.

46

86622618

SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk

3шт.

47

100038

NUT,M12 x 1.75, Cl 8

1шт.

48

850124

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

1шт.

49

783570

CONNECTING LINK

1шт.

50

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

Выбрано товаров: 50
