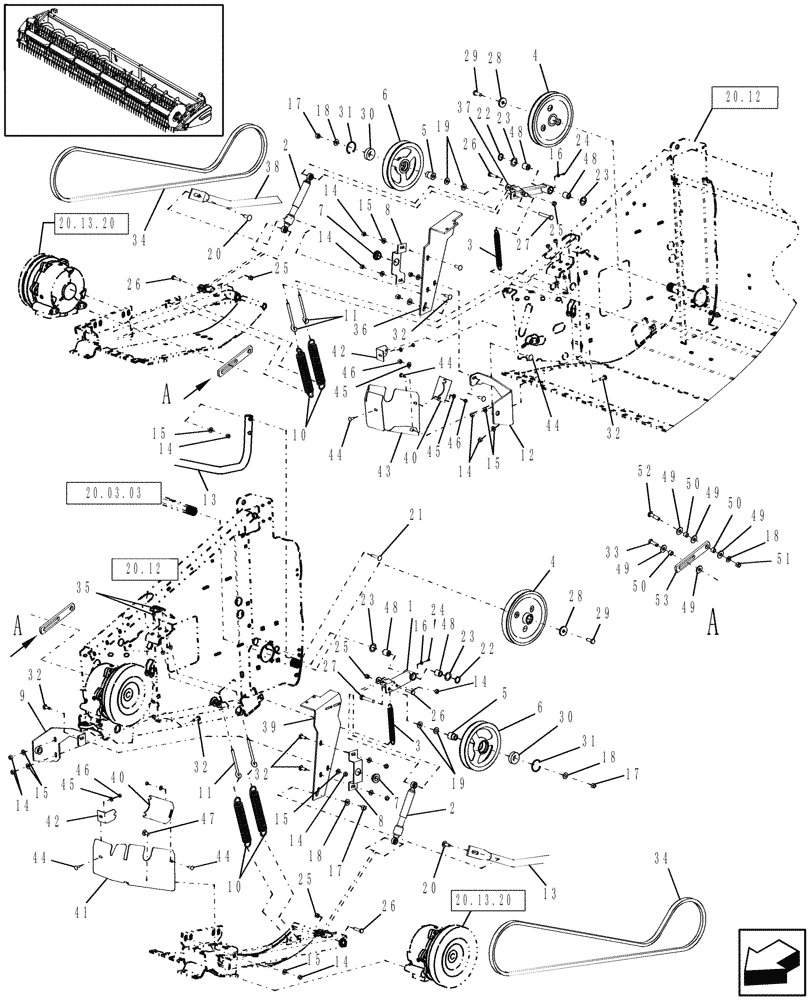

Запчасти Case IH 2020 (20.03.12[2]) - DRIVE, BELT, 2020, DOUBLE DRIVE, 35 FT & [30 FT PIN CBJ021301 AND AFTER] (58) - ATTACHMENTS/HEADERS

1

87026615

LIFT LINK

ARM, LH

1шт.

2

755834

SHOCK ABSORBER

SHOCK ABSORBER

2шт.

3

12

SPRING

2шт.

4

86979102

PULLEY

2шт.

5

465213

SPACER,13mm ID x 30mm OD x 37mm L

BUSHING

2шт.

6

84980958

PULLEY,222mm OD

PULLEY NS

2шт.

7

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

2шт.

8

87519386

BRACKET

2шт.

9

87387737

BRACKET

LH, 30 & 35 Ft

1шт.

10

56686

SPRING

4шт.

11

631201

EYEBOLT

4шт.

12

87387476

BRACKET

RH

1шт.

13

87058870

TUBE,31.75 mm DIA

TUBE LH

1шт.

14

100016

NUT,M10 x 1.5, Cl 8

20шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

17

9706685

NUT,M12 x 1.75, Cl 8

4шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

19

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

4шт.

20

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

21

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

4шт.

22

370002

CIRCLIP,M25, External

2шт.

23

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

4шт.

24

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

26

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

6шт.

27

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

28

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

2шт.

29

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

30

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

31

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

32

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

8шт.

33

850124

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

2шт.

34

87041732

V-BELT,22.33 mm W x 2981.96 mm L

2шт.

35

9628503

NUT,3/8"-16, G5

8шт.

36

87040918

BRACKET

RH

1шт.

37

87036519

ARM ASSY.

TENSION IDLER RH

1шт.

38

87058872

TUBE,31.75 mm OD

RH

1шт.

39

87059926

BRACKET

LH

1шт.

40

87519384

BRACKET

2шт.

41

87380055

SHIELD

LH

1шт.

42

87380064

BRACKET

2шт.

43

87380056

SHIELD

RH

1шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

46

9706690

NUT,M8 x 1.25, Cl 8

4шт.

47

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

48

382975

BUSHING,25mm ID x 28mm OD x 15mm L

4шт.

49

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

10шт.

50

86622618

SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk

4шт.

51

100038

NUT,M12 x 1.75, Cl 8

2шт.

52

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

2шт.

53

783570

CONNECTING LINK

2шт.
