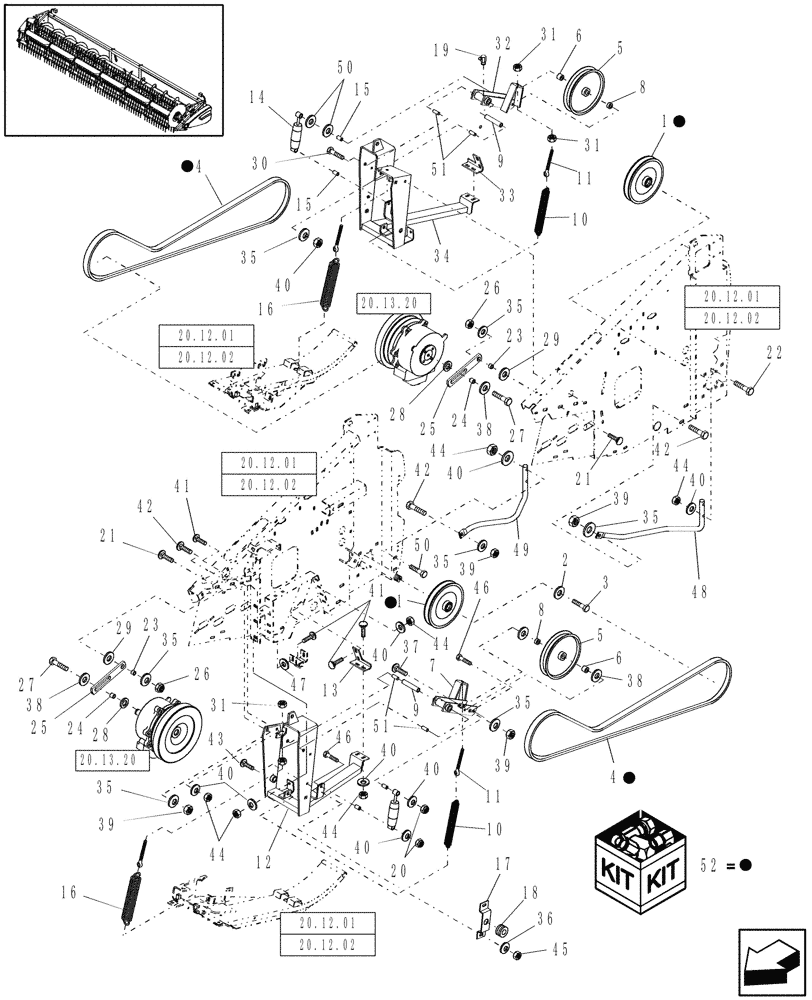

Запчасти Case IH 2020 (20.03.12[1]) - DRIVE, BELT, 2020, DOUBLE DRIVE, 20 FT, [25 FT & 30 FT, BPIN CBJ021301] [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

616383

PULLEY

8-11/16" OD

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

1

86979102

PULLEY

9-3/4" OD, Speed Increase

2шт.

PIN CBJ020001 and later

1шт.

1

87043245

SHEAVE

10-3/4" OD, Ref 52, Speed Up Kit

2шт.

2

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

1/2" ID x 1-5/8" OD x 1/4" Hardened

2шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

4

87020184

V-BELT,22.33 mm W x 2951.48 mm L

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

4

87041732

V-BELT,22.33 mm W x 2981.96 mm L

Speed Increase

2шт.

PIN CBJ020001 and later

1шт.

4

87381877

BELT,22.33 mm W x 3043 mm L

V-Type, Ref 52, Speed Up Kit

2шт.

5

605451

IDLER

2шт.

6

168368

SPACER,13.4mm ID x 25.4mm OD x 11.1mm OAL

2шт.

7

856739

ARM

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

7

87363422

ARM

Speed Increase

1шт.

PIN CBJ020001 and later

1шт.

8

86622574

SPACER

2шт.

9

695916

SPACER

2шт.

10

605846

SPRING,Extension, 25.4mm OD x 243.8mm L

Extension

2шт.

11

631201

EYEBOLT

3/8"-16 x 5-1/2"

4шт.

12

856794

SUPPORT

LH

1шт.

13

695333

BRACKET

LH

1шт.

14

276486

SHOCK ABSORBER

2шт.

15

9616869

SPACER,0.41" ID x 0.60" OD x 0.960" L

4шт.

16

67629

SPRING

2шт.

17

86609450

BRACKET

2шт.

18

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

2шт.

19

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

21

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

22

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

4шт.

23

86622618

SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk

2шт.

24

86622563

SPACER

2шт.

25

783570

CONNECTING LINK

2шт.

26

100038

NUT,M12 x 1.75, Cl 8

2шт.

27

850124

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

Cap, HH, CL 8.8, M12 x 1.25 x 40, UNF

2шт.

28

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

29

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

2шт.

30

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

31

9628503

NUT,3/8"-16, G5

8шт.

32

857188

ARM

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

32

87363458

ARM

Speed Increase

1шт.

PIN CBJ020001 and later

1шт.

33

695334

BRACKET

RH

1шт.

34

857177

SUPPORT

RH

1шт.

35

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

37

84818450

CARRIAGE BOLT,M12 x 85mm, Cl 8.8

2шт.

38

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

39

9706685

NUT,M12 x 1.75, Cl 8

8шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

41

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

12шт.

42

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

43

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

44

100016

NUT,M10 x 1.5, Cl 8

16шт.

45

9706690

NUT,M8 x 1.25, Cl 8

4шт.

46

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

47

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

48

86633064

TUBE,31.75 mm OD

LH

1шт.

49

86633066

TUBE,31.75 mm OD

RH

1шт.

50

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4ARшт.

51

47584

BUSHING,19.08mm ID x 22.26mm OD x 25mm L

4шт.

52

87381879

SERVICE KIT

Knife Drive Speed Up, See Figure Note

1шт.
