(20.03.11[2]) - DRIVE, BELT, 2010, 30 FT, PIN CBJ021301 AND AFTER

Запчасти Case IH 2020 (20.03.11[2]) - DRIVE, BELT, 2010, 30 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

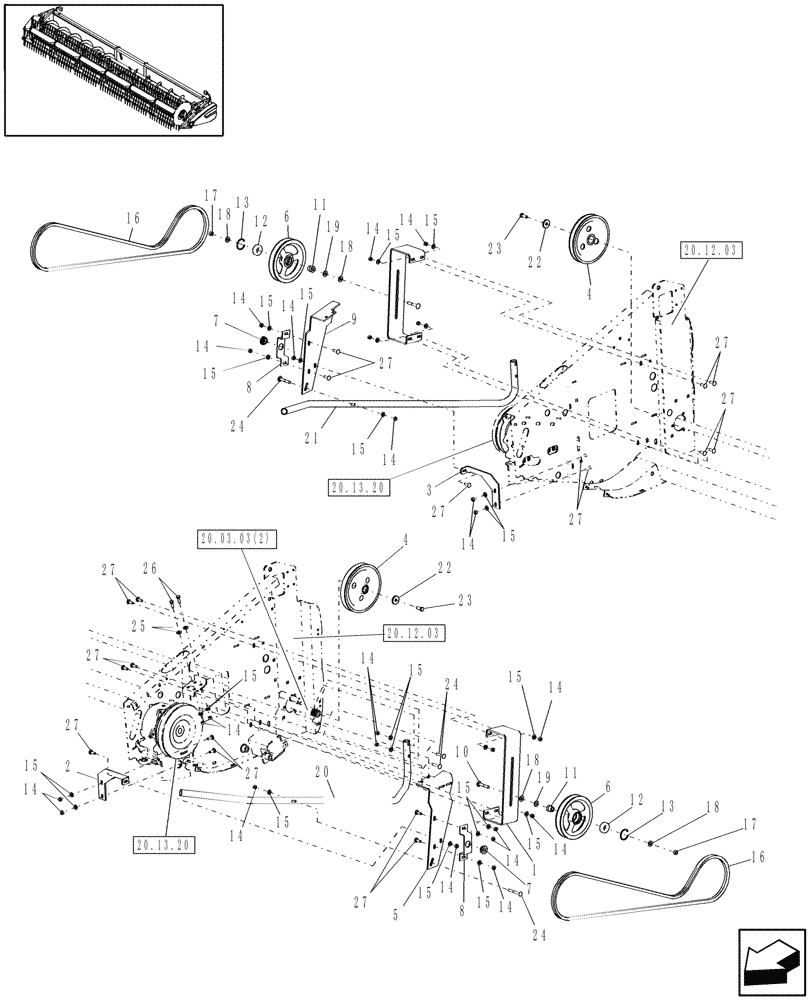

Схема запчастей Case IH 2020 - (20.03.11[2]) - DRIVE, BELT, 2010, 30 FT, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS
20.12.03
15
19
24
17
13
14
18
22
1
6
22
27
27
14
23
18
14
18
14
15
14
15
27
13
18
16
15
23
15
14
10
27
15
6
20
14
27
14
14
24
9
4
15
12
15
3
19
8
12
15
2
14
11
7
16
17
15
14
27
14
15
11
15
27
14
14
15
24
7
27
14
5
26
15
27
8
14
25
15
15
21
27
4
20.03.03(2)
20.13.20
20.13.20
20.12.03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87548319

BRACKET

2шт.

2

87350643

BRACKET

LH

1шт.

3

87350645

BRACKET

RH

1шт.

4

86979102

PULLEY

2шт.

5

87059926

BRACKET

LH

1шт.

6

84980958

PULLEY,222mm OD

2шт.

7

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

2шт.

8

87519386

BRACKET

2шт.

9

87040918

BRACKET

RH

1шт.

10

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

11

87528509

BUSHING

2шт.

12

NLS

NO LONGER SERVICED

2шт.

13

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

14

100016

NUT,M10 x 1.5, Cl 8

28шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

16

87041779

V-BELT,22.33 mm W x 2771.14 mm L

2шт.

17

9706685

NUT,M12 x 1.75, Cl 8

2шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

19

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

4шт.

20

87355908

TUBE,25.65 mm ID x 31.80 mm OD

1шт.

21

87355911

TUBE,25.65 mm ID x 31.80 mm OD

1шт.

22

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

2шт.

23

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

24

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

6шт.

25

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

4шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

27

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

18шт.
