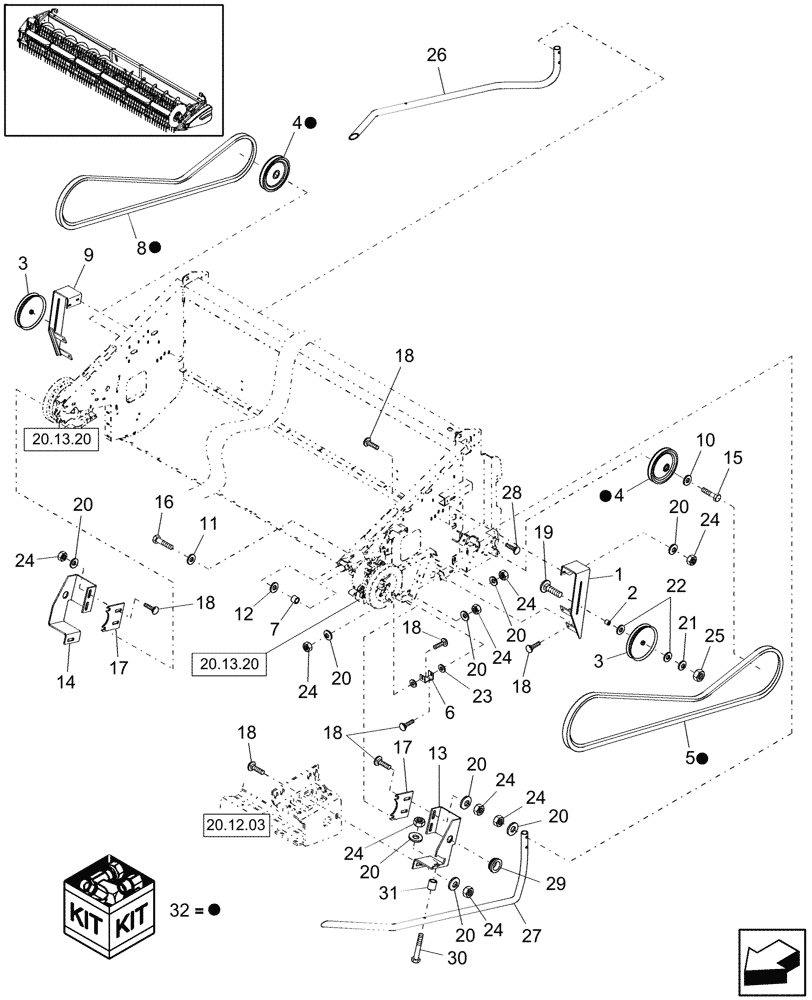

Запчасти Case IH 2020 (20.03.11[1]) - DRIVE, BELT, 2010, 25 FT & 30 FT, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

1

782079

BRACKET

1шт.

2

86622664

SPACER

2шт.

3

605451

IDLER

2шт.

4

616383

PULLEY

8-11/16" OD

2шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

4

86979102

PULLEY

9-3/4" OD, Speed Increase

2шт.

PIN CBJ020001 and later

1шт.

4

87043245

SHEAVE

10-3/4" OD, Ref 32, Speed Up Kit

2шт.

5

87020286

V-BELT,22.33 mm W x 2748.88 mm L

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

5

87041778

V-BELT,22.33 mm W x 2796.54 mm L

Speed Increase

1шт.

PIN CBJ020001 and later

1шт.

5

87381877

BELT,22.33 mm W x 3043 mm L

V-Type, Ref 32, Speed Up Kit, LH & RH

2шт.

6

767655

BRACKET

2шт.

7

86622665

SPACER

Split

2шт.

8

87020285

V-BELT,22.33 mm W x 2722.88 mm L

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

8

87041779

V-BELT,22.33 mm W x 2771.14 mm L

Speed Increase

1шт.

PIN CBJ020001 and later

1шт.

9

9603557

BRACKET

RH

1шт.

10

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

1/2" ID x 1-5/8" OD x 1/4" Hardened

2шт.

11

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

17/32" x 1-1/4" x 1/16"

2шт.

12

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

2шт.

13

86613469

BRACKET

LH

1шт.

13

86613475

BRACKET

LH, Rice

1шт.

14

86613467

BRACKET

RH

1шт.

14

86613473

BRACKET

RH, Rice

1шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

16

850124

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

Cap, HH, CL 8.8, M12 x 1.25 x 40

2шт.

17

86614971

BRACKET

2шт.

18

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

18шт.

19

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

22

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

24

100016

NUT,M10 x 1.5, Cl 8

24шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

86613465

TUBE,33.30 mm OD

RH

1шт.

27

86613470

TUBE,33.30 mm OD

LH

1шт.

28

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

4шт.

29

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

2шт.

30

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

31

37836

SPACER,1" - 8 x 8"

Split

2шт.

32

87381879

SERVICE KIT

Knife Drive Speed Up, See Figure Note

1шт.
