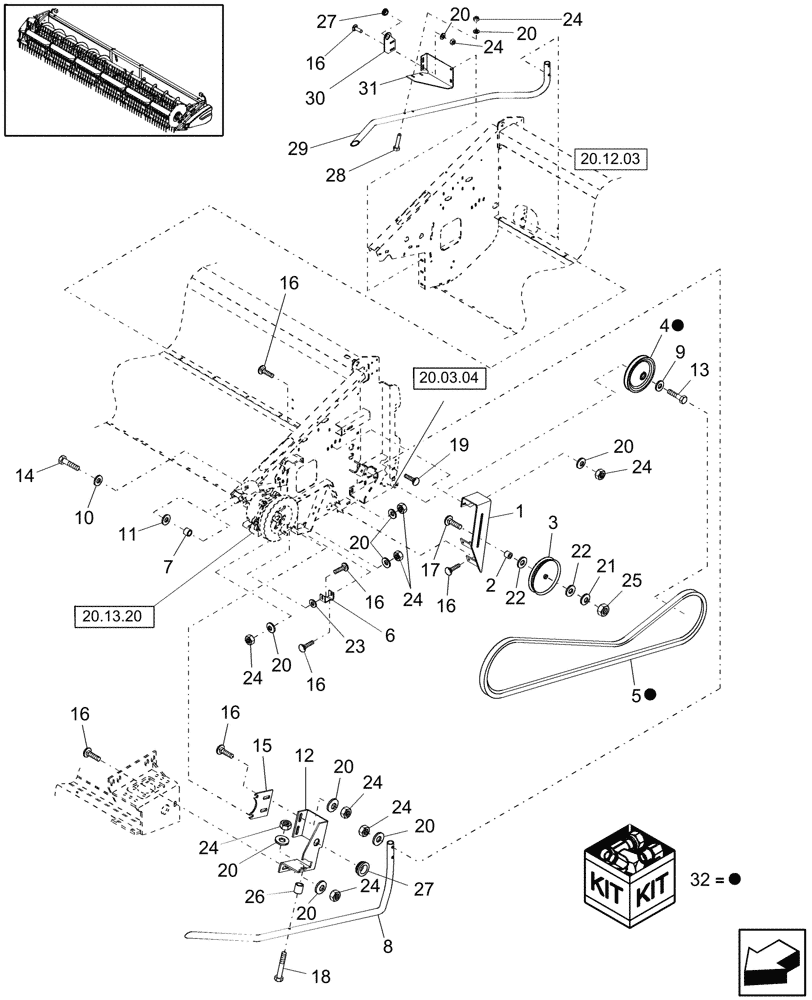

Запчасти Case IH 2020 (20.03.10[1]) - DRIVE, BELT, 2010, 20 FT, BPIN CBJ0201301 (58) - ATTACHMENTS/HEADERS

1

782079

BRACKET

1шт.

2

86622664

SPACER

1шт.

3

605451

IDLER

1шт.

4

616383

PULLEY

8-11/16" OD

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

4

86979102

PULLEY

9-3/4" OD, Speed Increase

1шт.

PIN CBJ020001 and later

1шт.

4

87043245

SHEAVE

10-3/4" OD, Ref 32, Speed Up Kit

1шт.

5

87020286

V-BELT,22.33 mm W x 2748.88 mm L

1шт.

BPIN CBJ020001[Includes all HAJ PIN's]

1шт.

5

87041778

V-BELT,22.33 mm W x 2796.54 mm L

Speed Increase

1шт.

PIN CBJ020001 and later

1шт.

5

87381877

BELT,22.33 mm W x 3043 mm L

V-Type, Ref 32, Speed Up Kit

1шт.

6

767655

BRACKET

2шт.

7

86622665

SPACER

Split

1шт.

8

86613470

TUBE,33.30 mm OD

LH

1шт.

9

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

1/2" ID x 1-5/8" OD x 1/4" Hardened

1шт.

10

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

1/2", 1/16" Thk

1шт.

11

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

1шт.

12

86613469

BRACKET

LH

1шт.

12

86613475

BRACKET

LH, Rice

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

14

850124

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8

Cap, HH, CL 8.8, M12 x 1.25 x 40

1шт.

15

86614971

BRACKET

1шт.

16

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

11шт.

17

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

18

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

19

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

4шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

22

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

24

100016

NUT,M10 x 1.5, Cl 8

18шт.

25

9706685

NUT,M12 x 1.75, Cl 8

1шт.

26

37836

SPACER,1" - 8 x 8"

Split Tube

1шт.

27

556719

BUSHING,21.9mm ID x 31.9mm OD x 15mm L

2шт.

28

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

29

86613465

TUBE,33.30 mm OD

RH

1шт.

30

86632722

BRACKET

1шт.

31

86632724

BRACKET

1шт.

32

87381879

SERVICE KIT

Knife Drive Speed Up, See Figure Note

1шт.
