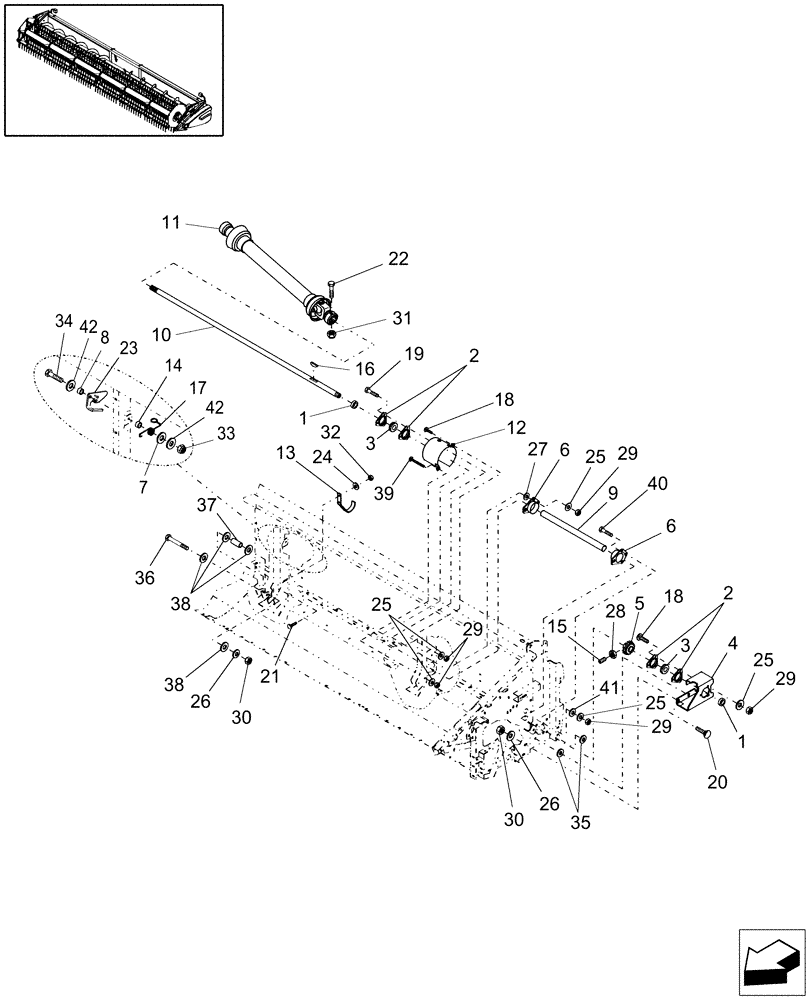

Запчасти Case IH 2020 (20.03.04) - MAIN SHAFT, 2010/2020, 20 FT, SINGLE DRIVE (58) - ATTACHMENTS/HEADERS

1

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

2

86620026

FLANGED BEARING

4шт.

BPIN CBJ021301

1шт.

2

36403

BEARING HOUSING

4шт.

PIN CBJ021301 and after

1шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

2шт.

4

86603129

BRACKET

1шт.

BPIN CBJ021301

1шт.

4

87374653

SUPPORT

1шт.

PIN CBJ021301 and after

1шт.

5

86604840

DRIVING SPROCKET

1шт.

6

86631151

CASTING

2шт.

7

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

17/32" ID x 7/8" OD x 0.049"

1шт.

8

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

9

86633026

SHIELD

1шт.

BPIN CBJ021301

1шт.

9

87567503

SUPPORT TUBE

1шт.

PIN CBJ021301 and after

1шт.

10

86604168

DRIVE SHAFT

1шт.

BPIN CBJ021301

1шт.

10

87546615

BAR

1шт.

PIN CBJ021301 and after

1шт.

11

86978544

DRIVE SHAFT

See Fig 20.03A

1шт.

12

86626014

SHIELD

1шт.

13

87026208

RETAINER COLLAR

1шт.

14

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split

1шт.

15

86542821

SET SCREW,Sq Hd, 5/16"-18 x 7/8"

Cup Pt

2шт.

16

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

17

87026147

SPRING

RH, PTO Shield

1шт.

18

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

19

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

3шт.

20

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

5шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

90шт.

22

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

23

87033816

CLIP

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

92шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

27

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

3шт.

28

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

29

100016

NUT,M10 x 1.5, Cl 8

12шт.

30

9706685

NUT,M12 x 1.75, Cl 8

7шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

32

9706690

NUT,M8 x 1.25, Cl 8

92шт.

33

100038

NUT,M12 x 1.75, Cl 8

1шт.

34

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

35

64264

WASHER

1/2"

2шт.

36

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

37

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

13.5 ID x 19 OD x 68.3

2шт.

38

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

39

811-10080

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

1шт.

40

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

41

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

13/32" ID x 1-7/8" OD x 3/16", Removed MY 2007 as not necessary

1шт.

42

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.
