Запчасти Case IH 2020 (20.03.03[2]) - MAIN SHAFT, 2010/2020, 35 FT & [30 FT, PIN CBJ020205 AND AFTER] (58) - ATTACHMENTS/HEADERS

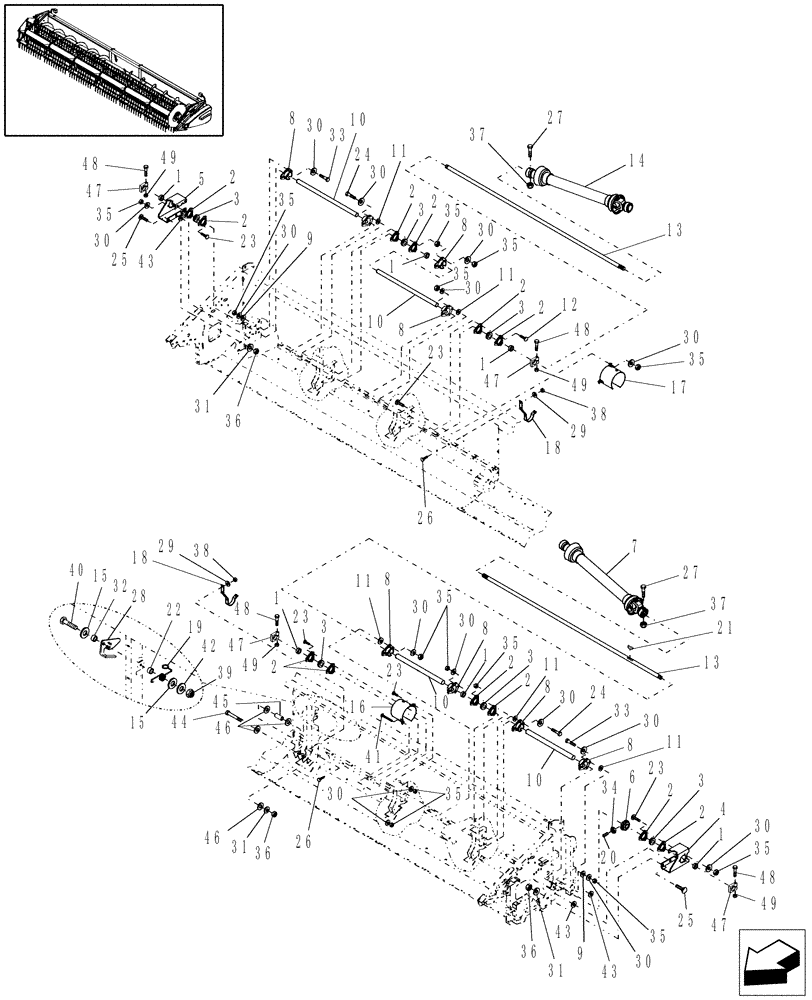

Схема запчастей Case IH 2020 - (20.03.03[2]) - MAIN SHAFT, 2010/2020, 35 FT & [30 FT, PIN CBJ020205 AND AFTER] (58) - ATTACHMENTS/HEADERS
29
3
3
11
30
30
35
13
10
47
8
30
30
20
16
48
33
43
9
28
31
12
11
1
2
30
15
30
8
3
19
40
2
24
35
42
35
35
46
31
2
11
17
1
13
36
47
22
3
36
48
36
38
1
7
8
35
49
30
30
24
3
2
2
27
5
33
30
30
32
41
31
48
23
39
10
6
8
3
35
29
46
30
25
2
23
4
25
18
27
49
30
2
15
21
23
48
8
10
11
37
43
23
2
14
1
35
10
8
18
37
35
11
35
23
30
30
2
2
49
35
1
45
44
47
8
26
9
49
47
2
26
43
34
1
35
38

Артикул

Название

Примечание

Количество

1

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

6шт.

2

36403

BEARING HOUSING

Bearing

12шт.

3

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

6шт.

4

87374653

SUPPORT

LH

1шт.

5

87374654

SUPPORT

RH

1шт.

6

86604840

DRIVING SPROCKET

16T & 14T

1шт.

7

86978544

DRIVE SHAFT

1шт.

8

86631151

CASTING

Shield Flange

8шт.

9

No Longer Required

2шт.

10

86633016

TUBE

30 Ft

4шт.

10

87052462

TUBE,63.50 mm DIA x 1465 mm L

35 Ft

4шт.

11

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

30шт.

12

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

6шт.

13

87546617

SHAFT ASSY.

30 Ft, Keyway moved 11mm[.043"] further from end

2шт.

13

87051859

SHAFT ASSY.

35 Ft

2шт.

14

86978545

PTO

1шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

16

86626014

SHIELD

1шт.

17

764809

SHIELD

1шт.

18

87026208

RETAINER COLLAR

2шт.

19

87026147

SPRING

1шт.

20

86542821

SET SCREW,Sq Hd, 5/16"-18 x 7/8"

Cup Pt

2шт.

21

84241

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

22

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split

1шт.

23

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

12шт.

24

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

6шт.

25

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

10шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

27

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

28

87033816

CLIP

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

42шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

32

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

33

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

34

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

35

100016

NUT,M10 x 1.5, Cl 8

36шт.

36

9706685

NUT,M12 x 1.75, Cl 8

12шт.

37

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

38

9706690

NUT,M8 x 1.25, Cl 8

4шт.

39

100038

NUT,M12 x 1.75, Cl 8

1шт.

40

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

41

No Longer Required

2шт.

42

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1/2" ID, 7/8" OD, 0.049"

1шт.

43

64264

WASHER

1/2" ID, 1-1/4" OD, 0.135"

4шт.

44

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

45

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

2шт.

46

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

47

87519382

CLAMP

4шт.

48

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

49

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

Выбрано товаров: 51
