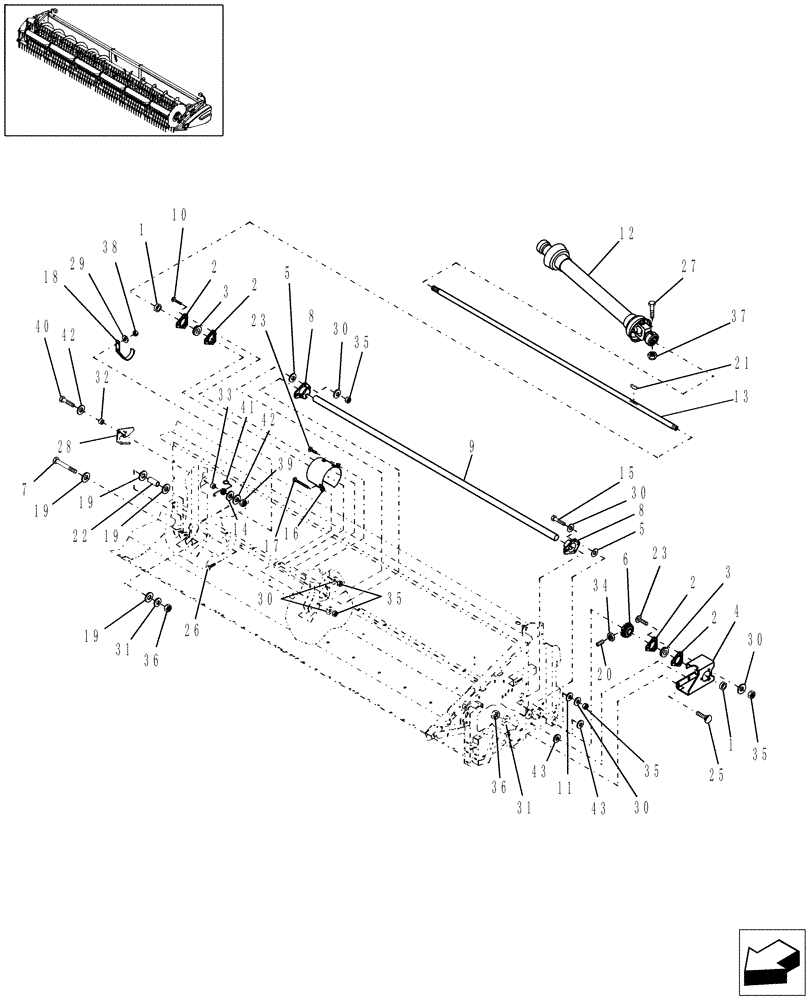

Запчасти Case IH 2020 (20.03.02[2]) - MAIN SHAFT, 2010/2020, 25 FT, SINGLE DRIVE, PIN CBJ021301 AND AFTER (58) - ATTACHMENTS/HEADERS

1

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

2

36403

BEARING HOUSING

4шт.

3

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

4

87374653

SUPPORT

LH

1шт.

5

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

9шт.

6

86604840

DRIVING SPROCKET

1шт.

7

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

8

86631151

CASTING

2шт.

9

87551383

SPLASH SHIELD

1шт.

10

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

3шт.

11

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

1шт.

12

86978544

DRIVE SHAFT

See Figure 20.03A

1шт.

13

87546616

DRIVE SHAFT

1шт.

14

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

CSHH M10 x 25

3шт.

16

86626014

SHIELD

1шт.

17

412189

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

2шт.

18

87026208

RETAINER COLLAR

1шт.

19

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

20

86542821

SET SCREW,Sq Hd, 5/16"-18 x 7/8"

2шт.

21

84241

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

22

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

2шт.

23

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

24

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

3шт.

25

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

5шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

22шт.

27

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

28

87033816

CLIP

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

32

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

33

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

SPLIT

1шт.

34

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

35

100016

NUT,M10 x 1.5, Cl 8

13шт.

36

9706685

NUT,M12 x 1.75, Cl 8

7шт.

37

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

38

9706690

NUT,M8 x 1.25, Cl 8

2шт.

39

100038

NUT,M12 x 1.75, Cl 8

1шт.

40

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

41

87026147

SPRING

1шт.

42

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

43

64264

WASHER

2шт.
