Запчасти Case IH 2020 (20.03.02[1]) - MAIN SHAFT, 2010/2020, 25 FT, DOUBLE DRIVE, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS

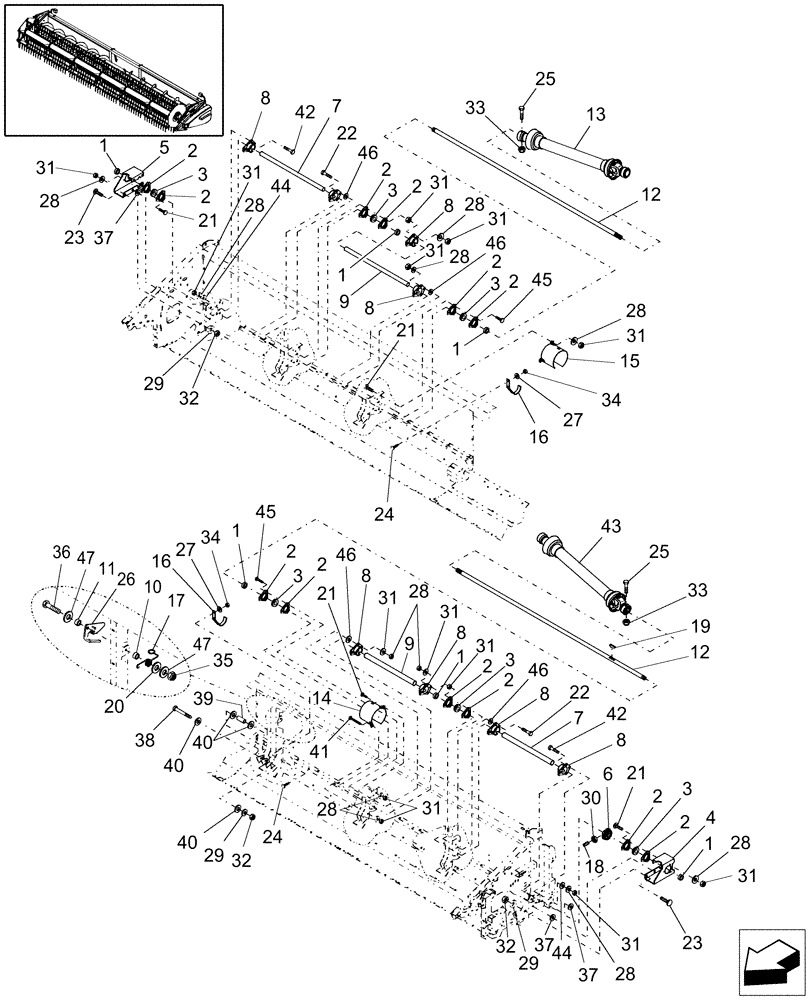

Схема запчастей Case IH 2020 - (20.03.02[1]) - MAIN SHAFT, 2010/2020, 25 FT, DOUBLE DRIVE, BPIN CBJ021301 [INCLUDES ALL HAJ PINS] (58) - ATTACHMENTS/HEADERS
34
28
12
20
44
9
28
1
47
4
19
18
28
25
39
43
3
37
2
28
29
21
2
28
8
42
2
31
3
1
2
42
33
46
21
23
2
23
37
31
6
27
7
8
40
2
1
32
31
31
38
14
3
8
44
37
1
31
29
46
29
28
45
2
16
31
2
10
41
40
15
3
21
31
17
35
9
32
2
2
3
28
16
2
13
1
30
1
8
24
5
25
31
31
46
33
28
26
45
11
36
2
22
8
34
7
8
40
3
31
47
27
32
31
24
22
46
12
31
28
8
21

Артикул

Название

Примечание

Количество

1

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

6шт.

2

86620026

FLANGED BEARING

12шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

6шт.

4

86603129

BRACKET

LH

1шт.

5

86603130

BRACKET

RH

1шт.

6

86604840

DRIVING SPROCKET

1шт.

7

86633023

SHIELD

2шт.

8

86631151

CASTING

8шт.

9

86633016

TUBE

2шт.

10

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split

1шт.

11

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

12

86590289

DRIVE SHAFT

2шт.

13

86978545

PTO

See Ref 20.03A

1шт.

14

86626014

SHIELD

1шт.

15

764809

SHIELD

1шт.

16

87026208

RETAINER COLLAR

2шт.

17

87026147

SPRING

RH, PTO Shield

1шт.

18

86542821

SET SCREW,Sq Hd, 5/16"-18 x 7/8"

Cup Pt

2шт.

19

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

20

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

1/2"ID x 7/8"OD x 0.049"

1шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

10шт.

22

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

6шт.

23

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

10шт.

24

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

112шт.

25

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

26

87033816

CLIP

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

112шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

30шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

30

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

31

100016

NUT,M10 x 1.5, Cl 8

36шт.

32

9706685

NUT,M12 x 1.75, Cl 8

12шт.

33

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

34

9706690

NUT,M8 x 1.25, Cl 8

112шт.

35

100038

NUT,M12 x 1.75, Cl 8

1шт.

36

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

37

64264

WASHER

1/2"

4шт.

38

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

39

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

13.5ID x 19OD x 68.3

2шт.

40

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

41

811-10080

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

2шт.

42

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

43

86978544

DRIVE SHAFT

See Fig 20.03A

1шт.

44

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

13/32"ID x 1-7/8"OD x 3/16"

2шт.

45

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

6шт.

46

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

12шт.

47

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

Выбрано товаров: 47
