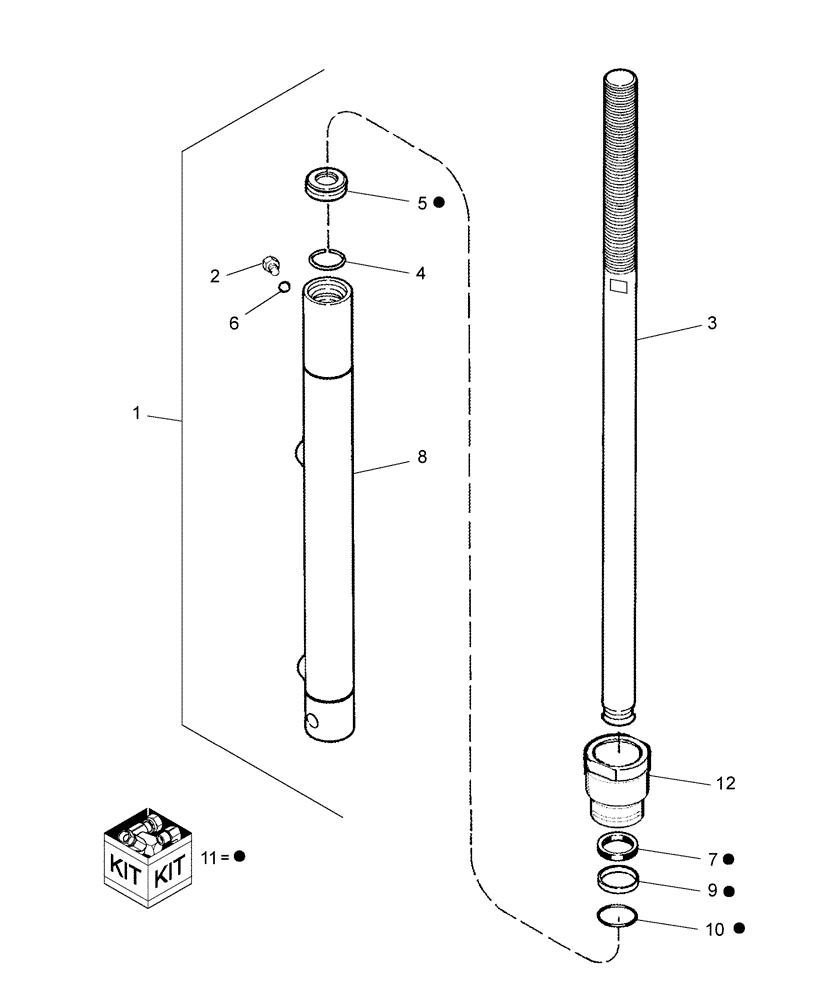

Запчасти Case IH 2020 (20.07C[3]) - REEL LIFT SLAVE CYLINDER, PIN CBJ021301 AND AFTER (35) - HYDRAULIC SYSTEMS

1

87502758

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 238.51mm Stroke

1-1/2" x 9-3/8"

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 6

1шт.

3

87396354

ROD

1шт.

4

87396356

RING

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

NS

NOT SERVICED

Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

87396352

SEAL KIT

Seals

1шт.

12

87396353

CYLINDER END CAP

Head

1шт.
