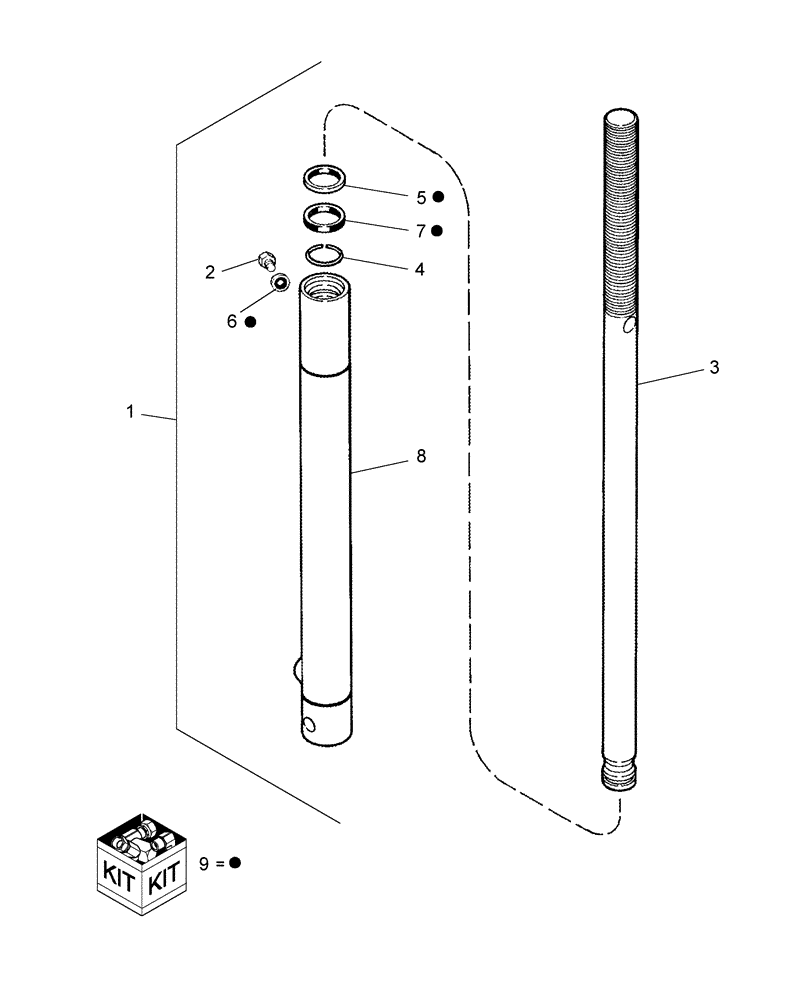

Запчасти Case IH 2020 (20.07C[2]) - REEL LIFT SLAVE CYLINDER, PIN CBJ020205 TO CBJ021300 (35) - HYDRAULIC SYSTEMS

1

87045528

HYDRAULIC CYLINDER

Slave, 1 x 9.38

1шт.

128726A2R

REMAN-HYD CYLINDER

2010, 2020, Both PIN CBJ020205 TO CBJ021300 (2/03-), Reman for New PN 87045528

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

463-1104

SCREW,Hex Hd, #10-24 x 1/4"

1шт.

3

128727A1

PISTON ROD

1шт.

4

145190C1

SNAP RING

1шт.

5

532773R1

WIPER SEAL

Rod

1шт.

6

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

Rubber Bonded

1шт.

7

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

532531R92

SEAL KIT

Seals

1шт.
