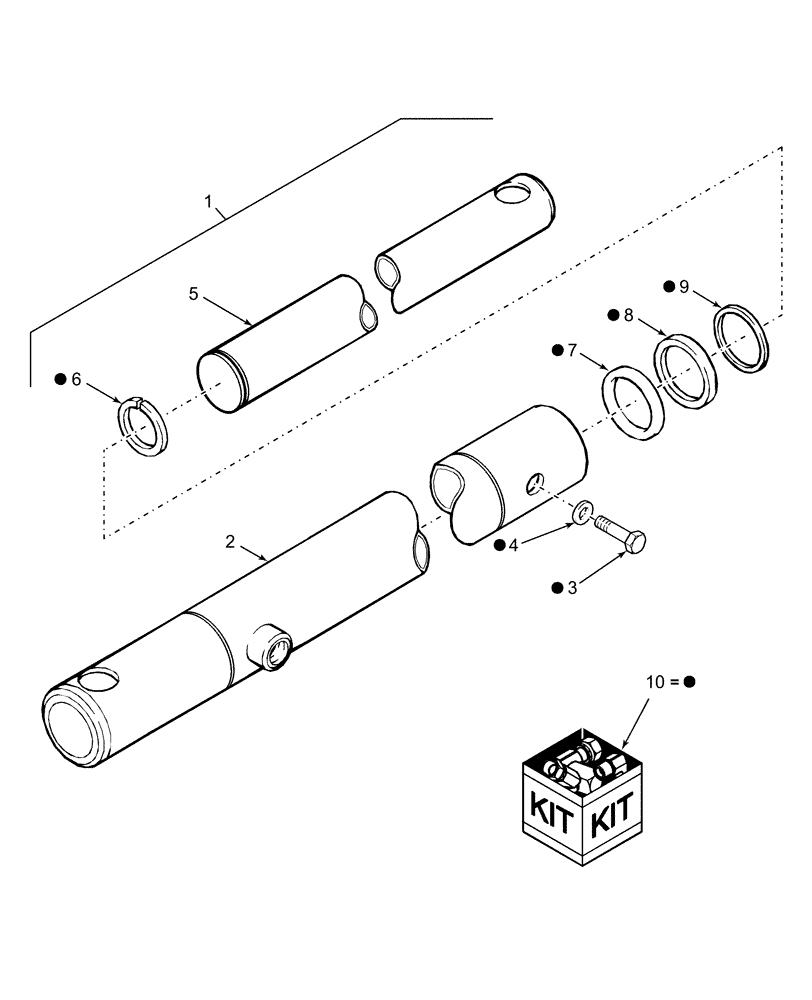

Запчасти Case IH 2020 (20.07C[1]) - REEL LIFT SLAVE CYLINDER, BPIN CBJ020205 [INCLUDES ALL HAJ PINS] (35) - HYDRAULIC SYSTEMS

1

86518813

HYDRAULIC CYLINDER,25.4mm Rod, 200.2mm Stroke

Slave

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

136207

SCREW,Hex Wshr Hd, #10 - 24 x 7/32"

1шт.

4

134381

SEALING WASHER

1шт.

5

134379

ROD

1шт.

6

129973

CIRCLIP

Ext, 1.000"

1шт.

7

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

8

129971

WASHER

Back-Up, 1.016" ID x 0.034" Thk

1шт.

9

121189

OIL SEAL

1шт.

10

136441

SEAL KIT

1шт.
