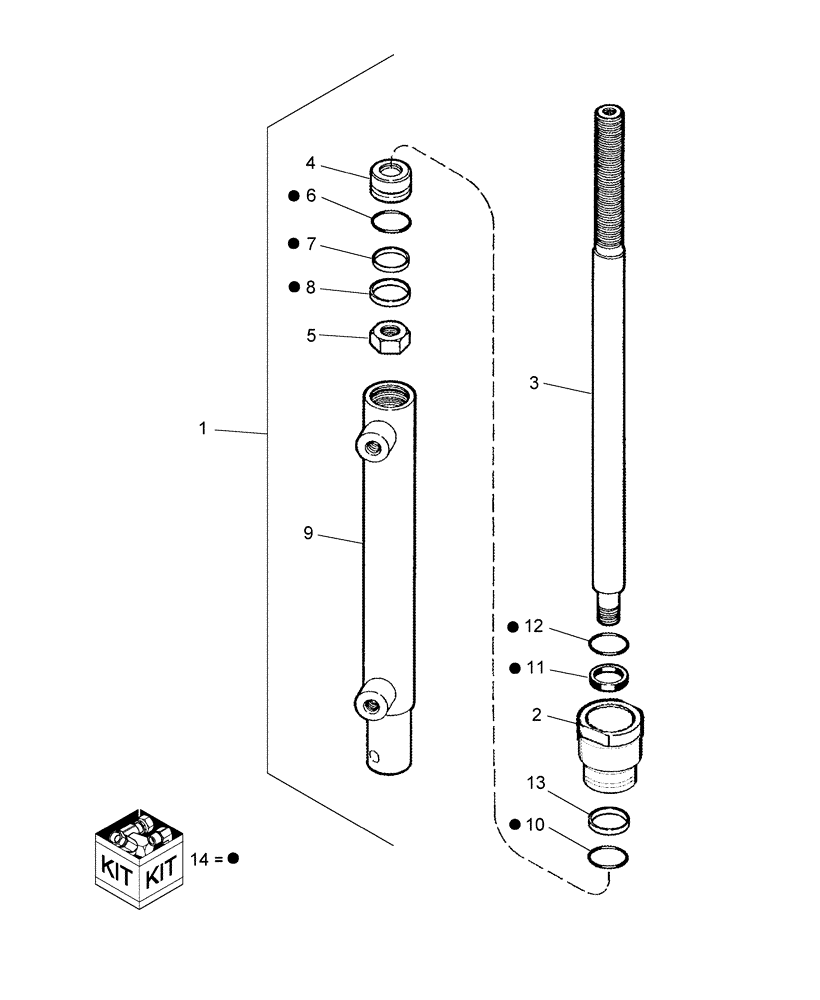

Запчасти Case IH 2020 (20.07B[3]) - REEL LIFT MASTER CYLINDER, PIN CBJ021301 AND AFTER (35) - HYDRAULIC SYSTEMS

1

87502759

HYDRAULIC CYLINDER,Double Acting, 28.7mm Rod, 238.51mm Stroke

1-1/2" x 9-3/8"

1шт.

2

87396348

CYLINDER END CAP

1шт.

3

87396350

ROD

1шт.

4

87396349

PISTON

1шт.

5

232-4618

LOCK NUT,1/2"-20, GC

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, PTFE

1шт.

8

NSS

NOT SOLD SEPARAT

Wear Ring, Nylon

1шт.

9

NS

NOT SERVICED

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper

1шт.

13

NSS

NOT SOLD SEPARAT

Washer, Backup

1шт.

14

87396352

SEAL KIT

Seals

1шт.
