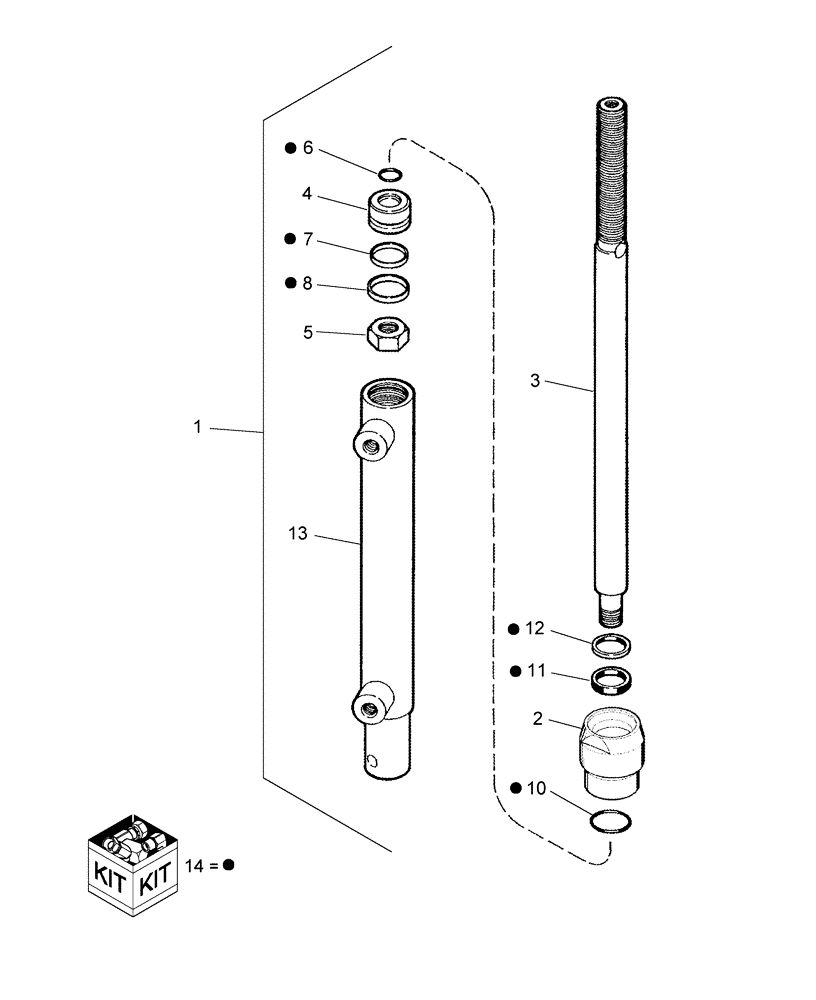

Запчасти Case IH 2020 (20.07B[2]) - REEL LIFT MASTER CYLINDER, CBJ020205 TO CBJ021300 (35) - HYDRAULIC SYSTEMS

1

87045527

HYDRAULIC CYLINDER

Master, 1.5 x 9.38

1шт.

128723A3R

REMAN-HYD CYLINDER

2010, 2020, Both 20 & 25 FT PIN CBJ020205 AND AFTER, 30 FT PIN CBJ020205 TO CBJ021301 (2/03-), Reman for New PN 87045527

1шт.

128723A3C

CORE-HYD CYLINDER

Return Number

1шт.

2

547384R2

CYLINDER HEAD

Front

1шт.

3

128724A1

PISTON ROD

1шт.

4

547333R3

PISTON

1шт.

5

548033R1

JAM NUT

Hex, Jam, 3/4-16

1шт.

6

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

7

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

8

547383R2

SEALING RING,35.41mm ID x 38.71mm OD x 3.17mm Thk

Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16, CL 6

1шт.

11

1272317C1

SEAL,28.7mm ID x 34.52mm OD x 4.52mm Thk

Rod

1шт.

12

564808R91

WIPER

Seal, Shaft

1шт.

13

547388R94

SEAL KIT

Seals

1шт.
